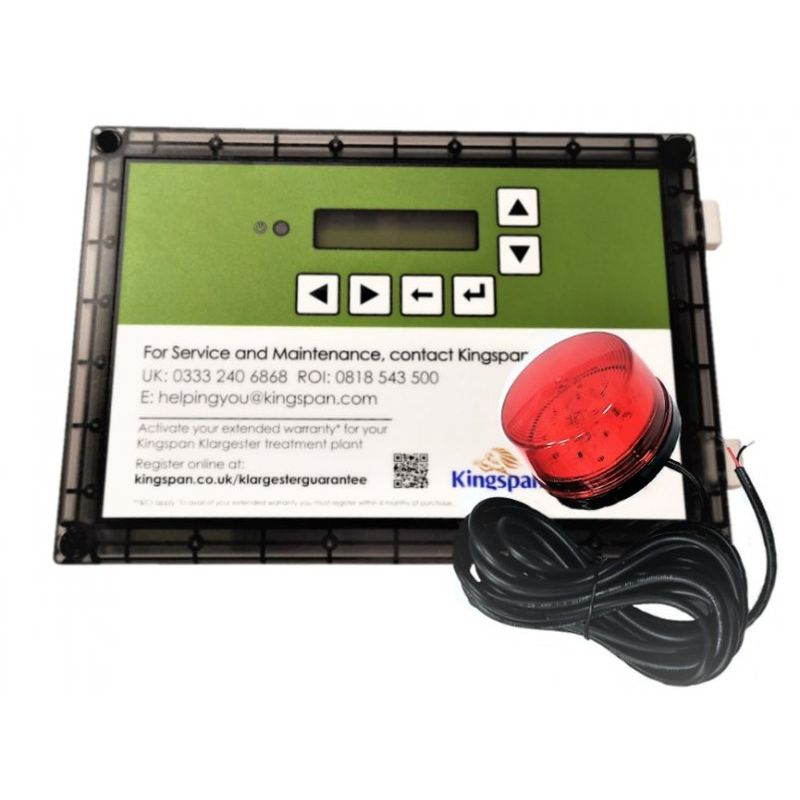

Treatment Tank Control Panel (Smart Range)
This New Style Klargester Control Panel for waste water tanks with digital display continuously monitors the internal timetables and operates the appropriate pump/motor outputs according to a timetable entry. The status is shown on the display. The current time continues to be updated internally by battery backup when the mains fail, and the control unit continues normally upon mains being restored.
- Dimensions: 255mm (W) x 180mm (H) x 88mm (D) Ingress Protection: IP65
- Operating temperature: -20°C … +50°C
- Power Source - 230VAC ±10% 50Hz
- Power Consumption (Unit Only) - 6.4W, 10.1VA, cos φ = 0.63
LED 6 Volt Beacon
- The Beacon provides an external visual indication which is used to indicate Failure & Service Reminders and may be included in the Power and Pressure Failure Detection System (PPFDS).
- The beacon is provided with a 5m cable which can be extended to 30m. As supplied
- The unit is protected against rain to IP65 and is supplied ready to mount on a suitable surface.
- This unit is designed to be simple to install and safe in operation. Any modification may adversely affect its weather resistance in operation. If in any doubt, please consult us for advice.
- This is a sealed unit and not serviceable.
- Flashes continuously on alarm when mains present
- 73mm (Diameter)
- 48mm (Height)
- 11.5mm (Base mounting plate height)
