Stuart Turner Mainsboost iBoost - F200-100-45 CAT5
Estimate delivery costs
Your postcode helps us show you accurate delivery costs before you add to basket. We use it only to calculate shipping rates — it is not stored or shared.

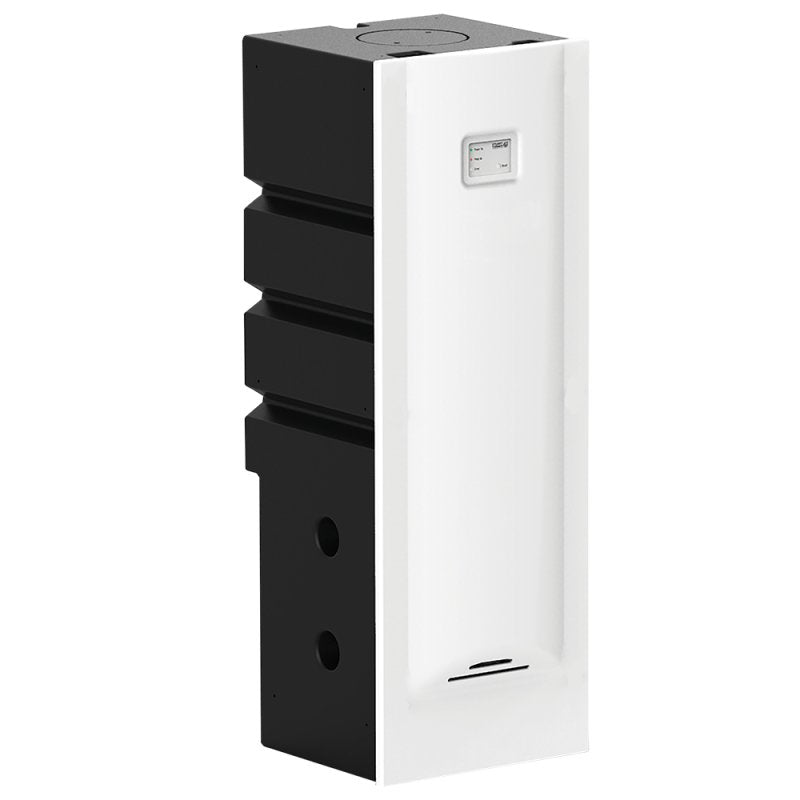

Mainsboost Flomate iBoost Home Booster set- F200-100-45 CAT5

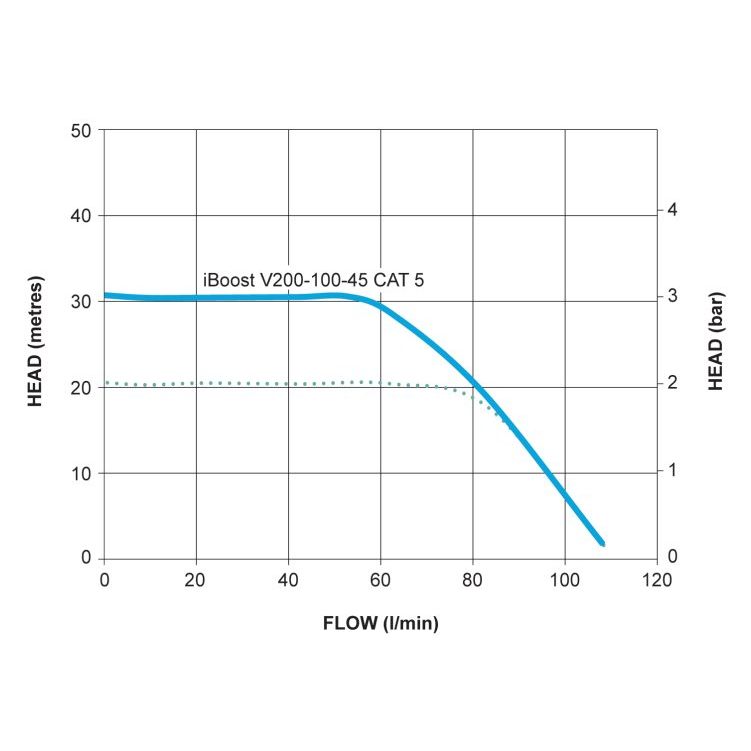

Mainsboost iBoost provides a boosted cold water supply of up to 100 litres per minute and up to 4.5 bar pressure, with a typical performance of 60 litres per minute at 3.0 bar pressure to inadequate flow rates and water pressure, offering a better solution..
Ideally suited to high occupancy properties with multiple bathrooms and water using appliances.
Combining a 200 litre cold water storage tank and a high performance, multistage pump to over come restricted water flow and insufficient pressure.
Simple to operate, the iBoost F200 sits neatly within any standard 600mm kitchen cupboard or alongside other household white appliances. Available with either fixed or variable speed pump controls and with the optional iBoost +200 extension tank, increasing the storage tank form 200 litres to 400 litres. Installation is simple for the iboost +200 extension tank; the kit supplied will allow you to connect the tank to th main iBoost unit.
All standard iBoost units are rated for CAT 3/4 fluids and are also available as a CAT 5 version making them suitable for use in high risk Category 5 fluid applications.
Features:
- 3 year warranty
- Type AB air gap
- Weir Overflow
- Compact, space saving design, fits within a 600mm cupboard
- Boosts cold water mains supply to 4.5 bar
- 200 litre water storage capacity
- Quiet operation
- WRAS Approved Product
- Fixed speed pump control system
- High flow, low noise equilibrium fill valve
- Control panel and status indicators
- Dry run protection
Applications
Boosting cold mains water pressure and flow in laboratories, stables, kennels, waste bin stores and wash down stations.
| Manufacturer | Stuart Turner |
| Manufacturer's Warranty | 3 years* |
| Pump Type | Multistage Centrifugal |
| Water Tank Nominal Size | 220 Litres |
| Water Tank Usable Capacity |
200 Litres |
| Dimensions (wiIXO-DTh x depth x height) | 536 x 529 x 1504 mm |
| Weight (including fittings) | 55 kg |
| Power Cable Length | 3 m (pre-wired) |
| Max. Head - Closed Valve (metres) | 45 m |
| Max. Flow (Litres per minute) | 100 L/min |
| Max. ambient Air Temp. (continuous) | 30 °C |
| Power Supply | 230 V a.c. / 1 / 50 Hz |
| Motor Type | Induction motor (auto-reset thermal trip) |
| Duty Rating | Continuous (S1) @ 5 l/min and above |
