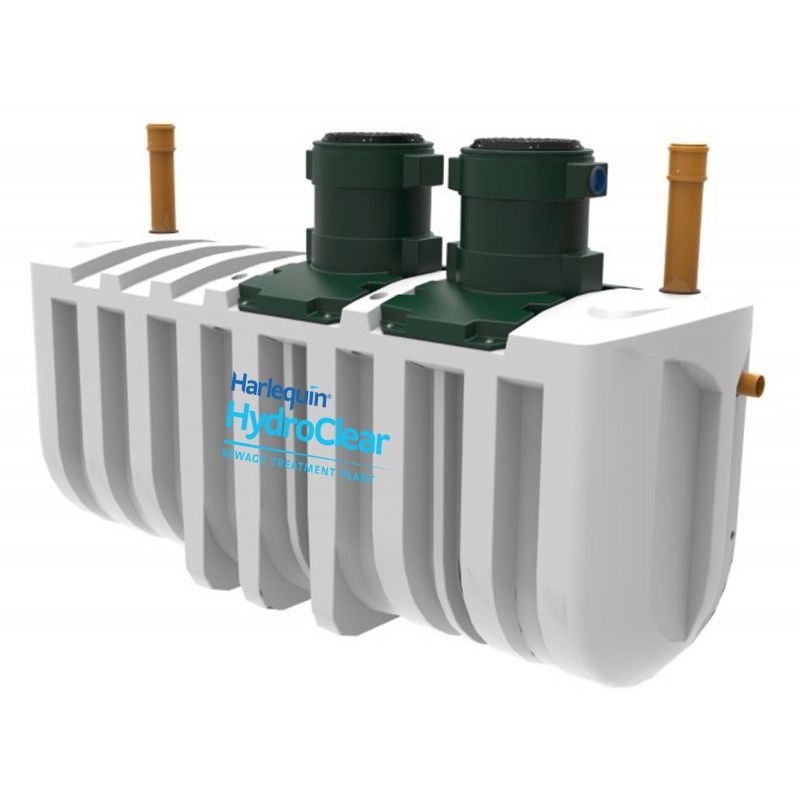

12 Person Harlequin CAP12 Sewage Treatment Plant
The Harlequin CAP12 is a compact sewage treatment plant designed specifically for larger domestic or small commercial installations of up to 12 people.
It is a continuous aeration plant which operates using a unique bio-media system and delivers a pollutant removal level of 96.2% whilst also combatting common problems associated with small packaged domestic plants.

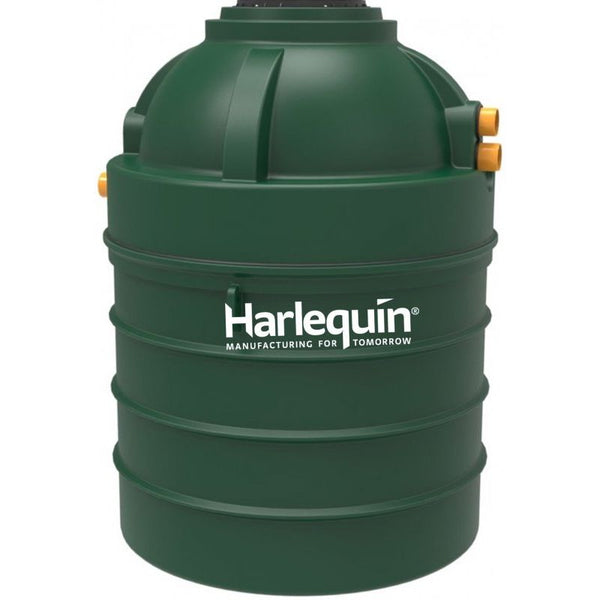

The Harlequin continuous aeration plant range is available in 6 / 9 / 12 Person options.
Standard Features:
-
Moulded from durable medium density polyethylene material
-
110 mm inlet and outlet connections
-
110 mm services duct
-
Integrated lifting eyes for ease of handling and installation
-
Fully secured 600x450mm pedestrian duty, flush fitting manhole cover complies with statutory regulations
-
Above ground air blower housing delivers more reliable and efficient operation, and allows easy access for maintenance
-

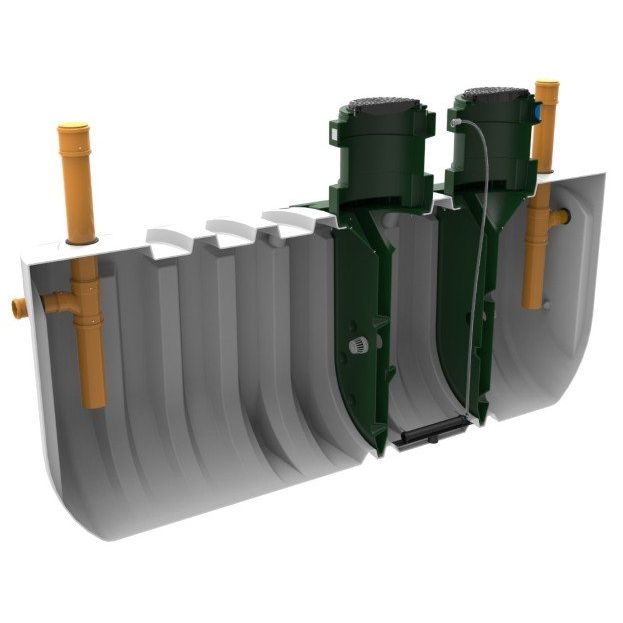

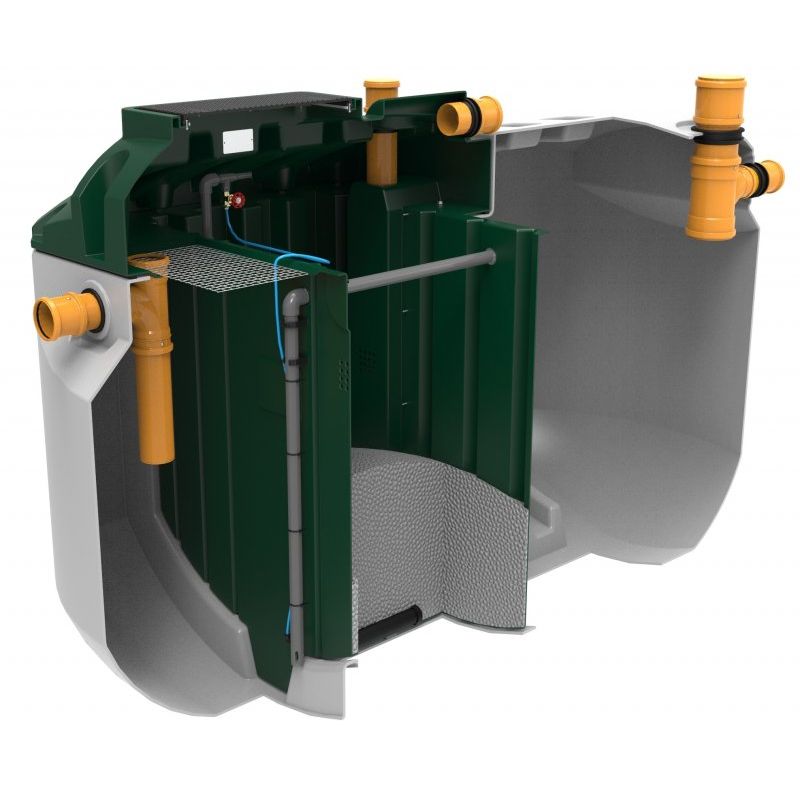

Easy access to the bubble diffuser within the tank
-
A MBBR system - there is no fixed media, eliminating blockages
-
Virtually silent operation
-
Compact size and lightweight reduces installation costs
-
Mechanically reliable with no moving parts or electrics within the tank
-
Certified to EN12566-3
Optional Equipment:
-
Air blower function alarm
-
Pumped outlet
-
300 mm manhole riser(s). Max 3 risers (800 mm) on a gravity tank or 2 risers (550 mm) on a pumped outlet+ Maximum invert level 2 m. Use 1200 mm concrete rings to achieve inverts below max. number of risers.
Shipping:
Deliveries will be made by articulated lorry, and it is the customer's responsibility to ensure safe and adequate access plus off loading. Off loading of heavy items should be made by fork lift or similar heavy lifting equipment.
If there is any doubt about delivery access or off loading, please contact us to discuss the options available.
| Material | HDPE / Polyethylene |
|---|---|
| Tank Use | Below Ground |
