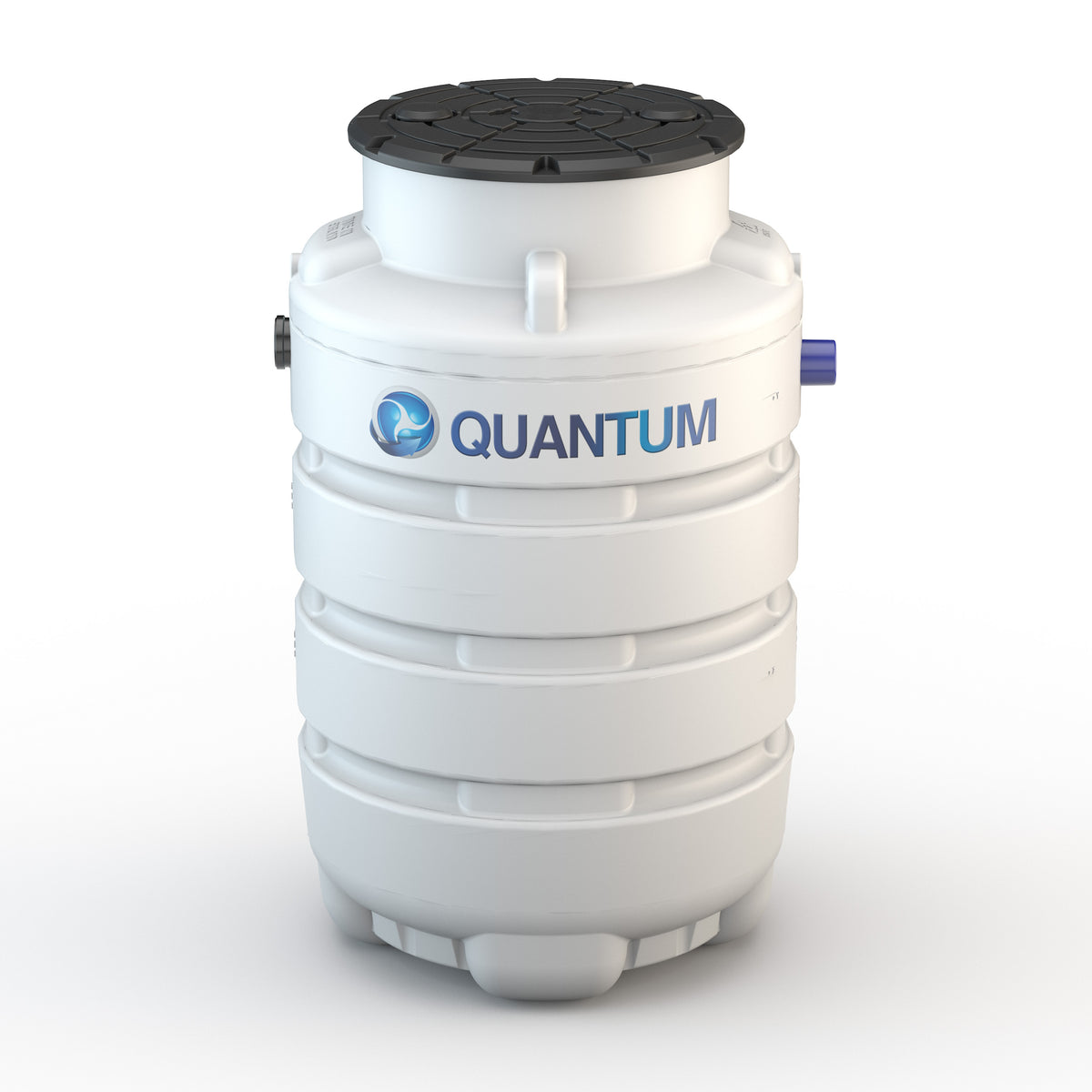

WTE Quantum 6-Person Sewage Treatment Plant
Estimate delivery costs
Your postcode helps us show you accurate delivery costs before you add to basket. We use it only to calculate shipping rates — it is not stored or shared.
WTE Quantum 6-Person Sewage Treatment Plant
The Quantum 6 is the smallest model in the range and is designed for properties with a design population of up to 6 people.
Its compact 1,215mm diameter tank makes it particularly useful where available installation space is restricted. With a standard installation depth of approximately 2 metres and an optional extension turret available for deeper inlet levels, the Quantum 6 offers considerable flexibility for domestic drainage projects.

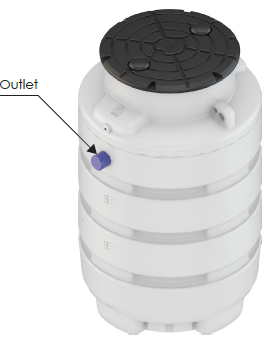

The system can be specified with either a gravity discharge or an internal pumped outlet, allowing it to accommodate different site drainage arrangements.
Key Benefits
- Ultra-Compact tank design
- Advanced Activated Sludge Process (ASP)
- Suitable for many domestic off-mains applications
- Gravity or Pumped outlet options
- Automatic Floating Sludge Return (FSR)
- No primary settlement tank
- Low electrical consumption
- Quiet operation
- Designed to minimise odour
- One-piece moulded HDPE tank construction
- No internal mechanical equipment
- Adjustable treatment process
- Optional extension turret for deeper inlet levels
- 20-year tank warranty
- Tested and certified to BS EN 12566-3
- Manufactured in the UK
|
Specification |
Quantum 6 |
| Design Population | 6 persons |
| Flow (l) | 900 litres/day |
| Organic Load | 360g BOD5/day |
| Ammonium-Nitrogen NH4-N | 48g /day |
| Diameter | 1,215 mm |
| Standard Installation Depth | 2,000 mm |
| Maximum Installation Depth with extension | 2,450 mm |
| Standard Inlet Depth | 550 mm |
| Maximum inlet invert with extension | 1,000 mm |
| Standard outlet invert | 600 mm |
| Maximum outlet invert with extension | 1,050 mm |
| Tank material | HDPE |
| Outlet options | Gravity / Pumped |
| Warranty | 20 Years |
| Standard gravity blower | Approx. 40W |
| Diameter | Ø 1215 mm |
|---|---|
| Material | MDPE |
| Tank Use | Sewage |
| Application | Underground |
