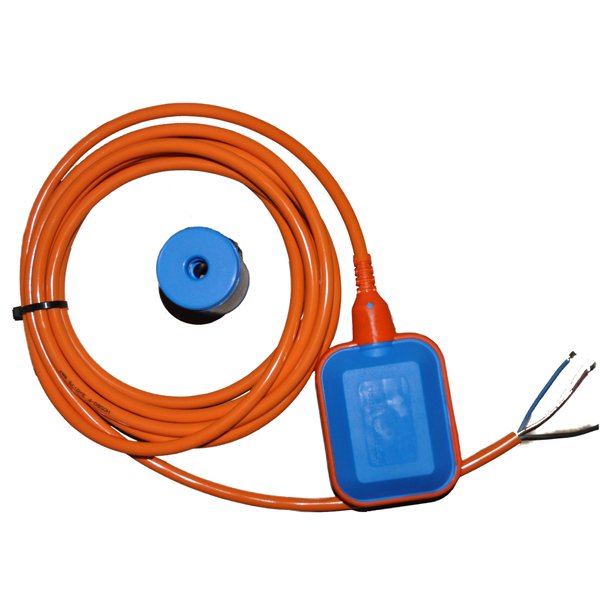

LR06 Paddle Style Float
The LR06 is a robust submersible float switch specifically engineered for oily environments and prolonged exposure to diesel oil. Offering superior chemical resistance compared to the LR03, it provides reliable long-term operation in challenging conditions.
To withstand the aggressive effects of diesel oils, the LR06 is constructed with a polyurethane (PUR) cable and a polypropylene float chamber. Unlike PVC or CPE, which degrade when exposed to hydrocarbons, PUR and polypropylene maintain their integrity, ensuring durability and dependable performance.
For easy identification in the field, the LR06 features a distinctive orange band and matching orange cable, preventing confusion with other float switches of similar size and design. Simple to install and designed for trouble-free service, the LR06 is ideally suited to fuel storage, oily water separators, and other dieselcontaminated liquid applications.
Specification
|
Contact Rating |
240Vac 15A non-inductive 240Vac 10A inductive [1.3 Horsepower] 125Vdc 0.6A 240Vdc 0.3A |
|
Frequency |
50/60Hz |
|
Cable |
05RN-F 3x0.75mm2 |
|
Temperature Min Max |
0°C [Frozen] 70°C |
|
Max Submerged Length |
20M |
|
Compressive Strength |
482 kN/m2 |
|
Operational Specific Gravities Min Max |
0.9 1.3 |
|
Conformance |
CE LVD RoHS EN 60730-1 EN IEC 60730-2-15 |
