Stuart Turner Pulse Cast Iron Single 32/60-180
Estimate delivery costs
Your postcode helps us show you accurate delivery costs before you add to basket. We use it only to calculate shipping rates — it is not stored or shared.
Stuart Turner Pulse Cast Iron Single 32/60-180
Electronically controlled high-efficiency circulators for heating, air-conditioning, cooling and sanitary water.
Stuart Pulse Circulators are used for the transfer of liquid medium within systems for hot water heating, air-conditioning and ventilation.
These single head variable speed circulators are designed to constantly monitor and regulate pressure and flow and adjust according to the set operating mode.
Features:
- Automatic, proportional pressure, constant pressure and constant speed operating modes
- Automatic night operation mode
- ECM permanent magnet technology
- Automatic venting cycle
- Robust cast iron housing
- Continuously rated
- Carbon bearings
- 180 mm fitted length
- G2 union connections
- ErP compliant
- Built-in over-current, temperature and over-voltage protection

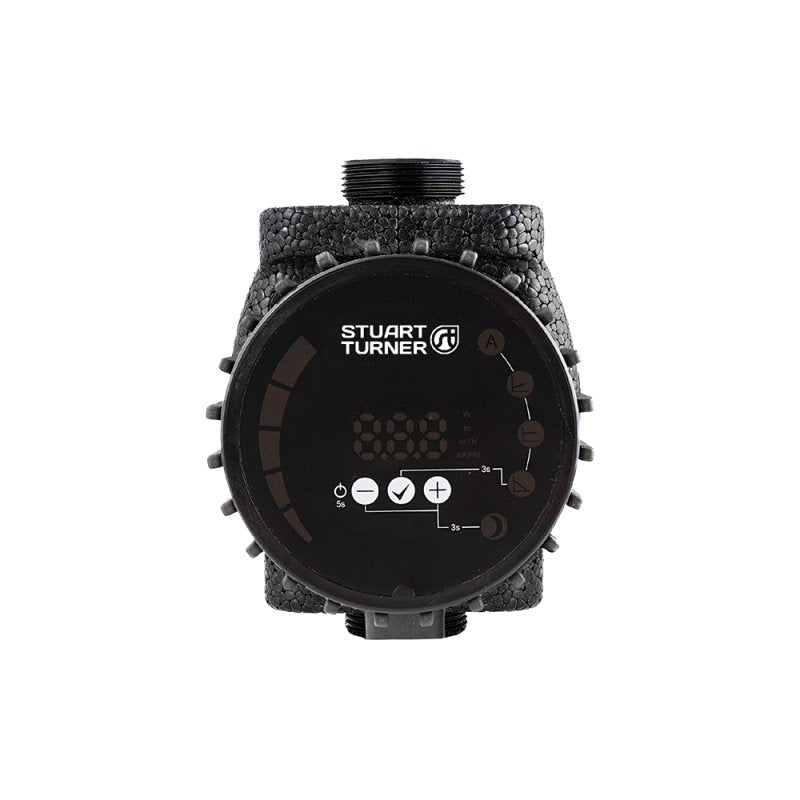

- LED display control panel
- 2-year warranty
Digital operating modes
Automatic Mode
The pump automatically sets the operating pressure, depending on the hydraulic system. By doing so, the pump finds its optimal operating position
Proportional Pressure
The pump maintains the pressure with relation to the current flow. The pressure is equal to the set pressure. In between, the pressure changes linearly relative to the flow.
Constant Pressure
The pump maintains the set pressure, from 0 flow to maximum power, where the pressure begins to drop.
Constant Speed
The pump operates and maintains the chosen speed
Night Mode
When operating in night mode, the pump automatically switches between the current mode and night mode. Switching occurs based on the temperature of the medium. If the pump sense a drop in temperature of the medium (15-20° C - in a 2-hour time frame) the pump switches to night mode. When the temperature of the medium rises, it will revert to previous operating modes.
| Manufacturer | Stuart Turner |
| Manufacturer's Warranty | 2 years* |
| Pump Type | Centrifugal |
| Dimensions (l x w x h) | 242 x 117 x 180 mm |
| Weight (including fittings) | 3.75 kg |
| Max. Head - Closed Valve (metres) | 6.2 m |
| Fitting Length | 180 mm |
| Connections | G 2 |
| Maxi Working Pressure | 10 Bar |
| Max. ambient Air Temp. (continuous) | 40 °C |
| Min. Water Temperature | -10 °C |
| Max. Water Temperature | 110 °C |
| Power Supply | 230 V a.c. / 1 / 50 Hz |
| Duty Rating | Continuous (S1) |
