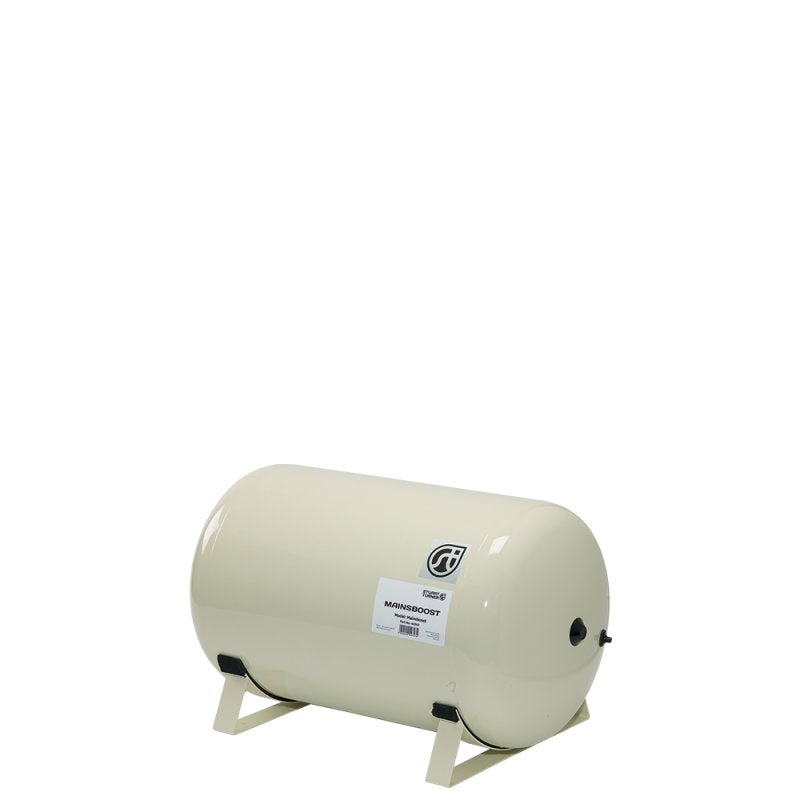

Mainsboost MB 200SH-1-22 - Mains Water Boosting System Horizontal Vessel
Mainsboost products are a flexible solution assisting with unvented systems (mains pressure) where the incoming mains pressure to the property is low or intermittent. Ideally suited for boosting cold water mains supply to residential, commercial and industrial properties.
The MB 200SH-1-22 is designed where height restrictions prevent a vertical vessel being fitted. For unvented cylinders and combination boilers where the mains pressure is greater than 2.0 bar, but the water flow is inadequate for the requirements.
Installed directly onto the incoming water supply and under mains pressure, the vessel fills with water, creating a state of pressure equilibrium within the chamber (as it's surrounded by positive pre-charged air pressure sealed within the vessel, balancing them out). The Mainsboost system now has a volume of pressurised water ready for distribution throughout the property.
If greater demand is required, Mainsboost can be supplied with multiple vessel options.
Key Features
- Up to 80 litres/minute per vessel
- 1 x 200 litre pressure vessel
- Minimal maintenance
- Silent operation
- WRAS approved product
- Consumes no electricity
- Robust construction
- Long life butyl diaphragm
- Integral strainer
- Comprehensive ULK installation kit included
- Patent protected
- 5-year warranty
Options:-
- One, two or three vessel systems
- Mainsboost Charger pump for applications where the incoming mains water pressure is less than 2 bar (static pressure)
- Thermal Insulating jackets
| No. of Vessels | One |
| Vessel Usable Capacity (Litres) | 110 |
| Dimensions (H x W x D) (mm) | 558 x 540 x 026 |
| Empty Weight (kg) inc. fittings | 39 |
| Filled Weight (kg) | 149 |
| Max Weight (kg) | 239 |
| ULK Kit (mm) | 22 |
| WRAS Approved | Yes |
| Mounting | Floor |
| Min / Max Operating Temperature | Min 4 °C / Max 35 °C |
| Warranty | 5 years |
