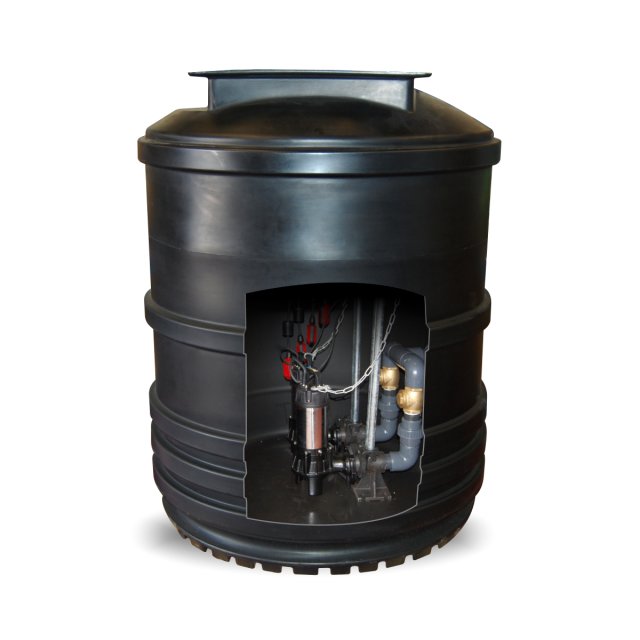

Sewage Pumping Station Twin Rigged 2600 Litre

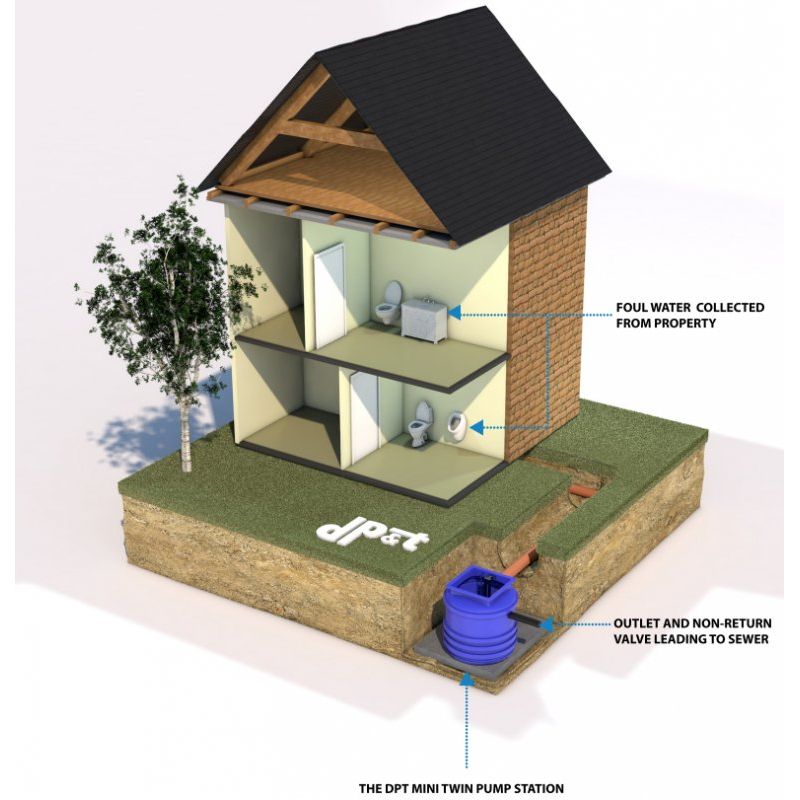

Twin Rigged - 2600- Package Sewage Pumping Station. A packaged pump station is used when gravity drainage on site cannot be achieved. The waste from the site flows into an underground storage chamber, where it is then pumped to the main sewer. Packaged pump stations can be used for both foul water (sewage) and surface water applications. Our packaged pump stations are designed to have a 24-hour storage capacity and are manufactured to BSEN752-6 standards. The Twin Rigged 2600 Pump Station is suitable for a domestic sewage pumping station for use in areas where gravity flow is not available. It can be used for various drainage applications, with the system also used for the transfer of sewage or wastewater, all specially designed for easy installation. The Twin rigged 2600 is a compact sewage pump station suitable for small to large houses and also commercial applications. The Twin Rigged 2600 is particularly suitable when water or sewage is collected lower than the main sewer or a septic tank system.
All you need is supplied to you within the package, so you will just need to supply the pipework to and from the station, plus any fittings. A high-water alarm is supplied as standard. The Pumping Station comes with a submersible pump with 50 mm solid handling for peace of mind. Our range of pumping stations is of a superior design and quality, to meet with BSEN75.6 requirements.
Pump
- Cast Iron/ Stainless Steel Construction
- 50 mm (2") Solids Handling Capacity
- Coolant Filled Motor
- Mechanical Seal
- 10 M cable
- Max 6 M Lift
- Max Flow 5 L/Sec
- Float Switch as Standard
Controls
- Twin Control Panel, comes with auto change over and high level alarm
- 4 x 10 M Float Controls
- 1 x Float Bracket

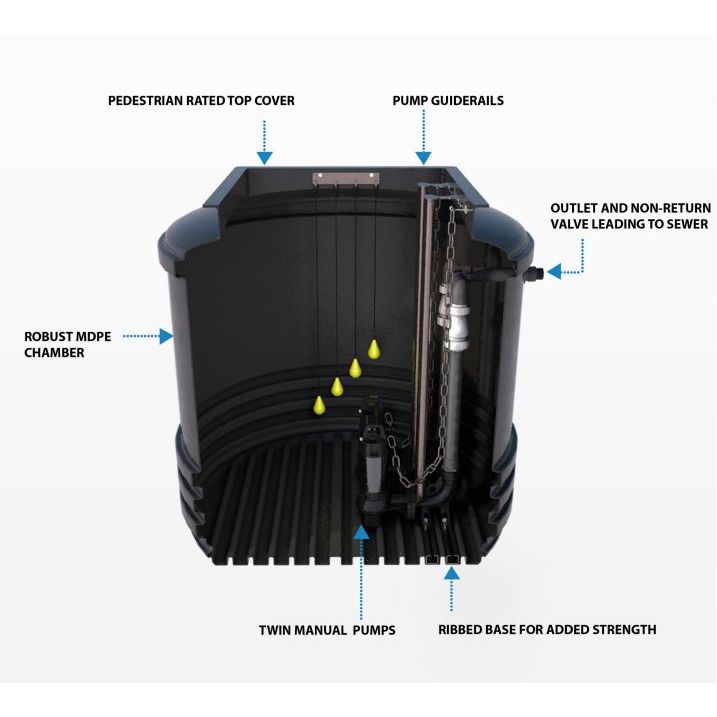

Tank
- Polyethylene tank
- Dim: 1.5 M² x 1.5 M D
- Capacity 2600L
- 1 x 110 mm / 160 mm Inlet Seal to allow Inlet to be Drilled on site
- 40 mm Cable Duct
- 2" Internal Pipe Work
- 2" Non-Return Valve
- 2" Quick release Coupling
- 2" Cable Duct
- Special Audible/ Visual High Level Alarm Control Box Available
Delivery
All our Pumping Stations are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.
If you require assistance with offloading, we may be able to offer a tail lift (lowers the tank to the ground) or HIAB (lorry with a mounted crane to winch the tank off the delivery vehicle). Please contact us if this is required for delivery.
| Material | HDPE / Polyethylene |
|---|
| Capacity | 2600 Litres |
| Diameter | 1500 mm |
| Height | 1500 mm |
| Access Cover Size | 900 x 900 mm |
| Access Cover Rating | Pedestrian |
| 50 mm - 6 m | 50 mm - 10 m | Macerator | 65mm - 8 m | 80 mm - 10 m | |
| Impeller Type | Vortex | Vortex | Macerator | Vortex | Vortex |
| Power Supply | 230 - 1ph - 50 hz | ||||
| Rated Power | 0.37 kW | 0.75 kW | 1.2 kW | 1.5 kW | 1.5 kW |
| Rated Current | 1.9 A | 4.0 A | 9.2 A | 12.0 A | 11.2 A |
| Max Head (metres) | 6 m | 10 m | 16 m | 8 m | 10 m |
| Max Flow Rate (litres per sec) | 5.5 l/s | 7.9 l/s | 1.8 l/s | 10.0 l/s | 14.0 l/s |
| Cable Length | 10 m | 10 m | 10 m | 10 m | 10 m |
| Free Passage | 50 mm | 50mm | Macerator | 65 mm | 85 mm |
Pump Station Commissioning
- Full system inspection
- Levels inspection
- Man way check for obstruction
- Mount control panel (if not in place)
- Check correct load to panel
- Check correct cable size
- Check correct power supply
- Set the overloads
- Lower pumps via guide rail onto stools using an A-frame if required
- Pull pump cables through ducting
- Pull float cables through ducting
- Set floats to correct operating position
- Wire cables into control panel
- Fill system with water
- Full test of pump station
- Sign-off and certification
- Warranty and documentation provided
