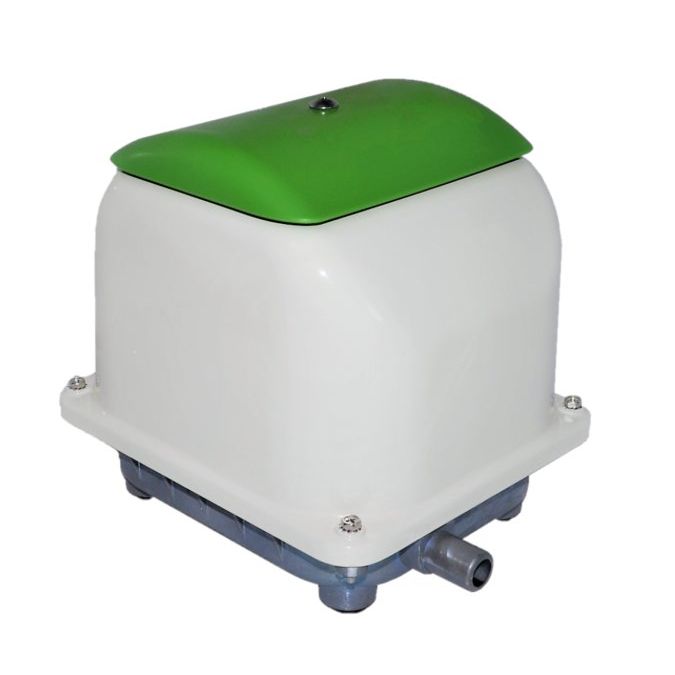

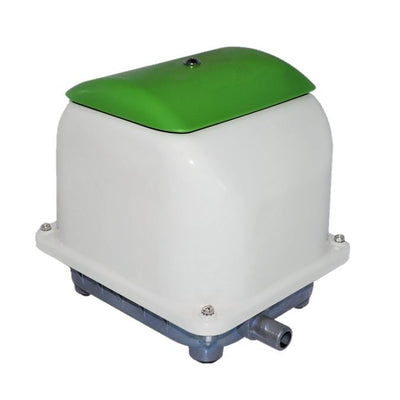

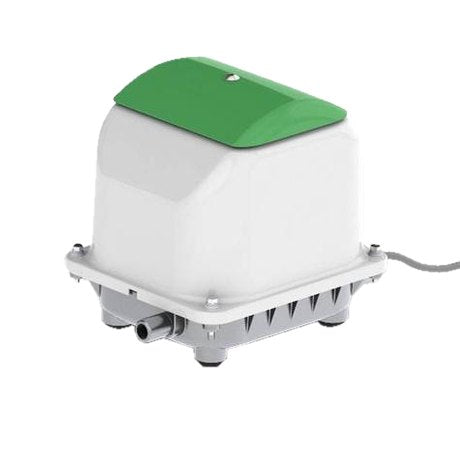

SECOH JDK-S-60 Single Series Blower Complete with Cable
The SECOH JDK-S-60 is a linear-diaphragm (electromagnetic oscillation) air blower, designed as a modern, energy-efficient replacement for older EL/LP/HP-60 models.
It is engineered for continuous duty aeration service in wastewater treatment, sewage systems, and other applications where dependable, oil-free air supply is needed.
The JDK models are a direct replacement of the Secoh EL series of blower. They feature up to 30% less energy consumption, as well as being more compact than the EL series.
This model is to be used in the Biosafe/ CLP6 unit, located on the inside of the unit.
| Features | Benefits |
| Energy-efficient design |
Consumes less power (up to ~30% less than comparable older EL Series) thanks to reduced Internal friction and optimised electromagnetic drive |
| Compact, Lightweight construction |
Smaller footprint and lower weight (6.5 kg) make it easier to install or retrofit in constrained plant enclosures |
| Oil-Free Airflow |
No oil lubrication is needed, so the delivered air is clean and free of oil vapour or contaminants - critical for water/ biozones |
| Low noise & low vibration |
The unit features a built-in muffler chamber and vibration isolation between motor and pump parts to reduce acoustic disturbance |
| Pulsation-Free flow |
Specially shaped pump chambers and muffling result in a smoother, steadier airflow, better suited for fine diffuser systems |
| Robust, weather - resistant housing |
The blower is rated as rainproof / weatherproof (but should be sheltered from direct sun, rain, snow) |
| Modular Serviceability |
Standard spare kits (diaphragms, valve boxes, filters) are available and easy to replace, minimising downtime |
APPLICATIONS
- Water treatment
- Ponds & Domestic applications
- Medical and health technology
- Aeration of fuel cell stacks
- Aqua-air-lights and design pillars
Technical:
- Max Flow: 60 Litres per Minute
- Optimal Operating Pressure: 0.20 Bar
- Connector Size: 19mm
- Sound level (at 1.5m): 38dB
- Voltage: 230 VAC

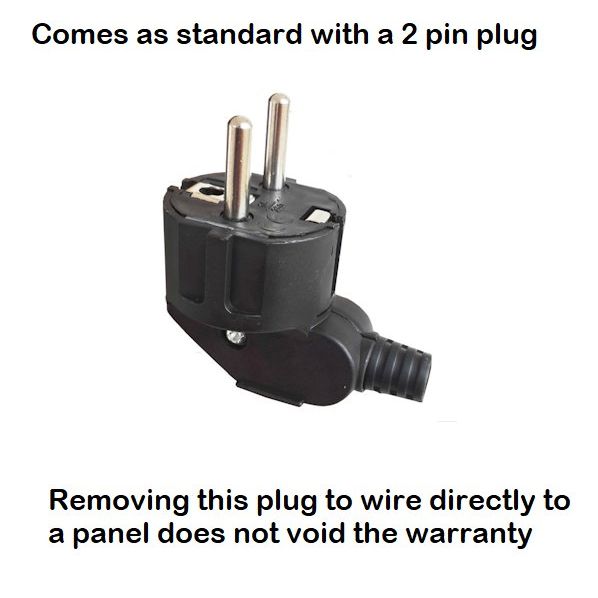

Please note: The Secoh S-series air blowers come with a standard EU plug, these can be removed without effecting warranty
TANK SERVICING
Why does my system need serviced?
- It’s important that your sewage treatment plant or septic tank system is emptied and maintained regularly to continue operating optimally.
- Poorly performing systems can cause serious health hazards as well as local pollution risks.
- Recent Building Regulations (Part H 2010 – BS EN 12566) state that regular emptying and maintenance of small sewage treatment plants must be undertaken by the homeowner at least once per year, or as per the manufacturer’s guidelines.
- As a homeowner, you must also ensure that your system remains in good order and replace it when necessary.
- We do recommend that you keep a detailed log of when your system is inspected, maintained, emptied or serviced as you may need these details in future.
- Our treatment plant service includes a full check to ensure everything is in perfect working order.
- Our team can be reached on helpingyou@kingspan.com or 033 240 6868
- Current lead time is 7–10 days for service visit
Postcode exclusions apply to AB, BT, DD, EH, FK, G, GY, HS, IM, IV, JE, KA, KW, KY, ML, PA20+ & PH, PO30+, ZE
| Dimensions (W×L×H) | 177 × 254 × 176 mm |
|---|---|
| Empty Weight | 5 kg |
