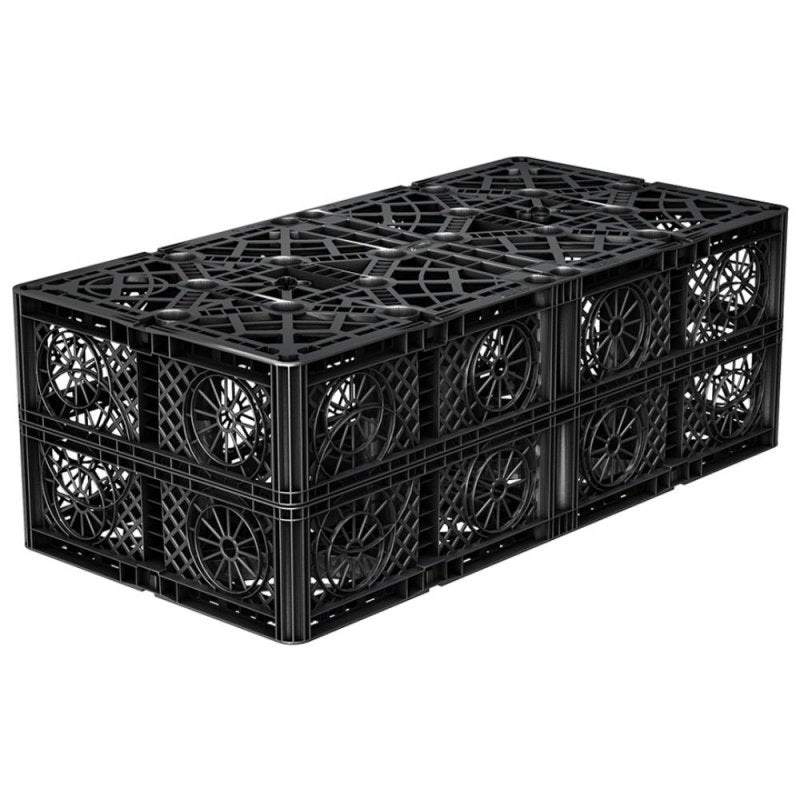

Rain Bloc Stormwater Attenuation & Soakaway Crates (Pack of 10)

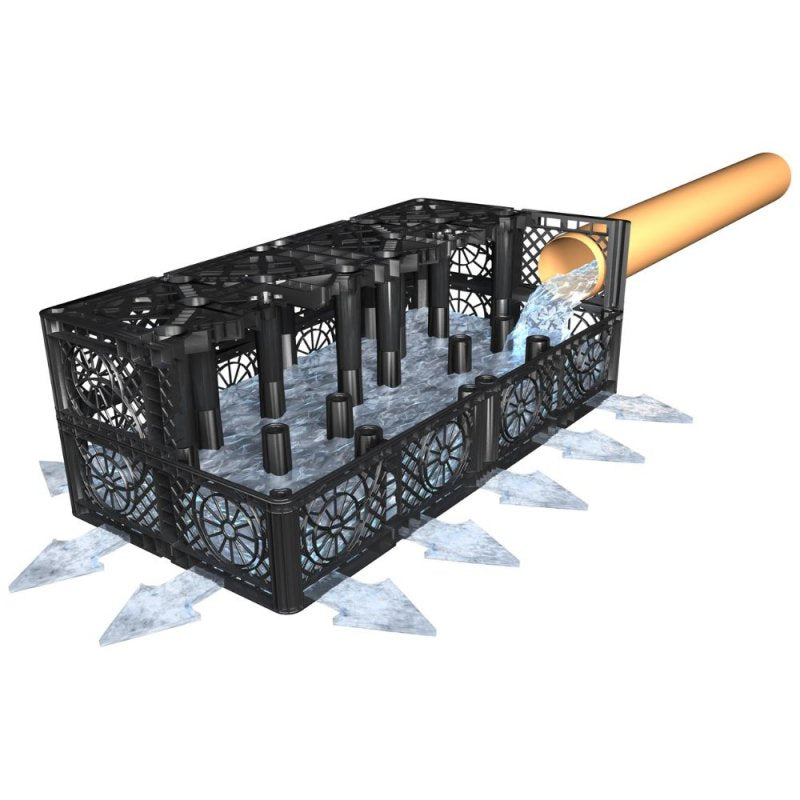

The Rain Bloc compact 300 soakaway crate is engineered to be used in both infiltration and attenuation systems. With its capacity of up to 60 tonnes, these heavy load crates, can be used under parking lots, driveways, and other areas with frequent heavy vehicle traffic, providing versatile and reliable stormwater management solutions. During intense rainfall, the StormCrates collect water in the void created, gradually releasing it into the drainage network or groundwater table over an extended duration. This progressive drainage approach helps to relieve pressure on standard surface water drainage systems, aligning seamlessly with the Sustainable Urban Drainage Systems (SUDS) initiative endorsed by the Environmental Agency.

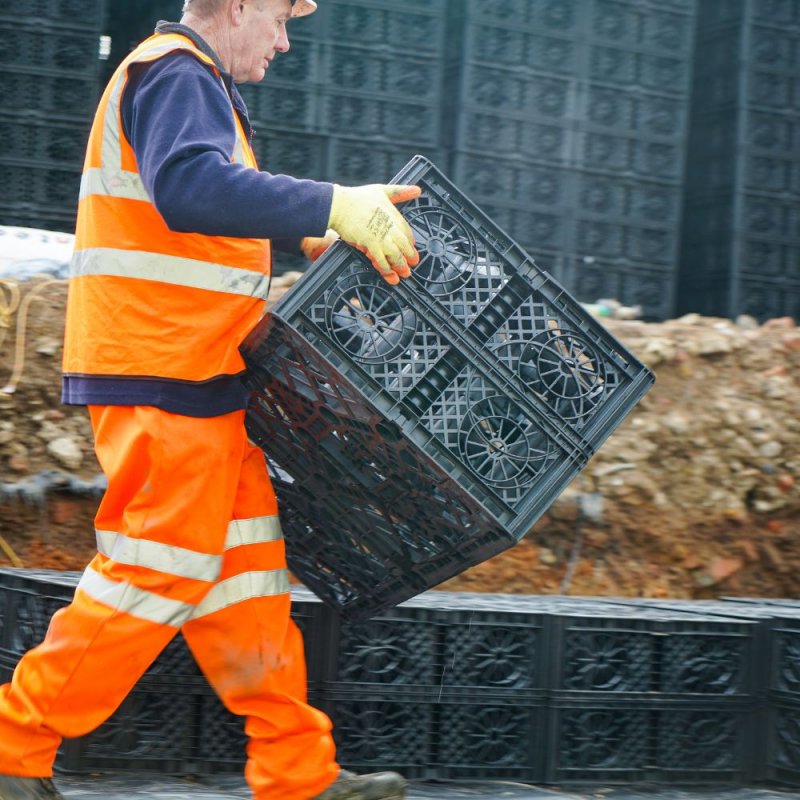

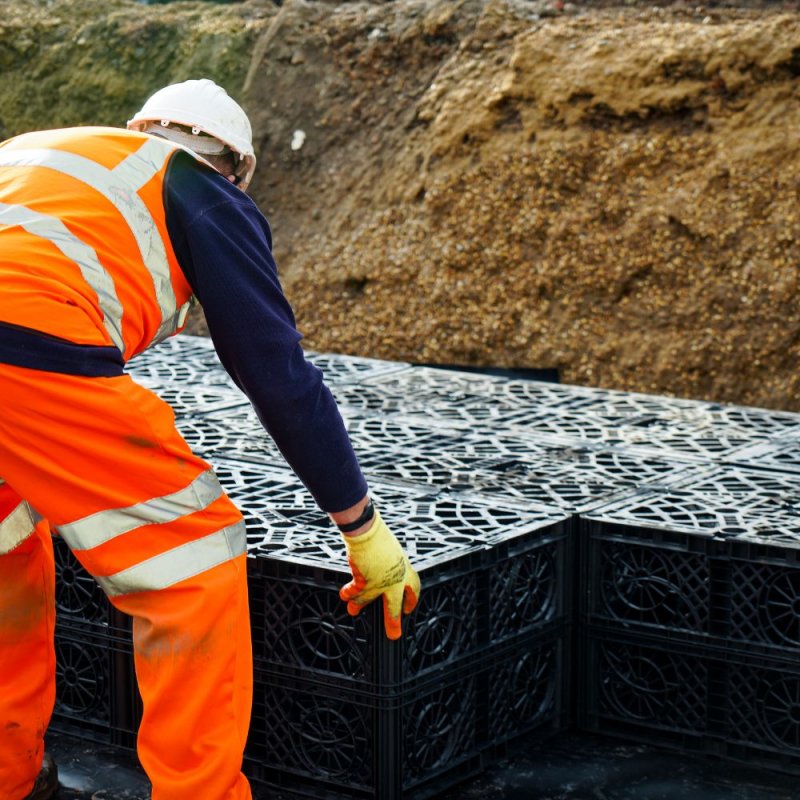

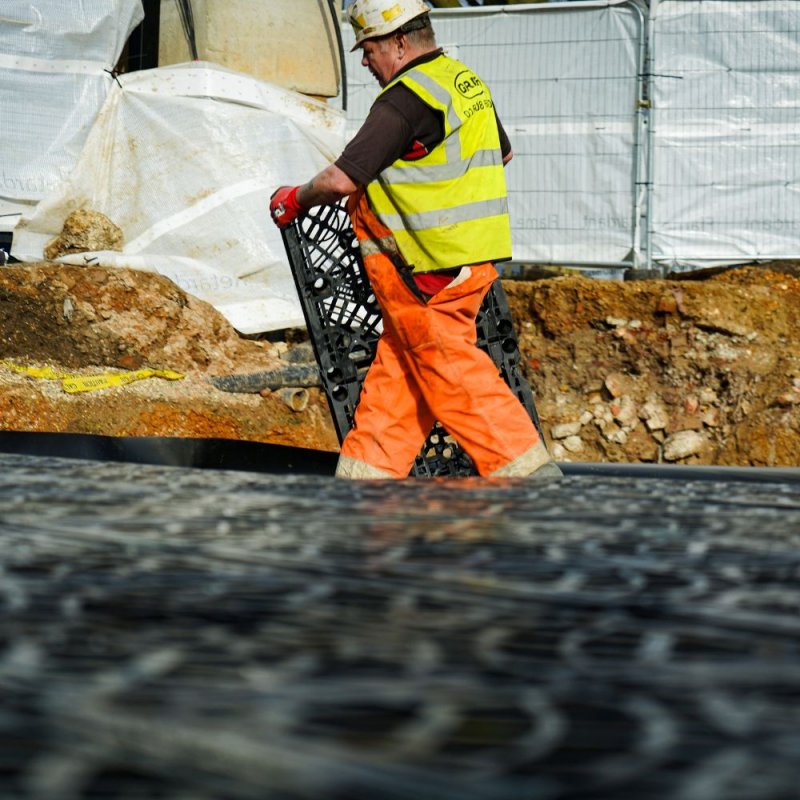

The Rain Bloc can be installed in rows or block form and stackable up to 10 crates high. Crates should be installed to a maximum installation depth of 5 metres (with never more than 3 metres of top cover).
With its high void ration, it allows for greater water retention and effective management, reducing the risk of overflow and flooding during heavy rainfall, thereby safeguarding properties and infrastructure.
Features
- The flexibility of the Rain Bloc makes it ideal for use in both domestic and commercial projects.
- Crates are 1200mm (L) x 600mm (W) x 420mm (D) per crate and manufactured from 100% Polypropylene
- Cellular Rainwater Attenuation Module
- Economical and space-efficient
- Comes with four clips for connecting if necessary (2 x lateral and 2 x vertical)
- Flexible connection options are available with cutouts to fit the necessary pipe as needed
- Lightweight and easy to install
- 3.3 StormCrates per 1m³ storage capacity
- Supplied in packs of 10 crates
- No need for specialist heavy equipment
- High load-bearing capacity with a vertical loading of 60 tonnes
- 95% void ratio - giving a 285-litre capacity and compact footprint
- 300 Litres volume per crate (net 285)
Applications
- Attenuation tank
- Soakaway Crate Systems
- Residential areas
- Heavy Commercial zones
- Heavy vehicle traffic areas
| Capacity | 3000 litres |
|---|---|
| Diameter | Ø 1224 mm |
| Height | 1265 mm |
| Empty Weight | 219 kg |
| Product Code (per crate) | 360050 |
| Colour | Black |
| Dimensions (mm) | 1200 L x 600 W x 420 D |
| Weight | 17 Kg |
| Gross Volume (per Crate) | 300 Litres |
| Net Volume (per Crate) | 285 Litres |
| Void Ratio | 95 % |
| Inspectable | No |
| Vertical Loading | 45 Tonnes/ m² (450kN/ m²) |
| Lateral Loading | 15 Tonnes/ m² (150kN/ m²) |
| BBA Approved | No |
