MiniBREAK MB1-38M-S
Estimate delivery costs
Your postcode helps us show you accurate delivery costs before you add to basket. We use it only to calculate shipping rates — it is not stored or shared.

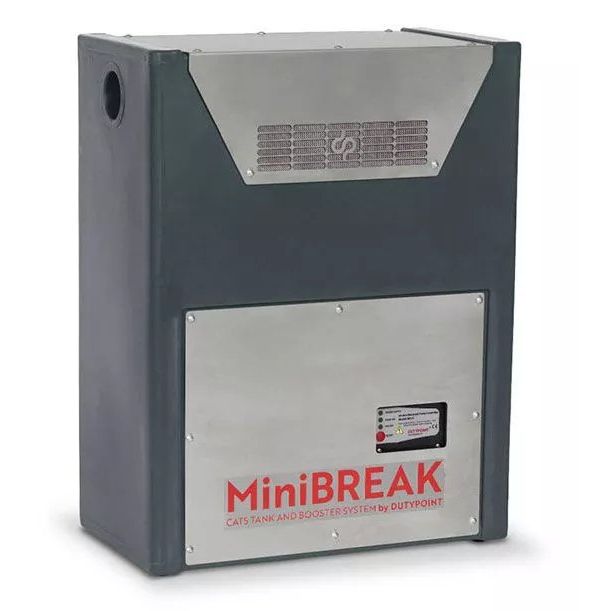

The DutyPoint MiniBREAK MB1-38M-S 10-005829-000
The MiniBREAK single-pump packaged tank and booster set has been designed from the ground up to be compact while providing maximum fluid Category 5 backflow protection via an ‘AB’ air gap to ensure water safety is paramount. This package complies with the Water Supply (Water Fittings) Regulations 1999 and is supplied as a complete all pre-assembled in an enclosed LDPE and Stainless Steel cabinet, suitable for either wall or floor mounting. For the MiniBREAK MB1-38M-FP with frost protection, see MB1-38M-FP.
Pump control is managed by a proven and intuitive controller that starts the pump when pressure falls and stops it when flow cease, all whilst ensuring the control unit also provides low-water protection to prevent dry running.

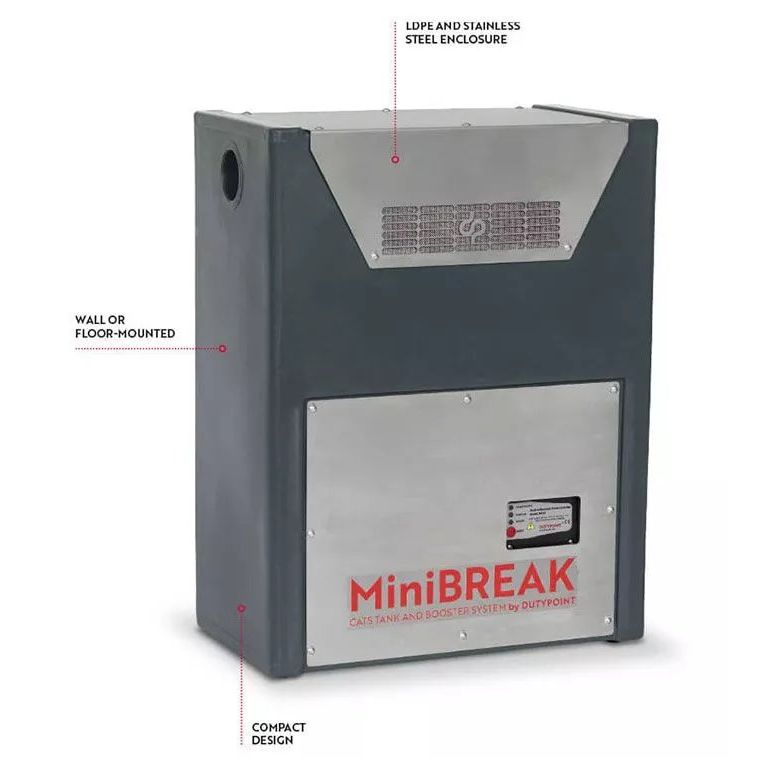

Product overview:
- Volt-free contact for pump running
- IP65-rated controller
- LDPE and Stainless Steel Housing
- 18 Litre Break tank
- Low-water protection device
- Wall or floor mountable
- Single phase
- Compact design
- WRAS Approved
Applications:
- Wash down in bin stores
- Dentist’s rinsing equipment
- Laboratory water supplies
- Single hosepipe supplies
Plus any application where cat 5 protection is required - mortuaries, abattoirs, zoos, healthcare premises, etc...
Technical Specifications :
| SKU | 10-005829-000 |
|---|---|
| In Stock | In Stock |
| Brand | Dutypoint |
| Manufacturer's Part Number | 10-005829-000 |
| Model | MiniBREAK MB1-38M-S |
| Power Supply | 240V 1~ 50Hz |
| kW Rating | 0.37 |

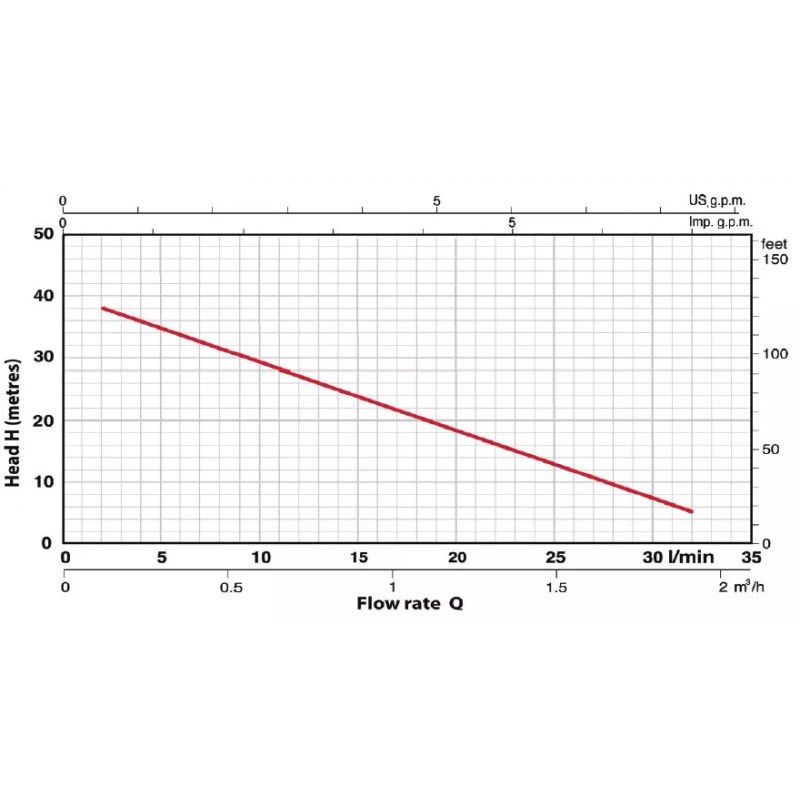

| Max Flow Rate | 0.5 l/sec |
| Minimum Liquid Temperature | 2°C |
| Maximum Liquid Temperature | 23° |
| Inlet Connection | 1/2'' Threaded |
| Outlet Connection | 1/2'' Threaded |
| Capacity | 23 litres |
|---|---|

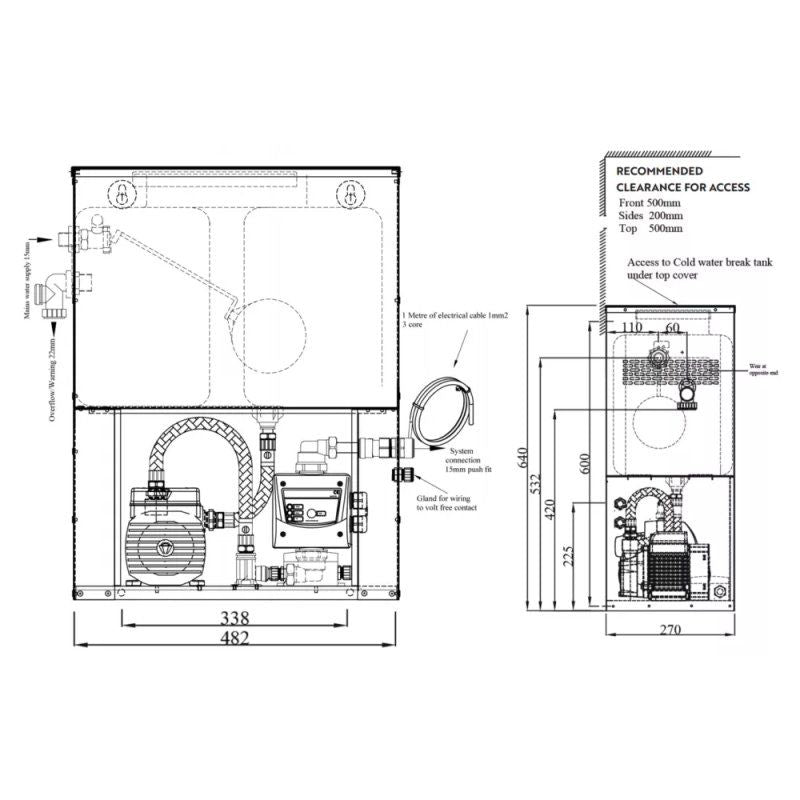

| Dimensions (W×L×H) | 556 × 280 × 660 mm |
| Empty Weight | 35 kg |
