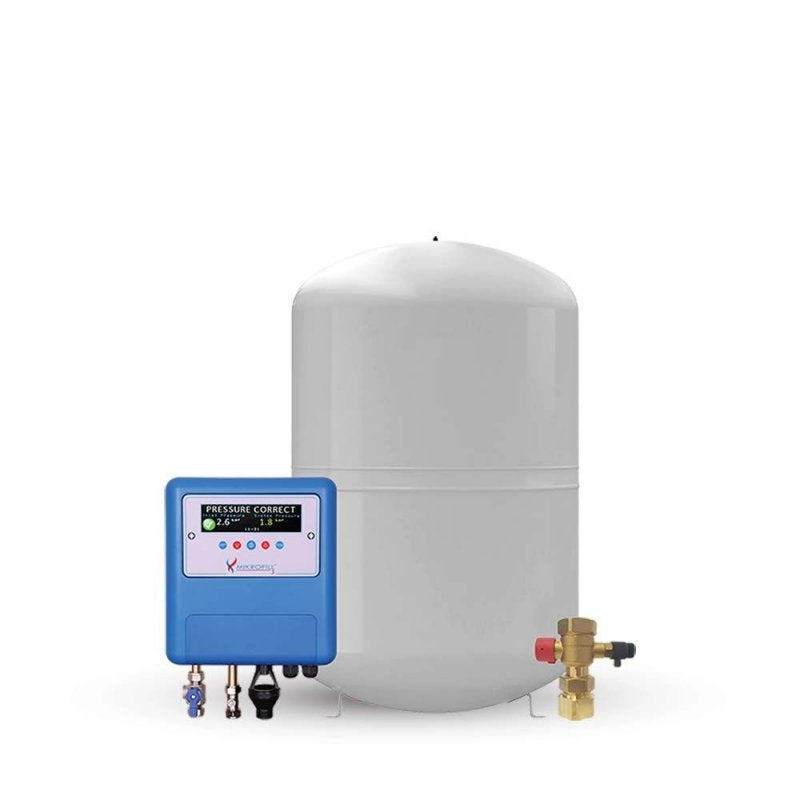

Mikrofill 35 Pressurisation Set with 35 Litre vessel and Service Valve
Estimate delivery costs
Your postcode helps us show you accurate delivery costs before you add to basket. We use it only to calculate shipping rates — it is not stored or shared.
Mikrofill 35 Includes Mikrofill 3 PU Unit- 1x 35 Litre 3 Bar Vessels-Service Valve & Factory Pre-Commissioning
Mikrofill is a system that efficiently fills a water system to an optimal pressure level to achieve the best flow. The Mikrofill is designed to be connected directly to a building's incoming mains/boosted water supply and fill a heating or chilled water system without the use of a pump.
Key Features
- 97% more Energy efficient than some pump type units
- Integral fluid risk category 4 backflow prevention - No RPZ valve required
- Fills any LPHW/CHW system from empty - Connects directly to the mains/boosted water supply
- Wall mounted unit only 270 mm high x 250 mm wide - Compact enough to fit in the smallest of plant rooms
- Consumes 10 watts on standby and 30 watts fully operational per hour - 97% more energy efficient than some pump type units
- Fill volume indicator - Aids water treatment calculation
- Large colour screen display - Clear and concise instruction
- Pre - commissioned packages available - No on-site commissioning required when sold as a package
- WRAS Approved Product
Benefits
- No RPZ valve required
- Automatically monitors system and controls system pressure
- Connects directly to the mains water supply
- Provides early warning of system leakage and aids water treatment calculation
- Flexible Installation
- Clear status indication and intuitive set up
- No on-site commissioning required
Delivery
All our Pressurisation Units are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.
If you require any specific requirements regarding delivery, please call us before order is placed, where we will try and accommodate this facility for you.
| Capacity | 35 litres |
|---|
| General | |
| Approvals / Conformity Certification | WRAS Approved Product (1212069) UKCA, CE |
| Warranty | 2 Years |
| Connections | |
| Cold Water Inlet | 15 mm Compression |
| System Outlet | 15 mm Compression |
| Drain (Via Tundish) | 3/4'' BSP |
| Maximum Inlet Pressure | 5 Bar |
| Maximum Cold Fill Pressure | 4.7 Bar |
| Nominal Flow Rate | 14 l/ min |
| Dimensions | |
| Height x Width x Depth (mm) | 270 x 250 x 112 |
| Dry Weight (kg) | 5 |
| General | |
| Capacity (L) | 35 |
| Diameter (mm) | 376 |
| Height (mm) | 466 |
| Inlet | 3/4'' |
| Inlet height From floor (mm) | 130 |
| Weight (kg) | 5.6 |
| Performance | |
| Operating Pressure - Max | 3 Bar |
| Operating Temperature - Max | 70 °C |
