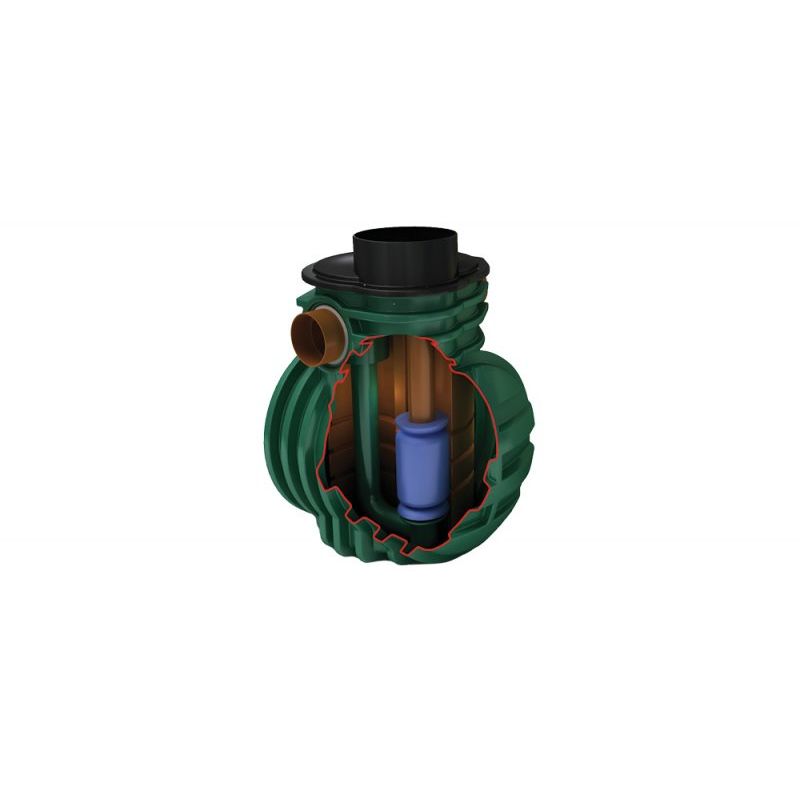

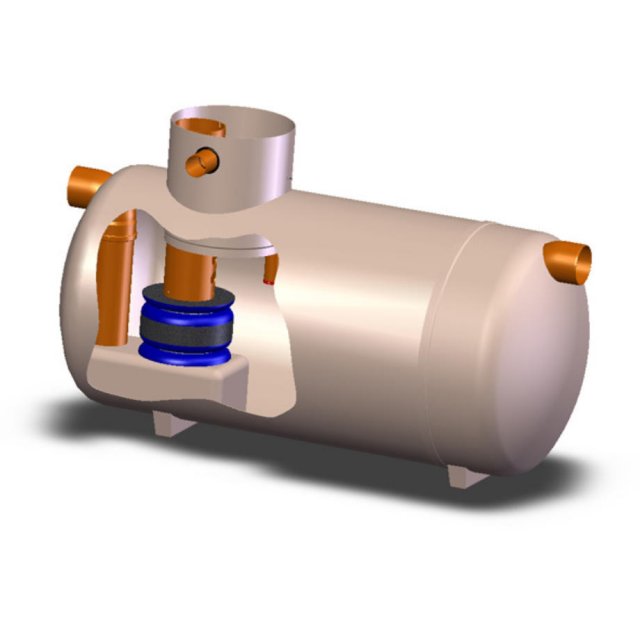

Klargester NSFP003 Full Retention Separator for 170M² drainage area
The Klargester range of full retention separators are suitable for use in car parks, roadways, fuel distribution depots, vehicle workshops and forecourts.
Full retention separators treat the full flow that can be delivered by the drainage system. This is normally equivalent to the flow generated by the rainfall intensity of 65mm/hr. On larger sites, some short term flooding may be acceptable means of limiting the flow rate and hence the size of full retention systems.
Full Retention Separator Features
- Designed for easy installation, saving time and money
- Certified to EN858 - 1 and PPG3 for complete peace of mind
- Oil alarm probe tube available (required by EN858-1)
- Fitted inlet/ outlet connections
- Vent points within necks
- Maintenance from ground level
- PE and GRP model construction - high strength and durability
- CE - Marked
Applications
Full retention separators are used in high risk spillage areas such as:
- Fuel Distribution depots
- Vehicle Workshops
- scrapyards
NSFP003 Specifications
| Model Reference: | NSFP003 |
| Material: | Polyethylene Chamber Construction |
| Flow (l/s): | 3 |
| Drainage Area (m2) PPG-3 (0.018): | 170 |
| Storage Capacity (L) Silt: | 300 |
| Storage Capacity (L) Oil: | 30 |
| Length (mm): | 1700 |
| Diameter (mm): | 1350 |
| Manhole Cover Dimensions (mm): | 600 |
| Base Inlet Invert (mm): | 1410 |
| Base Outlet Invert (mm): | 1335 |
| Min Inlet Invert (mm): | 550 |
| Standard Pipework Diameter (mm): | 160 |
Available with Smart Commissioning
Standard commissioning as scope of works, inc supplied and fitted (at point of commissioning) Kingspan Smartserv Pro GSM telemetry alarm for complete peace of mind.
Smartserv alerts both Kingspan and designated contacts. Includes 3 years Kingspan monitoring free of charge.*
*Kingspan monitoring is for alert only.
Service/maintenance packages are available at separate cost on request.
Delivery
Kingspan Klargester Full Retention Separators are delivered on a Flat bed Arctic lorry, however they require offloading by the customer. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.
If you require assistance with offloading, HIAB (lorry with a mounted crane to winch the tank off the delivery vehicle) delivery is available at an additional cost. Please contact us if this is required for delivery.
| Diameter | Ø 1350 mm |
|---|---|
| Empty Weight | 180 kg |
| Material | HDPE / Polyethylene |
To specify a nominal size full retention separator, the following information is required:
- The calculated flow rate for the drainage area served. our designs are based on the assumption that any interconnecting pipework fitted elsewhere on site does not impede flow into or out of the separator and that the influent is not pumped.
- The required discharge standard. This will decide which class is required.
- The drain invert inlet depth
- Pipework type, size and orientation
Benefits of having your Kingspan Klargester product commissioned:
- Reassurance that your system's mechanical and electrical components are in good working order
- A warranty period that only starts when your water system is commissioned, not when it leaves the factory (terms and conditions apply)
- Trouble-free operation of your system from the start
Find out more about what's included in the commissioning of your Clearwater pump station and arrange Commissioning, read Kingspan's dedicated guide to Commissioning today.
The checks below will be carried out by a Kingspan Service Engineer and will only be checked if the unit has been installed in line with the provided installation guidelines.
- Unit is installed flat and level with safe working area around the perimeter
- All incoming and outgoing pipework has been connected
- The control panel has been mounted
- Permanent electrical supply has been fitted to the panel (extension leads or generator supplies will not be acceptable)
The following will then be carried out by an Authorised Service Engineer:
- Check the system is installed to manufacturer's instruction
- Fit floats in tank and set the levels
- Pull float and pump cables through the ducts using drawstring provided
- Connect pump and float cables to the control panel using appropriate glands (the panel must be within 2 m of the chamber or select “enhanced commissioning”)
- Check float cable operation and terminate (stop, start, standby, alarm)
- Check pump rotation
- Run the pumps via the float switches to ensure correct operation and discharge
- Test high level alarm and beacon (if applicable)
- Leave on Auto for future use
Please note, Kingspan Commissioning covers UK mainland and certain postcode areas only. Please speak to our Team for expert advice on commissioning.
How often should my separator be serviced?
Kingspan’s service and maintenance plans have been developed using our knowledge of a range of separators and in accordance with the Environmental Agency Pollution Prevention Guidelines and EN858-2.
Avoid flooding and fines with cost-effective separator service plans from Kingspan Service. By regularly servicing your separators, you can reduce the pollution risk on your site. To find out more, click here
