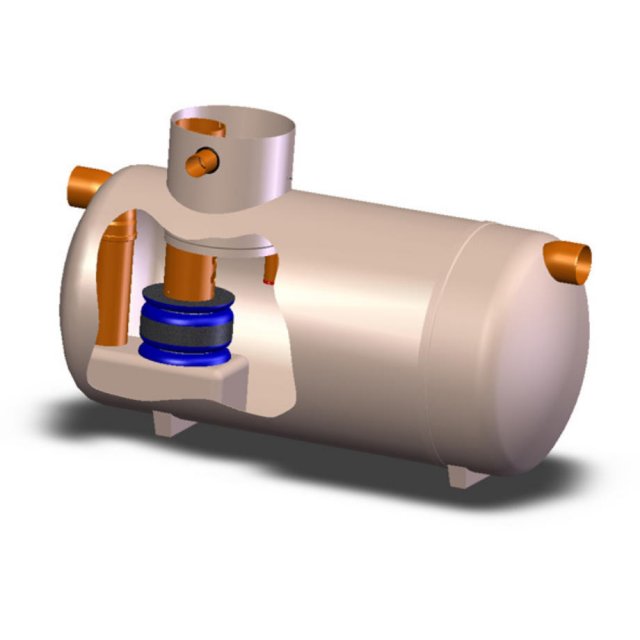

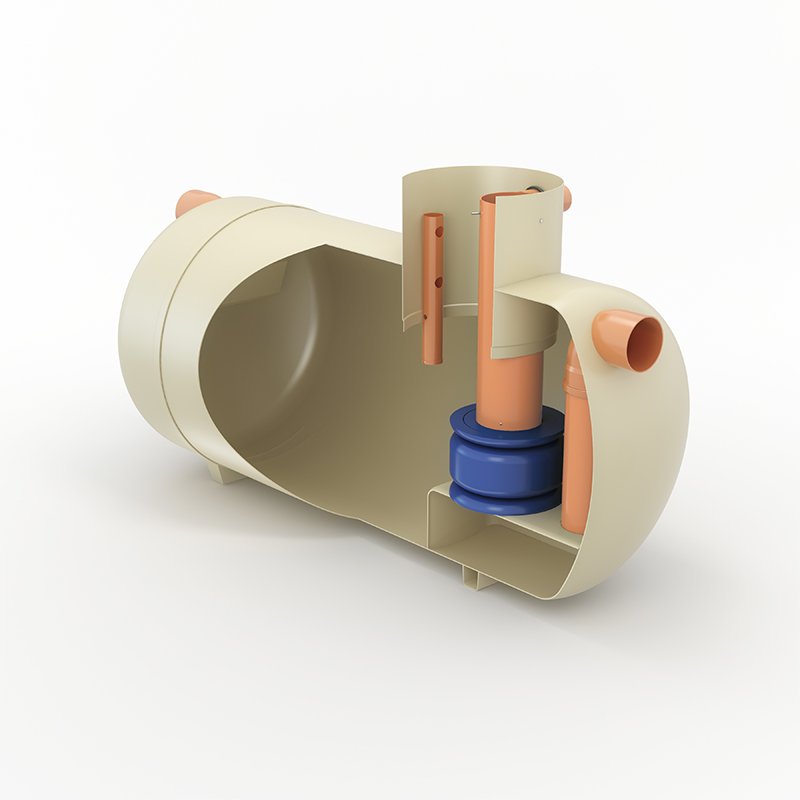

Klargester NSFA030 Full Retention Separator for 1670m² drainage area
The Klargester range of full retention separators are suitable for use in car parks, roadways, fuel distribution depots, vehicle workshops and forecourts.

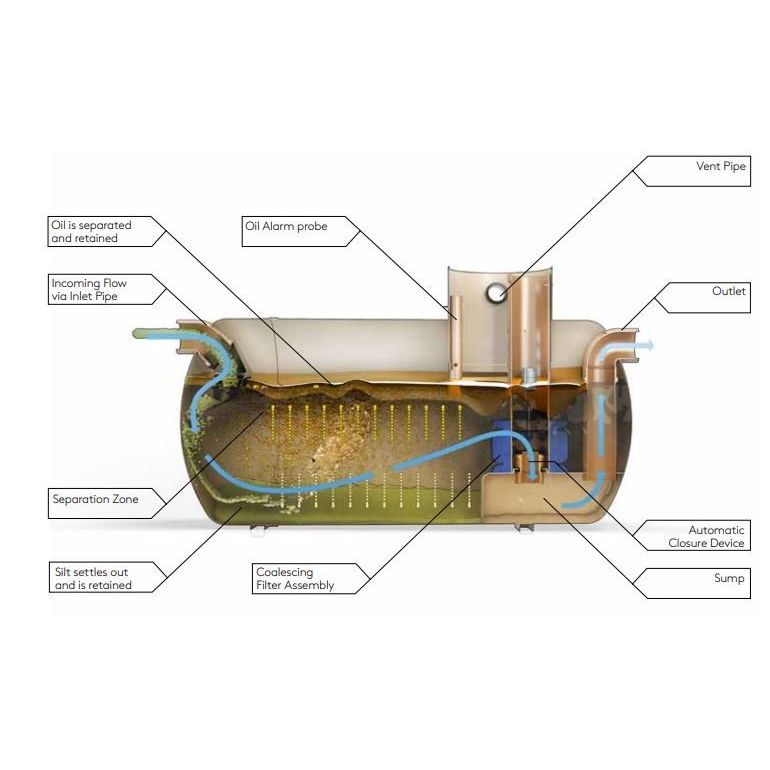

Full retention separators treat the full flow that can be delivered by the drainage system. This is normally equivalent to the flow generated by the rainfall intensity of 65mm/hr. On larger sites, some short term flooding may be acceptable means of limiting the flow rate and hence the size of full retention systems.
Full Retention Separator Features
- Designed for easy installation, saving time and money
- Certified to EN858 - 1 and PPG3 for complete peace of mind
- Oil alarm probe tube available (required by EN858-1 and PPG3)
- Fitted inlet/ outlet connections
- Vent points within necks
- Maintenance from ground level
- PE and GRP model construction - high strength and durability
- CE - Marked
| Model | Material | Flow (l/s) | Drainage Area (m²) PPG-3 (0.018) | Storage Capacity (L) Silt | Storage Capacity (L) Oil | Length (mm) | Diameter (mm) | Manhole Cover Dimensions (mm) | Base Inlet Invert (mm) | Base to Outlet Invert (mm) | Min Inlet Invert (mm) | Standard Pipework Diameter (mm) |
| NSFA030 | GRP Chamber Construction | 30 | 1670 | 3000 | 300 | 3915 | 2010 | 600 | 1810 | 1760 | 1000 | 315 |
Available with Smart Commissioning
Standard commissioning as scope of works, inc supplied and fitted (at point of commissioning) Kingspan Smartserv Pro GSM telemetry alarm for complete peace of mind.
Smartserv alerts both Kingspan and designated contacts. Includes 3 years Kingspan monitoring free of charge.*
*Kingspan monitoring is for alert only.
Service/maintenance packages are available at separate cost on request.
Delivery
Kingspan Klargester Full Retention Separators are delivered on a Flat bed Arctic lorry, however they require offloading by the customer. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.
If you require assistance with offloading, HIAB (lorry with a mounted crane to winch the tank off the delivery vehicle) delivery is available at an additional cost. Please contact us if this is required for delivery.
| Diameter | Ø 2010 mm |
|---|---|
| Empty Weight | 665 kg |
Our Premium Commissioning Package offers all the benefits of standard commissioning plus the following -
Terms of Premium Commissioning package:
- Parts and Spares are not included
- Pricing is based on two engineers for a half-day service
- Additional labour may incur extra charges
- Includes to pre-site Teams call as part of the service
- Remote monitoring is including as standard
- Pricing may vary for customers in the Scottish Highlands and Islands.
*terms and conditions apply
*Please note that additional commissioning costs may apply for certain Scottish Postcodes. These charges reflect the additional logistics required for servicing these areas. To confirm if your location incurs additional fees, please contact our customer service team for further information.
Commissioning prices apply at the time of purchasing the tank. Additional commissioning charges will apply if purchased separately from the tank.
