Klargester Forecourt Separator - 10,000 Litres

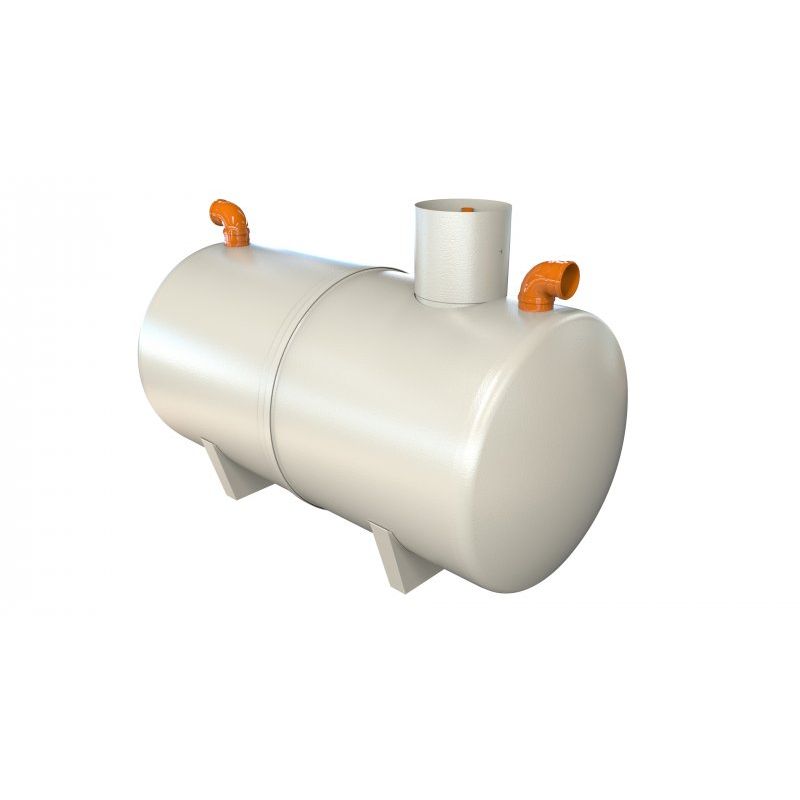

The Klargester forecourt separator is a high-performance, full retention separator engineered specially for use in areas at risk of hydrocarbon contamination, such as petrol station forecourts, vehicle workshops, commercial yards, and industrial estates. Manufactured in the UK by Kingspan Klargester, a leading name in environmental compliance solutions, this system is designed to intercept and retail oil, fuel and silt-laden surface water before it enters the surface drainage system.
Built to comply with the most stringent UK regulations, including the Environment Agency's PPG3 guidelines and BS EN 858–1 standards, the FS010 ensures your site meets pollution prevention obligations while delivering ease of maintenance and dependable performance.

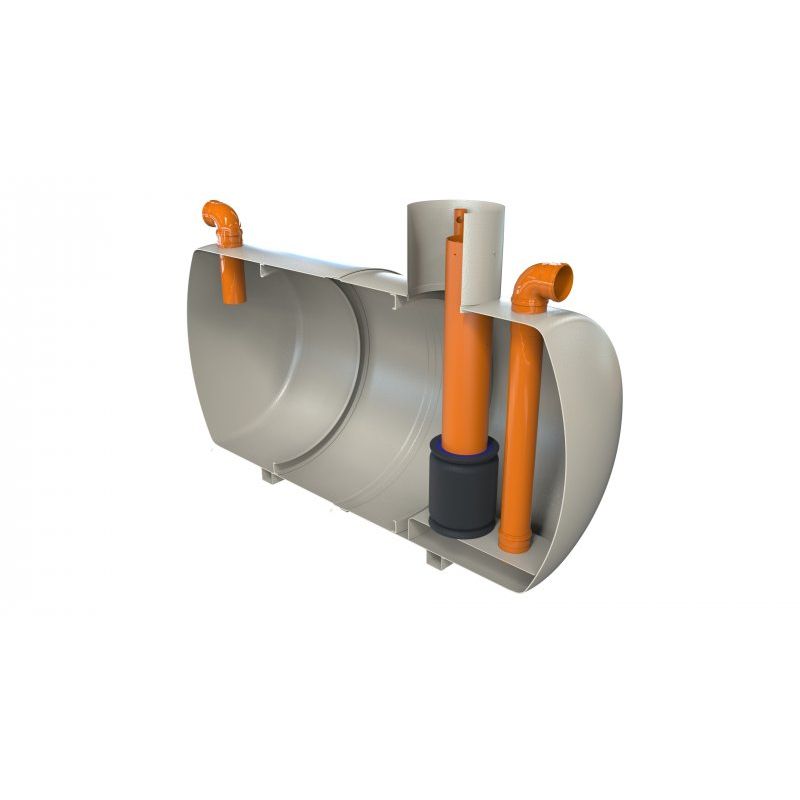

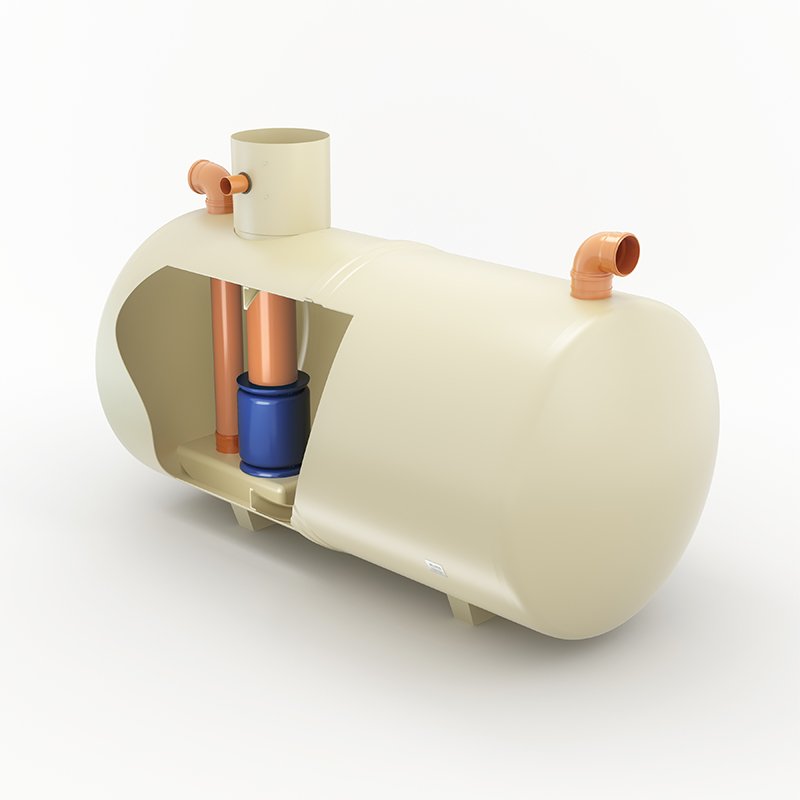

Operation ensures that the flow cannot exit the unit without first passing through the coalescer assembly. In normal operation, the forecourt separator has sufficient capacity to provide storage for separated pollutants within the main chamber, but is also able to contact up to 7,600 Litres of pollutant arising from the spillage of a fuel delivery tanker compartment on the petrol forecourt. The separator has been designed to ensure that oil cannot exit the separator in the event of a major spillage, subsequently the separator should be emptied immediately.
Key Benefits
- Full Retention Design: Captures all surface water run-off and hydrocarbon pollutants - even in the event of a major spill or storm.
- Pollution Prevention Guarantee: Prevents oils, fuels and suspended solids from entering drains, watercourses or the wider environment.
- Fully Compliant: Meets BS EN 858–1 standards and PPG3 requirements for high risk sites
- Tough & Durable: Manufactured from corrosion-resistant Glass Reinforced Plastic (GRP) for long-term underground use
- Low Maintenance Operation: Integral silt chamber and coalescer extend servicing intervals
- Automatic Closure Device (ACD): Shuts off flow in the event of a sudden fuel release - standard on all forecourt models.
- Simple Access for Servicing: Lockable inspection covers ensure easy, safe maintenance.
Forecourt Separator Features
- Light and easy to install
- Inclusive of silt storage volume
- Fitted inlet/ outlet connectors
- Vent points within necks Extension access shafts for deep inverts
- Available with 160mm or 200mm inlet/outlet pipework options
- Maintenance from ground level
- Oil storage volume.
- Coalescer
- Automatic closure device
- Oil alarm system available
- CE - marked
Forecourt Separator Specifications
| Class | I | I |
| Backfill Type | Concrete | Concrete |
| Total Capacity (L) | 10000 | 10000 |
| Drainage Area (m2) | 835 | 1115 |
| Peak Flow Rate (l/s) | 15 | 20 |
| Length (mm) | 3915 | 3915 |
| Diameter (mm) | 2020 | 2020 |
| Access Shaft Diameter (mm) | 600 | 600 |
| Base Inlet Invert (mm) | 2180 | 2180 |
| Base to Outlet Invert (mm) | 2130 | 2130 |
Applications

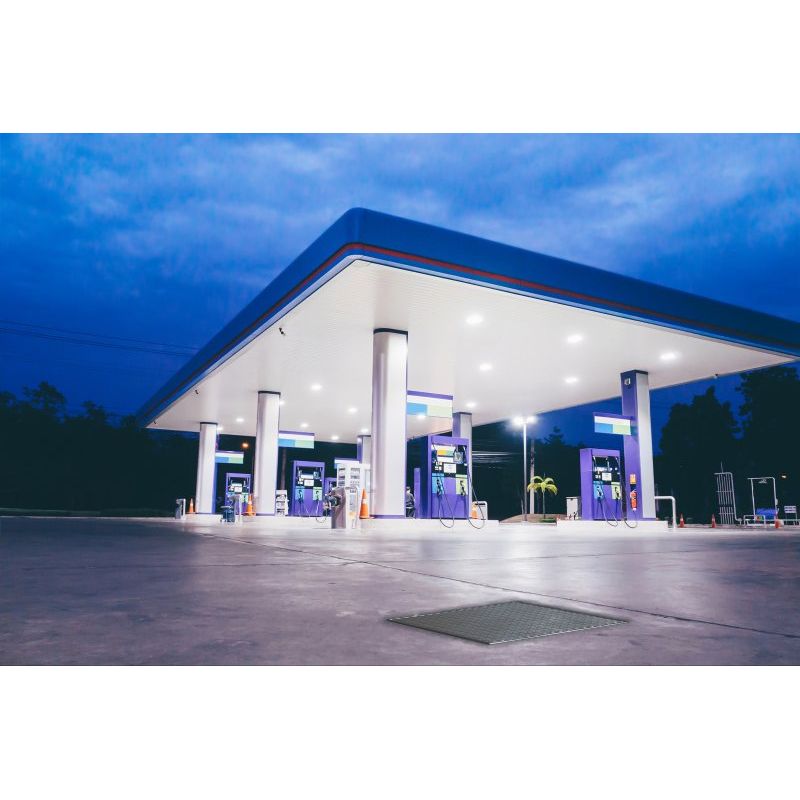

- Garage Forecourts
- Car Parks
- Workshops
- Supermarket / Shopping Centres
- Distribution Warehouses
- Car Wash Bays
- Scrapyards
- Car Garages
- Fuel Storage Sites
- Distribution / Haulage Centres
- Waste Transfer Sites
- Business, Commercial parks and Industrial Estates
British European Standard EN 858-1. It should be installed and calibrated by a suitably qualified technician so that it will respond to an alarm condition when the separator requires emptying.
Available with Smart Commissioning
Standard commissioning as scope of works, inc supplied and fitted (at point of commissioning) Kingspan Smartserv Pro GSM telemetry alarm for complete peace of mind.
Smartserv alerts both Kingspan and designated contacts. Includes 3 years Kingspan monitoring free of charge.*
*Kingspan monitoring is for alert only.
Service/maintenance packages are available at separate cost on request.
Delivery
Our Forecourt Separators are delivered on a Flat bed Arctic lorry, however they require offloading by the customer. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.
If you require assistance with offloading, HIAB (lorry with a mounted crane to winch the tank off the delivery vehicle) delivery is available at an additional cost. Please contact us if this is required for delivery.
| Diameter | Ø 1920 mm |
|---|---|
| Height | 2510 mm |
| Empty Weight | 500 kg |
| Material | HDPE / Polyethylene |
Benefits of having your Kingspan Klargester product commissioned:
- Reassurance that your system's mechanical and electrical components are in good working order
- A warranty period that only starts when your water system is commissioned, not when it leaves the factory (terms and conditions apply)
- Trouble-free operation of your system from the start
Find out more about what's included in the commissioning of your Clearwater pump station and arrange Commissioning, read Kingspan's dedicated guide to Commissioning today.
The checks below will be carried out by a Kingspan Service Engineer and will only be checked if the unit has been installed in line with the provided installation guidelines.
- Unit is installed flat and level with safe working area around the perimeter
- All incoming and outgoing pipework has been connected
- The control panel has been mounted
- Permanent electrical supply has been fitted to the panel (extension leads or generator supplies will not be acceptable)
The following will then be carried out by an Authorised Service Engineer:
- Check the system is installed to manufacturer's instruction
- Fit floats in tank and set the levels
- Pull float and pump cables through the ducts using drawstring provided
- Connect pump and float cables to the control panel using appropriate glands (the panel must be within 2 m of the chamber or select “enhanced commissioning”)
- Check float cable operation and terminate (stop, start, standby, alarm)
- Check pump rotation
- Run the pumps via the float switches to ensure correct operation and discharge
- Test high level alarm and beacon (if applicable)
- Leave on Auto for future use
Please note, Kingspan Commissioning covers UK mainland and certain postcode areas only. Please speak to our Team for expert advice on commissioning.
How often should my separator be serviced?
Kingspan’s service and maintenance plans have been developed using our knowledge of a range of separators and in accordance with the Environmental Agency Pollution Prevention Guidelines and EN858-2.
Avoid flooding and fines with cost-effective separator service plans from Kingspan Service. By regularly servicing your separators, you can reduce the pollution risk on your site. To find out more, click here
