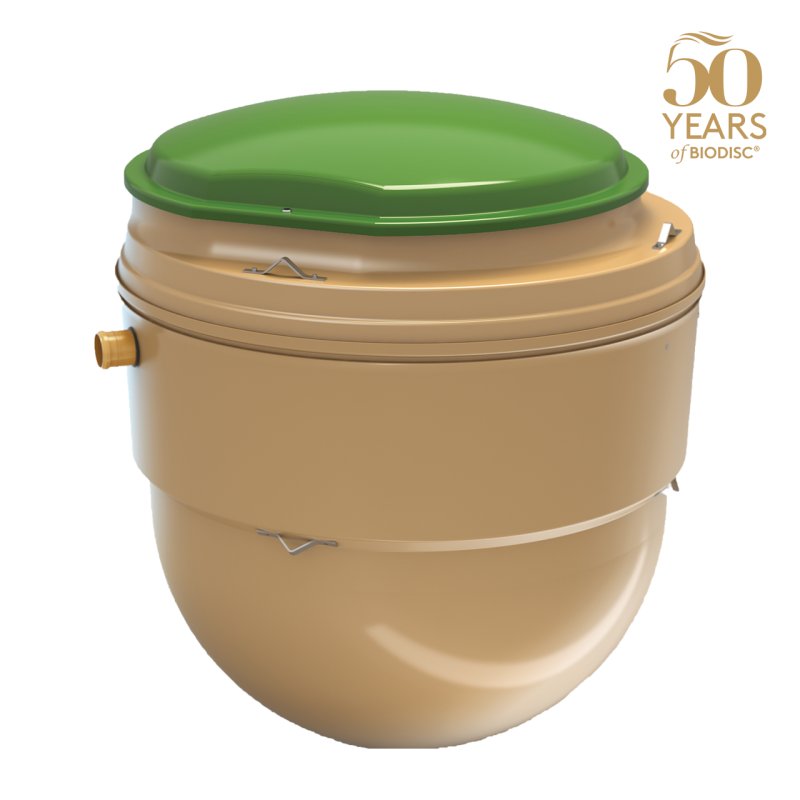

Klargester BioDisc BC Sewage Treatment Plant for up to 18 Persons
The Klargester BioDisc BC 18 person Sewage Treatment System is for Domestic dwellings without access to mains drainage, the Klargester BioDisc provides a reliable, efficient and environmentally safe solution to your sewage disposal needs.
It is ideal for locations where discharge is to sub-surface irrigation, or to a suitable watercourse where approved by the regulator, and where a septic tank will not meet the required standard.

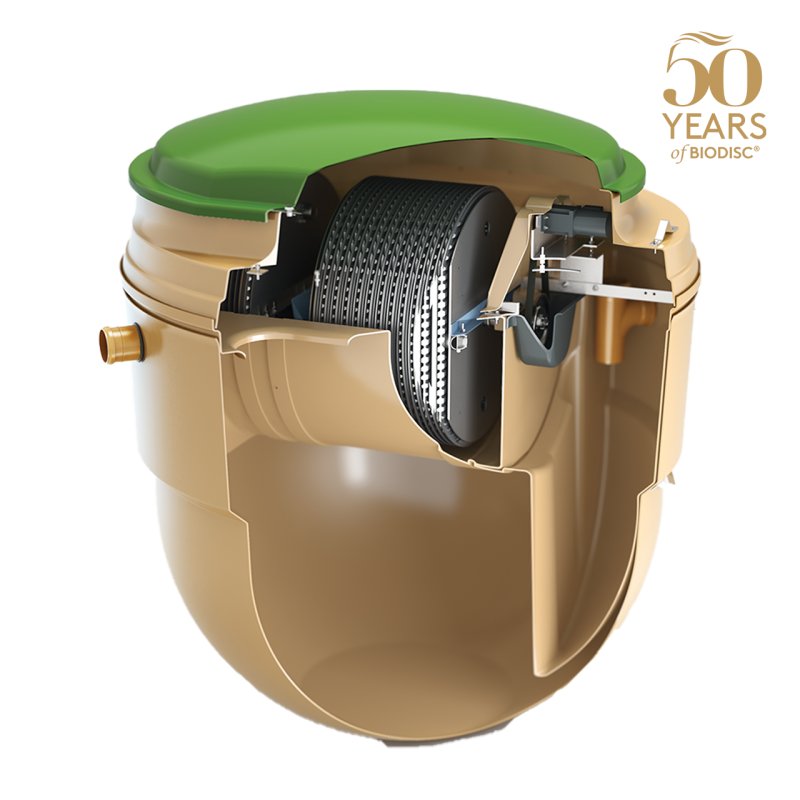

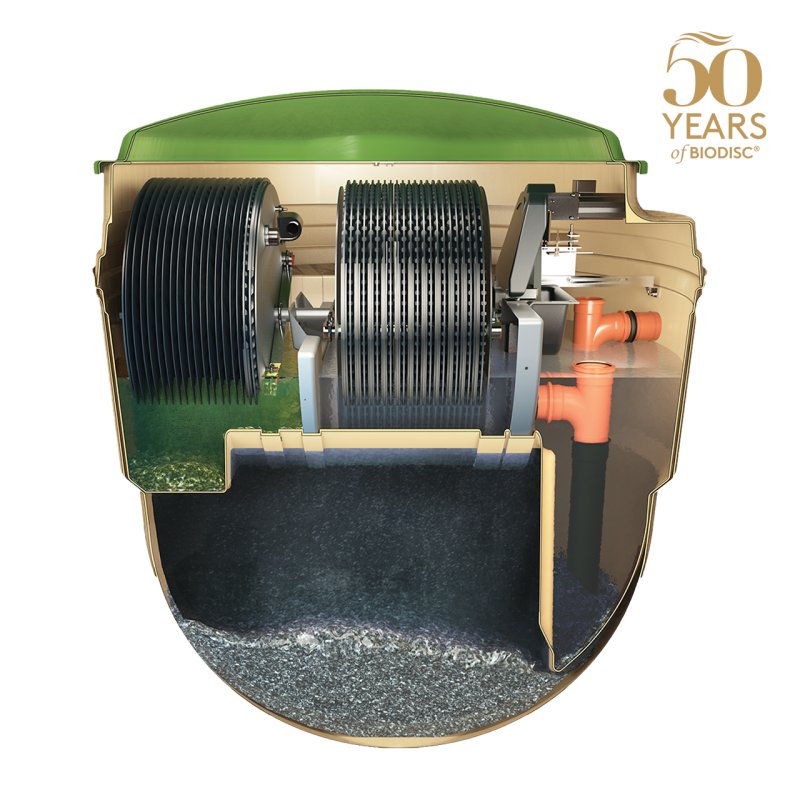

The BioDisc is the only packaged Sewage Treatment Plant which utilises the Rotating Biological Contactor technology for small domestic applications. This process offers inherent cost and performance benefits with a low carbon footprint. Where the Klargester Gravity BioDisc demonstrated an efficiency rating equivalent to a performance of 10 mg/l BOD5, 15 mg/l SS and 3.8 mg/l Ammonia.
Klargester BC 18 persons* Tank Features
- Affordable running costs and maintenance costs
- Low noise when in operation and odour free
- Suitable for homes with up to 18 people*
- Low profile covers for minimal visual impact and childproof locks
- Invert options to match the site
- Control panel issues an immediate alert when a problem occurs
- Single phase standard power supply
- CE marked
*Based on residential applications and daily flow rates
For more information regarding the Klargester BioDisc, please click the following link - Klargester BioDisc
Performance and Compliance
- Performance certified to achieve 10 mg/l BOD5, 15 mg/l SS and 3.8 mg/l ammonia.
- Fully marked in line with the CPR 2013.
Delivery
All our Klargester tanks are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.
If you require assistance with offloading, we may be able to offer a tail lift (lowers the tank to the ground) or HIAB (lorry with a mounted crane to winch the tank off to the nearest hard standing area only, at an additional cost). Please contact us if this is required for delivery.
| Dimensions (W×L×H) | 2450 × — × 3325 mm |
|---|---|
| Empty Weight | 750 kg |
| Material | HDPE / Polyethylene |
| Model | BC Biosdisc - 600 mm Invert | BC Biodisc - 1100 mm Invert |
| Population Equivalent* | up to 18 Persons / up to 12 bedrooms | up to 18 Persons / up to 12 bedrooms |
| Max Daily BOD kg | 1.08 | 1.08 |
| Max Daily Flow m3 | 3.6 | 3.6 |
| Maximum Daily Ammonia g NH4 | 144 | 144 |
| Overall Diameter (mm) | 2450 | 2450 |
| Inlet Invert Depth (mm) | 600 | 1100 |
| Depth Below Inlet Invert (mm) | 1820 | 1820 |
| Outlet Invert Depth (mm) | 1735 | 1735 |
| Overall Height (mm) | 2825 | 3325 |
| Height to Rim of Cover (mm) | 2485 | 2985 |
| Empty Weight kg | 650 | 750 |
| Standard Power Supply | 1 Phase | 1 Phase |
*Based on residential applications and daily flow rates
Below are just some of the spare parts we offer for the BioDisc, if you require a different part to the ones below, please click here for our full BioDisc spare part range.
| Spares / Motor | BC BioDisc |
| Motor | Bc BioDisc Motor |
| Belt | BC BioDisc Belt |
| Pulley | Top / Bottom |
| Bearings | Full Bearing Kit |
To ensure your system operates to maximum efficiency, we recommend tried and tested Commissioning by our own British Water and Safe Building trained engineers.
Our unrivalled knowledge means that we are best placed to carry out bespoke assessments to get your system up and running. The commissioning will also provide you with a unique checklist against your system, ensuring your complete peace of mind and reassurance that your system's mechanical and electrical components are in good working order.
The checks below will be carried out by a Kingspan Service Engineer and will only be checked if the unit has been installed in line with the provided installation guidelines.
- Check Plant is level, 5 mm tolerance
- Confirm the ground around the plant is level, flat and that the lid securely fastens
- Confirm the panel has been mounted correctly
- Make the required connections to the panel using correct glands
- Make all electrical connections within the tank
- Ensure all safety guards are fitted
- Set all greasomatics within the plant (if applicable)
- Check belt/chain tension and alignment
- Check pump float activates freely (pumped discharge only)
- Check operation of sludge return pump (nitrification plants only)
- Check direction of disc pack
- Check levels within unit
- Test and set any Alarms supplied with the unit
If the BioFicient / BioTec has been purchased, commissioning includes the above plus:
- Check the air blower is secure
- Set forward feed airlift (larger plants)
- Make sure there is adequate air supply
- Connect all airlines and set valves
- Make sure BioZones have adequate air supply
- Wire and set timer solenoid for sludge return (if applicable)
On completion, they will provide a site specific commissioning certificate
Smart Commissioning – Standard commissioning as scope of works, Inc supplied and fitted (at point of commissioning) Kingspan Smartserv Pro GSM telemetry alarm for complete peace of mind.
Smartserv alerts both Kingspan and designated contacts. Includes 3 years Kingspan monitoring free of charge.
Find out more about what's included in the Commissioning of your Clearwater pump station and arrange Commissioning, read Kingspan's dedicated guide to Commissioning today.
