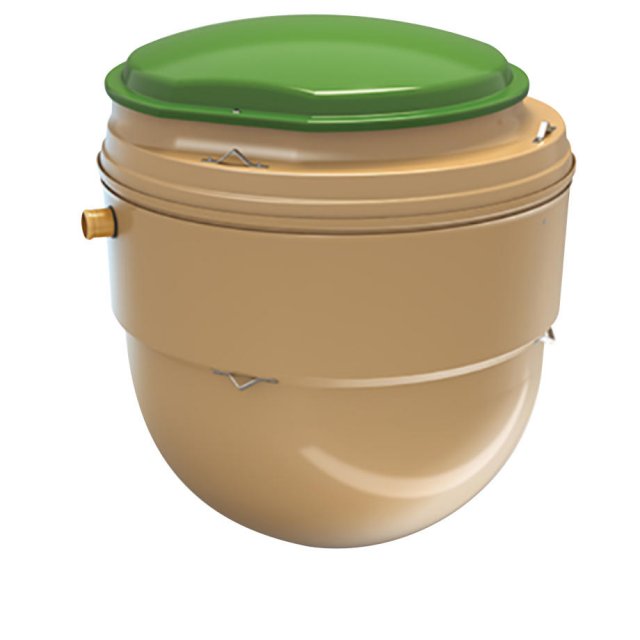

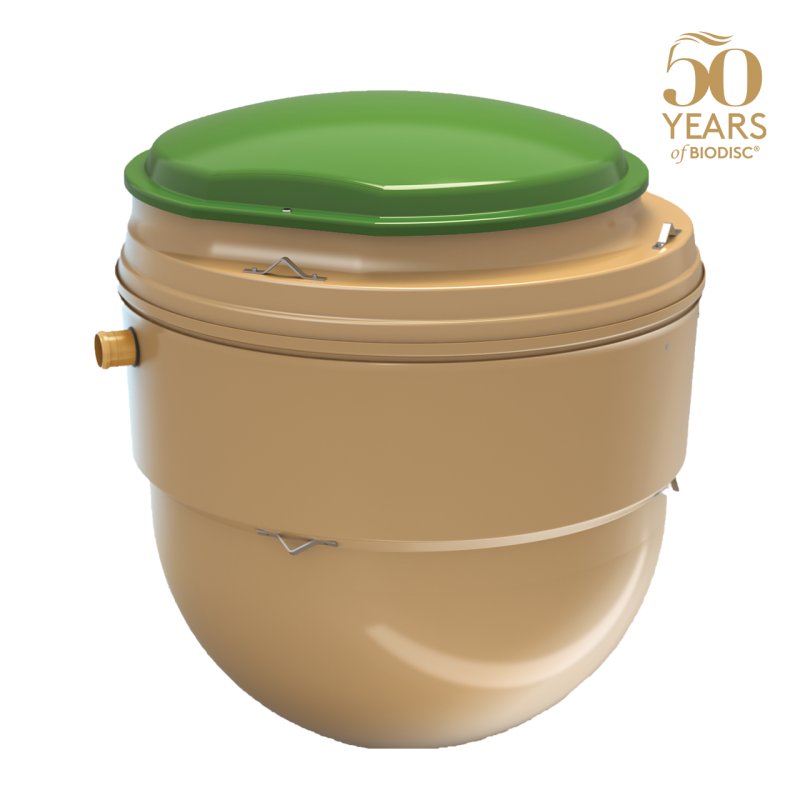

Klargester BioDisc BA Sewage Treatment Plant for up to 6 Persons*
The Klargester BioDIsc BA is used for Domestic dwellings without access to mains drainage, the Klargester BioDisc provides a reliable, efficient and environmentally safe solution to your sewage disposal needs. It is ideal for locations where discharge is to sub-surface irrigation, or to a suitable watercourse where approved by the regulator, and where a septic tank will not meet the required standard. For added peace of mind, we offer an extended warranty period of 7 years* exclusively for the BioDisc BA, BAx and BB models. *(Terms and conditions apply - to view, click here).

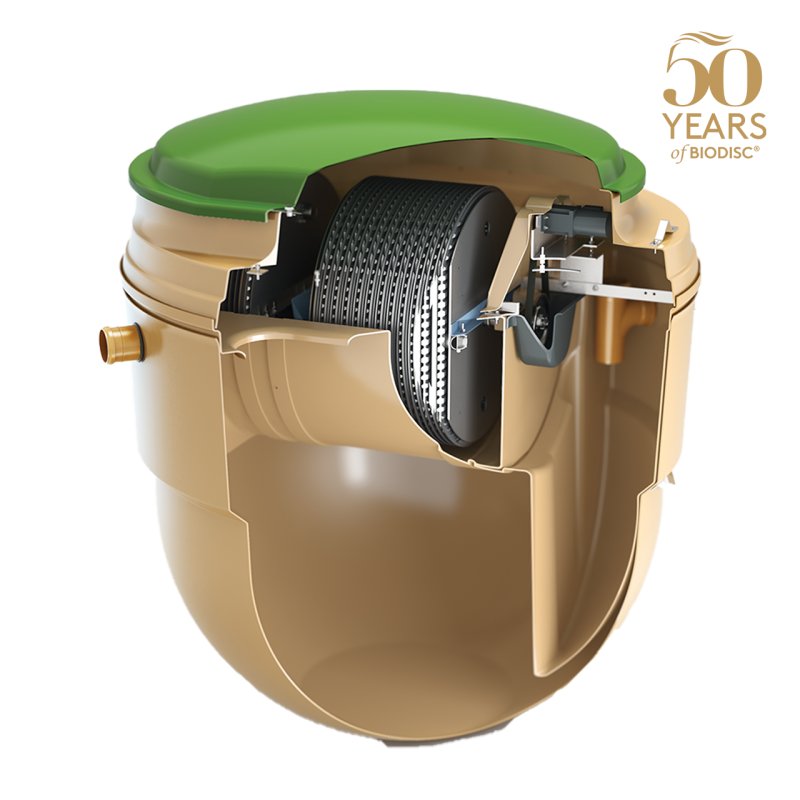

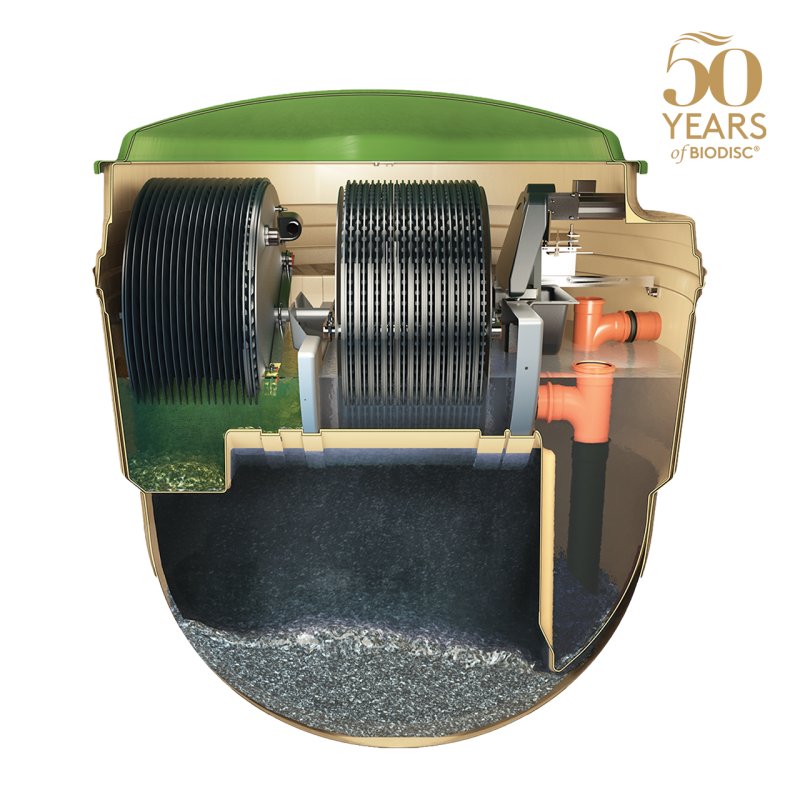

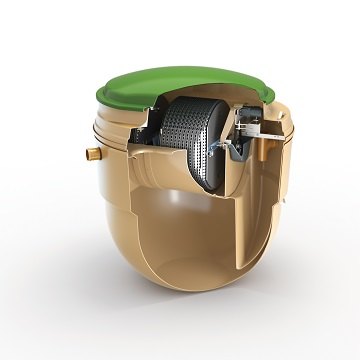

The BioDisc is a packaged Sewage Treatment Plant which utilises the Rotating Biological Contactor technology for small domestic applications. This process offers inherent cost and performance benefits with a low carbon footprint. Where the Klargester Gravity BioDisc demonstrated an efficiency rating equivalent to a performance of 10 mg/l BOD5, 15 mg/l SS and 3.8 mg/l Ammonia.
Choose from either Gravity or Integral Pumped System (IPS): Gravity is the standard option, however where the inlet to the watercourse or soak away is higher than the outlet of the treatment plant you will require the optional Integral Pumped System (IPS) as this will pump the waste water uphill and into your discharge point. The pumped system (IPS) also comes with a high level alarm.

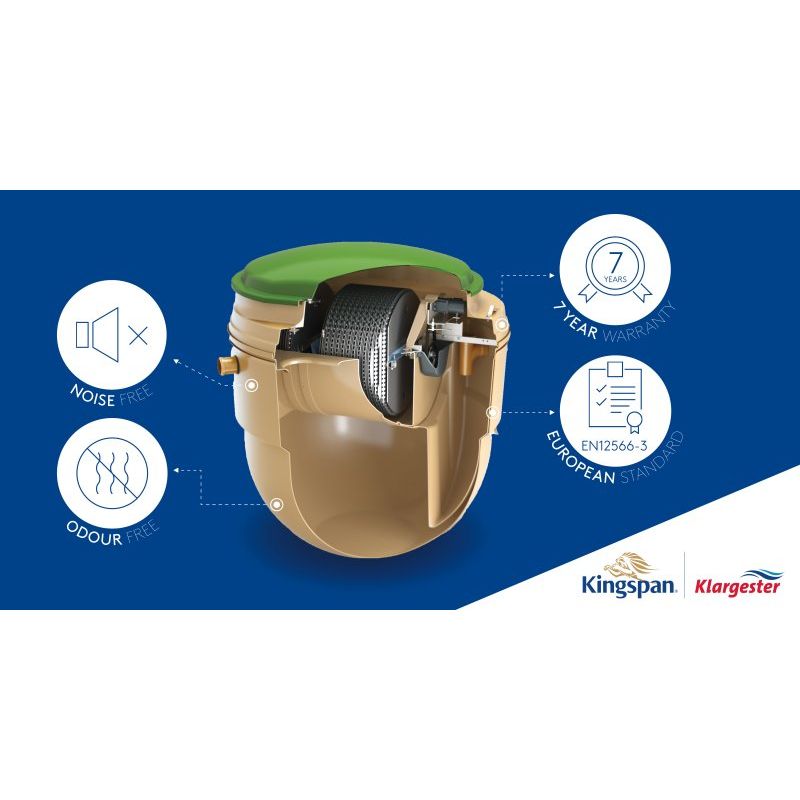

Klargester BA 6 person Tank Features
- Extended warranty period of 7 years* (terms apply)
- Affordable running and maintenance costs
- Low noise in operation and Odour Free (to EN13725 standard)
- Suitable for homes with up to 6 people*
- Low profile covers for minimal visual impact and childproof locks.
- Invert options to match the site
- Control panel issues an immediate alert when a problem occurs
- Single phase standard power supply
- Optional integral pump available
- Certified to European Standard EN 12566 Part 3
- CE marked
- Pumped outlet: 50 mm MDPE compression fitting
| Model | BA |
| Population Equivalent (Standard Flow): | 6* |
| Maximum Daily BOD5 (g): | 0.36 |
| Maximum Daily Flow (m3): | 1.2 |
| Maximum Daily Ammonia (g NH4) | 48 |
| Diameter (mm): | 1995 |
| Invert Depth Options (mm): | 450 / 750 / 1250 |
| Depth Below Inlet Invert (mm): | 1400 |
| Outlet Invert Depth (mm): | 1315 |
| Overall Height (mm) Depending on Invert: | 2160 / 2460 / 2960 |
| Height to Rim Of Cover (mm) Depending on Invert: | 1945 / 2245 / 2745 |
| Empty Weight (Kg): | 310 / 325 / 380 |
| Standard Power Supply: | 1 Phase |
| Motor Rating (Watts): | 60 |
| Full Load Current 1 Phase (amps): | 0 |
| Sludge Return Pump Rating (watts): | 250 |
*Based on residential applications and daily flow rates
Performance and Compliance
- Certified to European Standard EN 12566 Part 3.
- Performance certified to achieve 10 mg/l BOD5, 15 mg/l SS and 3.8 mg/l ammonia.
For more information regarding the Klargester BioDisc, please click the following link - Klargester BioDisc
Commissioning
*Please note that additional commissioning costs may apply for certain Scottish Postcodes. These charges reflect the additional logistics required for servicing these areas. To confirm if your location incurs additional fees, please contact our customer service team for further information.
Commissioning prices apply at the time of purchasing the tank. Additional commissioning charges will apply if purchased separately from the tank.
Delivery
All our Klargester tanks are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.
If you require assistance with offloading, we may be able to offer a tail lift (lowers the tank to the ground) or HIAB (lorry with a mounted crane to winch the tank off to the nearest hardstanding area only, at an additional cost). Please contact us if this is required for delivery.
| Dimensions (W×L×H) | 1995 × — × 2960 mm |
|---|---|
| Empty Weight | 380 kg |
| Material | HDPE / Polyethylene |
To ensure your system operates to maximum efficiency, we recommend tried and tested Commissioning by Kingspan British Water and Safe Building Trained Engineers.
Kingspan's unrivalled knowledge means that they are best placed to carry out bespoke assessments to ensutre your system is set up and running correctly.
Commissioning will also provide you with a unique checklist against your system, ensuring your complete peace of mind and reassurance that your system's mechanical and electrical components are in good working order.
The Standard Commissioning checks listed below, will be carried out by a Kingspan Service Engineer and will only be checked if the unit has been installed in line with the provided installation guidelines.
- Check Plant is level, 5 mm tolerance
- Confirm the ground around the plant is level, flat and that the lid securely fastens
- Confirm the panel has been mounted correctly
- Make the required connections to the panel using correct glands
- Make all electrical connections within the tank
- Ensure all safety guards are fitted
- Set all greasomatics within the plant (if applicable)
- Check belt/chain tension and alignment
- Check pump float activates freely (pumped discharge only)
- Check operation of sludge return pump (nitrification plants only)
- Check direction of disc pack
- Check levels within unit
- Test and set any Alarms supplied with the unit
On completion, the Kingspan Service Engineer will provide a site specific commissioning certificate.
Upgrade to Smart Commissioning
Smart Commissioning includes the standard commissioning as scope of works, including supplied and fitted (at point of commissioning) Kingspan Smartserv Pro GSM telemetry alarm for complete peace of mind.
Smartserv alerts both Kingspan and designated contacts.
Includes 3 years Kingspan monitoring free of charge.
Find out more about what's included in the commissioning of your Klargester BioDisc and arrange Commissioning, read Kingspan's dedicated guide to Commissioning today.
Register your Klargester BioDisc Warranty
Please click on the following link to register your warranty https://www.kingspan.com/gb/en-gb/products/wastewater-management/guarantee
*Terms and conditions apply
Below are just some of the spare parts we offer for the BioDisc, if you require a different part to the ones below, please click here for our full BioDisc spare part range.
| Spares / Model | BA BioDisc |
| Motor | BA Biodisc Motor |
| Belt | Pre-2006 / Post 2006 |
| Pulley | Top / Bottom |
| Bearings | Full Bearing Kit |
