IBC Immersion Heater 0-90°C
This product is specified and quoted to your requirements. Send us the details and our team will come back to you with a full price, including delivery.
Request a quote- Response within one working day
- No obligation
- Speak to a specialist on 01643 703358

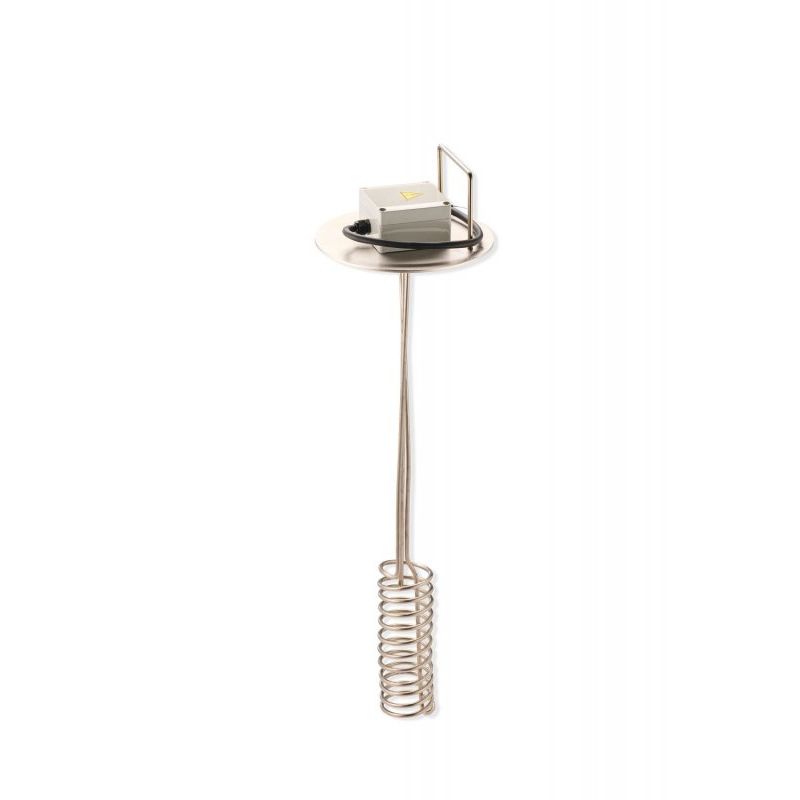

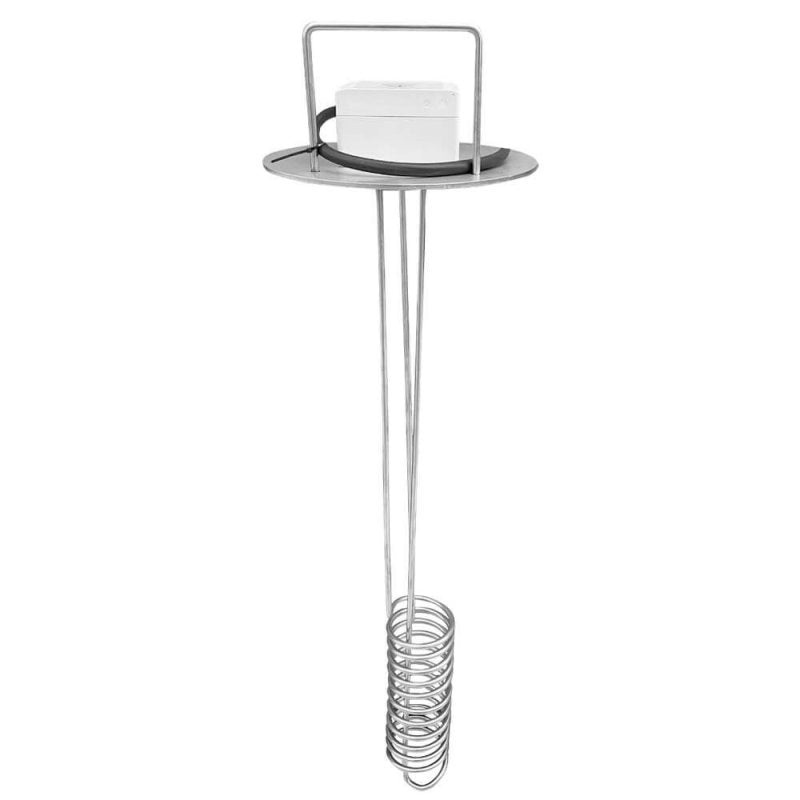

IBC Immersion Heater 0-90°C
Direct-Contact heating for efficient temperature control.
A powerful and precision-engineered solution designed to heat liquids stored in intermediate bulk containers (IBCs) quickly and effectively. By immersing directly into the liquid, this heater delivers fast heat transfer, reduces viscosity, and ensures consistent temperatures across a wide range of industrial applications.
Ideal for industries where fluid temperature is critical - such as food production, chemicals, and pharmaceuticals - the IBC immersion heater offers high-performance heating in a compact, easy-to-install format.
Features and Benefits
- Direct Immersion Heating
- High-grade Stainless Steel Sheath
- Integrated Temperature Control
- Efficient and Safe
- Compact and Portable
- Low Maintenance Design
- Complete with controller
Typical Applications
- Chemical Manufacturing
- Food & Beverage
- Cosmetics & Personal Care
- Pharmaceuticals
- Paints, Inks, and Coatings
| Model | IBC Immersion Heater (22-4158S) |
| Voltage | 230V AC |
| Power Rating | 2 kW |
| Material | Stainless Steel Sheath (typically 316L |
| Max Temperature | Up to 150°C (302°F) |
| Control | Built-In thermostat or external controller |
| Installation | Vertical immersion via IBC top opening |
| Safety | Over-temperature cut-off (manual or auto) |
*always verify compatibility with fluid type and container design before use.
How It Works
Insert directly through the top port of an IBC. Once immersed in the liquid, the heating element rapidly warms the surrounding fluid through direct contact, allowing for faster and more consistent heat distribution than external heaters. The heater can be controlled via a built-in or external thermostat, providing precise temperature regulation throughout the heating process.
For optimal performance and energy savings, use in conjunction with an IBC insulated jacket or cover to reduce heat loss.
Frequently Asked Questions (FAQs)
Is it compatible with all IBC?
It fits most standard 1000L IBCs with an open-top or access port. Ensure the container is rated for internal immersion heating.
Is it safe to use with flammable materials?
No. The standard IBC immersion heater is not ATEX-rated. For flammable or explosive materials, contact us for a certified alternative.
How do i control the temperature?
The unit includes a built-in thermostat or can be paired with an external temperature controller for precise regulation.
Can i leave it in the container when not heating?
It's best to remove and clean the unit between uses to prevent buildup or corrosion, depending on the fluid.
Does it require regular maintenance?
Minimal maintenance is needed. Regularly inspect the sheath for scale or residue, especially when used with viscous materials.
