High Level Alarm for Sewage Pumping Station cw Float
Estimate delivery costs
Your postcode helps us show you accurate delivery costs before you add to basket. We use it only to calculate shipping rates — it is not stored or shared.

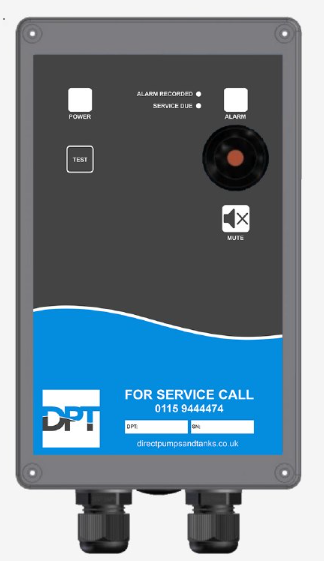

Sewage Pumping Station High Level Alarm
The Direct Pumps & Tanks High-Level alarm operates from a switched input, such as a float switch or pressure switch. The alarm can be activated either by a closed circuit switched input or an open circuit switched input.
The High-Level alarm is suitable for 110-240Vac supply voltages and has a built-in backup battery for the unexpected event of a power outage.
Once activated, the alarm provides a visual and audio indicator. There is an option to connect an external beacon or other circuitry via the auxiliary output and/or the volt-free relay output.
A mute button allows the operator to silence the audio alarm of the unit without affecting the visual, auxiliary output or volt-free relay.
A test button conveniently allows the operator to check the alarm functions without the need to trigger the input to the alarm.
Power to the alarm is indicated via a blue constant light, allowing easy operational inspection of the unit. In the event of a power outage, the alarm will still operate for up to 72 hours and the power indicator will ????ash red.
Features:-
- Alarm LED indicator
- Alarm audio buzzer
- Alarm audio mute button
- Alarm test button
- Power LED indicator
- Auxiliary alarm output for accessories such as a beacon
- or siren
- Volt free relay contact output SPDT
- Configurable for ACTIVE open or ACTIVE closed alarm
- input
- Easy installation no tool required WAGO wiring
- terminals
- Backup battery with up to 72 hours of run time
Please note that these items will require a suitable housing if they are to be mounted externally.
