GRP Gas Meter Enclosure - Multi-Pressure - GC2-FS-1
Estimate delivery costs
Your postcode helps us show you accurate delivery costs before you add to basket. We use it only to calculate shipping rates — it is not stored or shared.

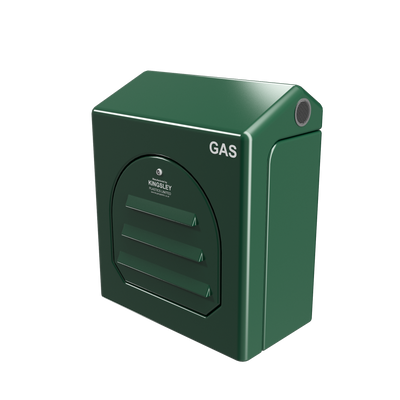

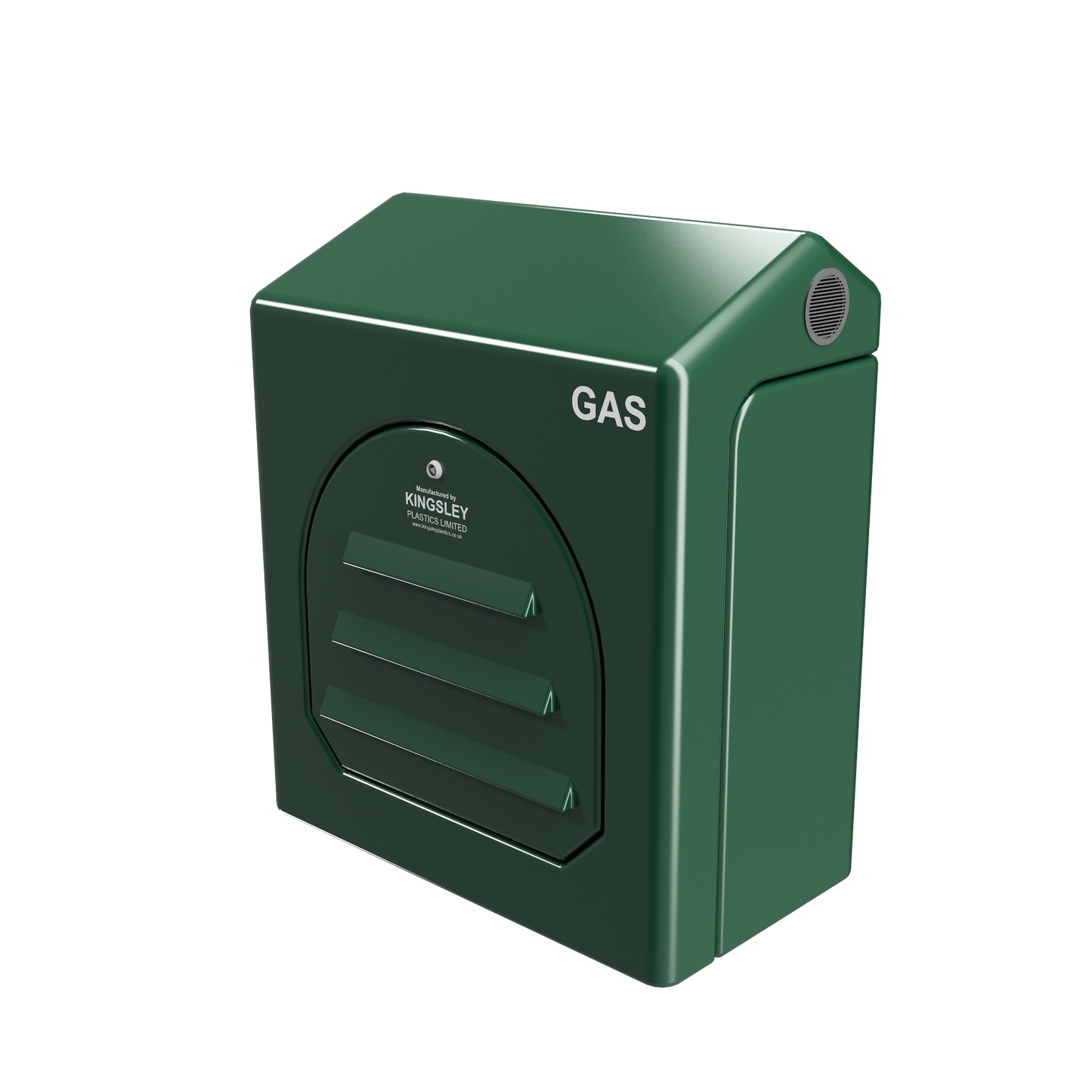

GRP Gas Meter Enclosure - Multi-Pressure - GC2-FS-1- 710mm x 395mm x 830mm
The Kingsley plastics GRP GC Gas Meter Cabinet Range Is a comprehensive series of high-performance enclosures designed specifically for housing gas meters and associated equipment in outdoor and roadside environments across the UK.
Manufactured from Glass Reinforced Plastic (GRP), these cabinets provide exceptional durability, corrosion resistance, and long-term protection in exposed conditions.
Designed to meet the needs of gas utilities, contractors, developers, and commercial installations, the GC range includes both wall-mounted and free-standing units, accommodating gas meters from U16 through to U165 and modular systems.
All Kingsley GRP gas cabinets are supplied with PRS35-Compliant ventilations, ensuring safe dispersal of gas in accordance with UK gas industry standards.
The GC2-FS-1 Free standing, multi-pressure cabinet provides the same capacity as the wall-mounted version but is designed for ground installation.
Features:
- GRP Construction - corrosion-resistant and non-conductive
- PRS35 Compliant Ventilation as standard
- Vented removeable door for safe gas dispersion
- Triangular quarter-turn locking system with key
- RAL 6005 Moss Green Finish (other colours available)
- 20 Year Guarantee
- 20+ year lifespan (often 30+ years in service)
- Wall-mounted and free-standing options available
- Explosion relief roof options on larger units
Benefits:
- Space-saving design
- Easy basel installation
- Fully compliant ventilation
| External Dimension (WxDxH) | 710mm x 395mm x 830mm |
| Lock Type | Quarter-turn Triangular lock and key |
| Weight | 15kg Approx. |
| Access Panel | Ventilated - Removable |
| Mounting | Concrete Base (bolt-down) |
| Pressure | Low & Medium |
| Meter | U16 |
| Colour | RAL 6005 Moss Green |
Applications
- External gas meter installation
- Sites without suitable wall fixing
Included as Standard:
- Gas Cabinet (Free-Standing, Multi-Pressure)
- Vented door with lock and key
- Concrete fixing bolts
Delivery
All our GRP enclosures are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.
If you require assistance with offloading, we may be able to offer a tail lift (lowers the tank to the ground) or HIAB (lorry with a mounted crane to winch the tank off the delivery vehicle). Please contact us if this is required for delivery.
| Dimensions (W×L×H) | 710 × 395 × 830 mm |
|---|---|
| Empty Weight | 15 kg |
| Material | GRP / Fibreglass |
