Graf One2Clean Sewage Treatment Plant - 4800L

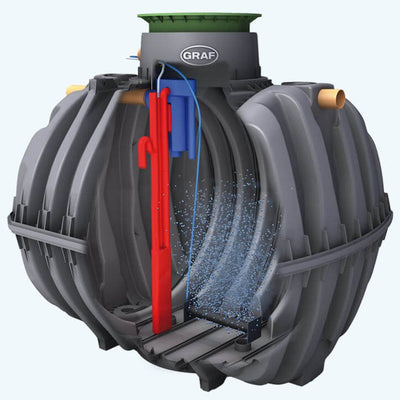

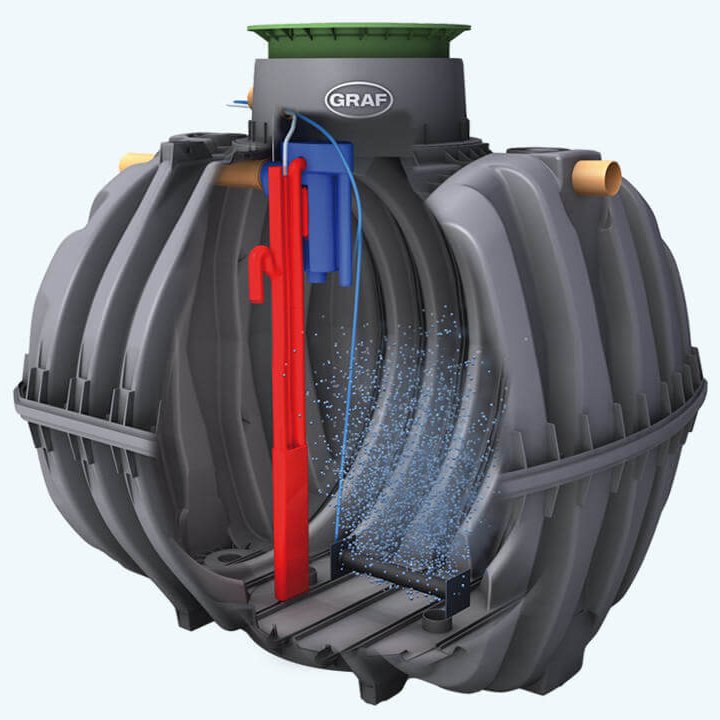

The GRAF One2Clean system is a single chamber wastewater treatment system capable of offering up to 99% pollutant removal with SBR lifting technology. A cutting-edge solution designed to efficiently manage and treat wastewater for residential and small commercial properties. This compact yet powerful plant combines advanced technology with user-friendly features, ensuring a sustainable approach to sewage treatment.
CE certified and conforms with EN12566-3, with market-leading effluent quality, the One2Clean is designed to offer investment security even if legal requirements become stricter. The One2Clean has minimal operating costs for the end user, with 46 kWh per person per year power consumption and low sludge volumes. This tank also features an integrated sample chamber, is suitable for granular base and backfill on dry sites, and requires no wiring to be done on-site.
With Graf One2Clean, you will be able to take responsibility for the timely disposal of your waste water, while taking care of your budget and the environment.
Features and Benefits of the Graf One2Clean 1 tank system:
- Single Tank, Single Chamber Construction
- 15 Year Tank and 3 Year pump blower guarantee
- Robust, Hard-wearing Design
- Quiet Operation
- One-piece clear water lifter

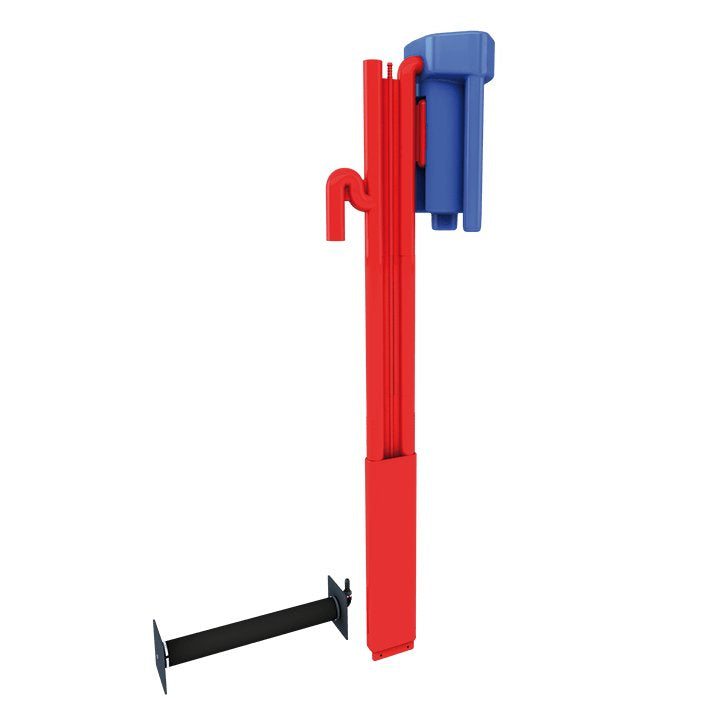

- Integrated self-cleaning sampling container

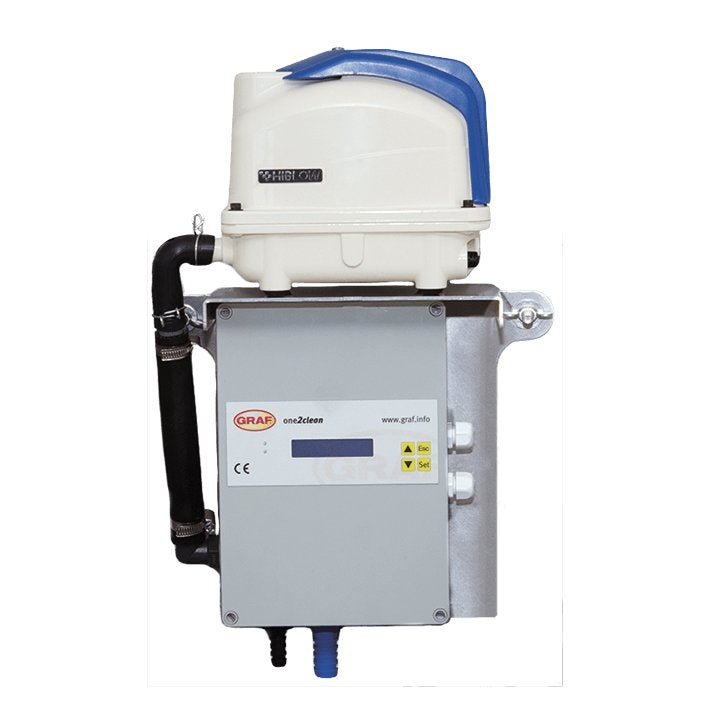

- Compact One2Clean controller
- Granular backfill
- Groundwater stable up to the centre line
- Plug and play - no wiring required
- Just 46 kWh per person, per year
- No mechanical / electrical parts or submersed pumps in the waste water
- Very low sludge content
- Maintenance internal 1-2 per year
FREE commissioning is offered by GRAF UK, completed by an GRAF accredited service provider, with every order for a One2Clean plant. Please see the flyer in the Downloadable documents section for further information.
Innovative Design Features:
- Flush-to-Ground Lid: The system’s lid is designed to be flush with the ground. Helping to preserve the look of your garden and eliminating any unsightly protrusions.
- Vehicle Loading Lid: This unique feature allows for installation in limited spaces, such as driveways, without compromising space or appearance.
- Integrated Sampling Chamber: The built-in sampling chamber streamlines your quality assurance process, saving you time and money by eliminating the need for additional installations.

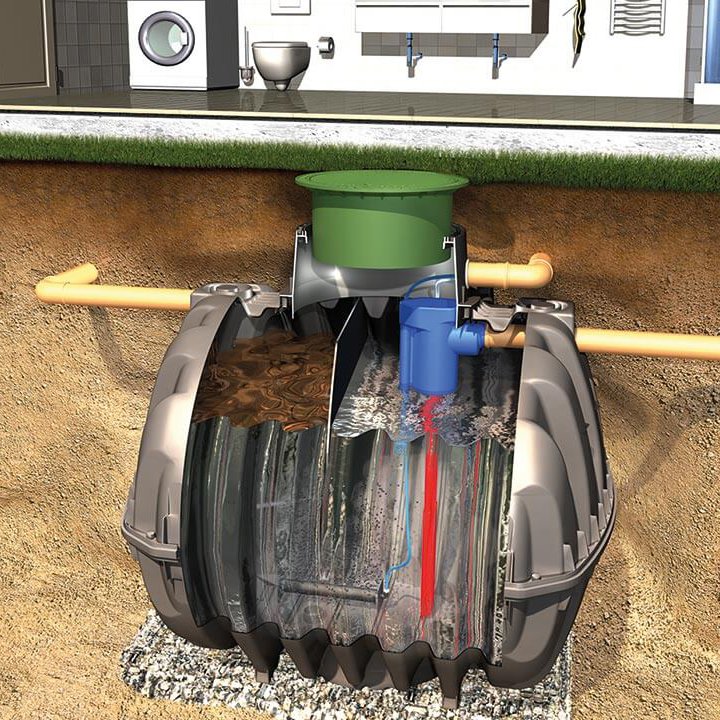

- Gravel Backfill: This installation method suits various ground conditions and is cost-effective, saving you significant installation costs compared to traditional methods.
- No Moving Parts: The simplicity of design with no moving parts or electrical components inside the tank makes maintenance easy and efficient. All servicing can be handled via an external control panel and compressor, ensuring a hassle-free experience.
- Optional Raised Outlet: This option saves you time, money, and future headaches. Install your drainage field closer to the surface, reducing excavation costs. As a result you can enjoy improved flow and fewer blockages, while potentially eliminating the need for a pumped outlet.
Unit includes as standard:
- A 4800l tank
- A mini tank dome and mini telescopic dome shaft suitable for pedestrian loading*
- Baffle
- A control unit for indoor installation (for external installation, a cabinet is required)
- Technical set up kit
- 20m hose
Delivery
All our Graf tanks are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.
If you require assistance with offloading, we may be able to offer a tail lift (lowers the tank to the ground) or HIAB (lorry with a mounted crane to winch the tank off to the nearest hardstanding area only, at an additional cost). Please contact us if this is required for delivery.
| Diameter | Ø 1680 mm |
|---|---|
| Height | 1880 mm |
| Material | HDPE / Polyethylene |
Graf One2Clean Sewage Treatment Plant - 3750L - Specifications
| Model | G50002 |
| No of Inhabitants | 6 - 7 |
| Total Volume (L) | 4800 |
| Length (mm) | 2280 |
| Width (mm) | 1985 |
| Height (mm) | 2110 |
| Nominal Inlet/Outlet (mm) | DN100/110 |
| Weight empty (Kg) | 185 |
| Inlet Invert Standard (mm) | 630 - 830 |
| Outlet Invert Standard* (mm) | 630 - 830 |
| Air Compressor Rating (watts) | 58 |
| Air Compressor Rating (dBA) | 36 |
| Tank Shell Warranty (years) | 10 |
| Technology Warranty (years) | 2 |
| BOD (mg/l) | 7 |
| SS (mg/l) | 14 |
| NH4-N (mg/l) | 0.5 |
