Enduramaxx 1000 Litre Cone Tank with 30° base
Estimate delivery costs
Your postcode helps us show you accurate delivery costs before you add to basket. We use it only to calculate shipping rates — it is not stored or shared.
Enduramaxx 1000 Litre Cone Tank with 30° base
Product Overview
The Enduramaxx 1000 Litre Cone Tank with 30° Base is designed for applications where efficient drainage and easy emptying are important. Its 30° conical base directs the stored liquid towards the outlet, making it particularly useful where complete drainage is an advantage and helping to address concerns with vortexing during discharge.
Manufactured from high-density polyethylene using a rotational moulding process, the tank provides a consistent wall thickness together with high impact and chemical resistance. The UV-stabilised construction makes it suitable for outdoor installations, while the natural version is translucent so the contents can be viewed through the tank.
With a 1,000 litre capacity and compact 1,200 mm diameter, this vertical cone tank is suitable for agricultural, food, brewing, chemical, industrial and liquid-processing applications.
Key Features
- 1,000 litre capacity
- 30° cone-shaped base
- Designed where efficient or complete drainage is required
- Helps address concerns with vortexing during discharge
- Rotationally moulded polyethylene construction
- High-density food-grade polyethylene
- Consistent wall thickness
- High impact and chemical resistant
- UV stabilised for outdoor installation
- Natural version is translucent
- Suitable for liquids up to 1.7 specific gravity
- Nitrile rubber gasket supplied on the outlet as standard
- WRAS approved when supplied in black
- Natural version is food grade
- Vertical, above-ground design
- Optional support frame available
- Suitable for a wide range of agricultural and industrial applications

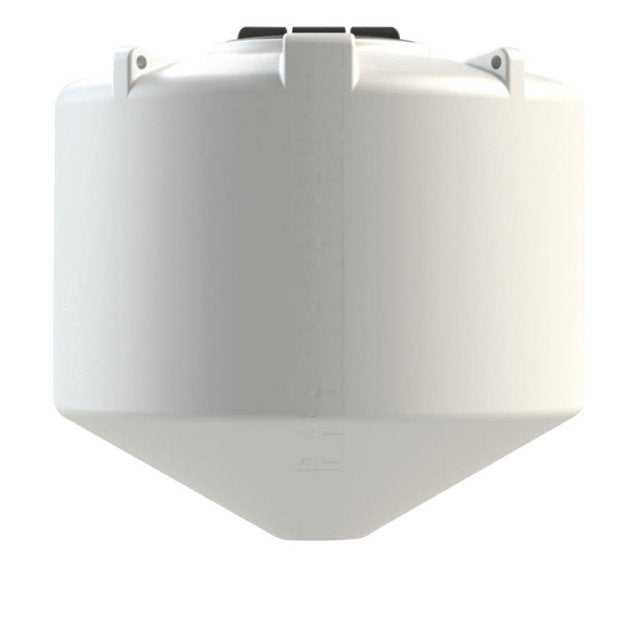

30° Cone Base for Effective Drainage
The 30° angled base is the defining feature of this Enduramaxx cone tank. The sloping bottom helps move liquid towards the outlet, making it a useful choice for applications where efficient emptying and drainage are important.
A conical bottom can be particularly beneficial for tanks used for mixing, processing, cleaning or transferring liquids, where retaining material in the bottom of a conventional flat-bottomed tank would be undesirable.
The design also helps address concerns with vortexing as liquid is discharged from the tank.
Outlet and Support Frame

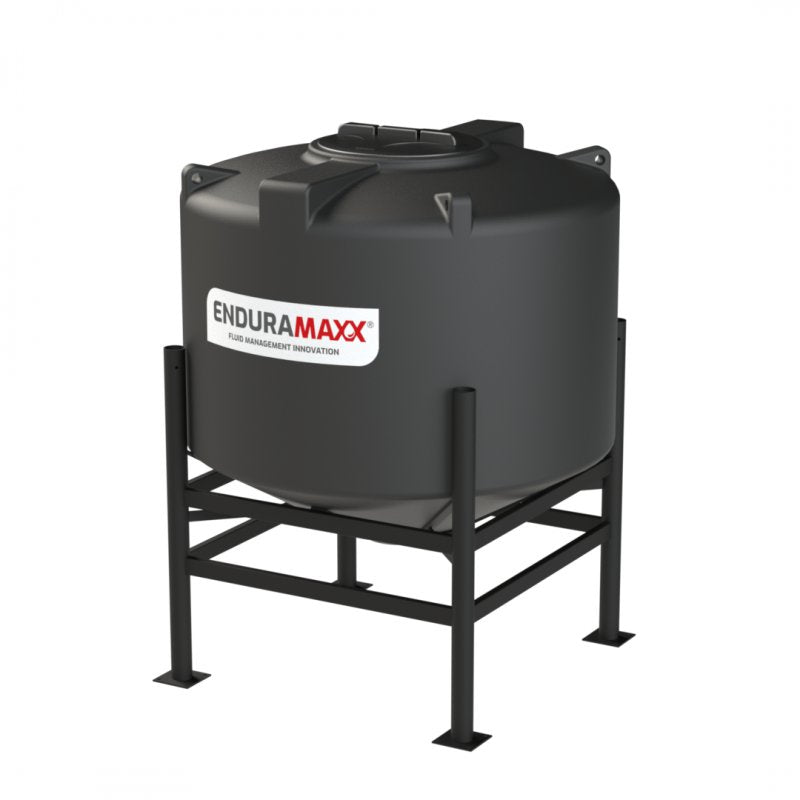

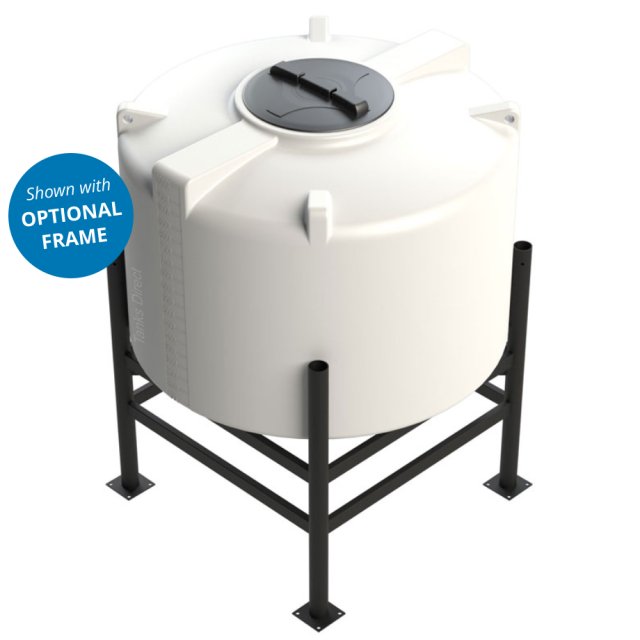

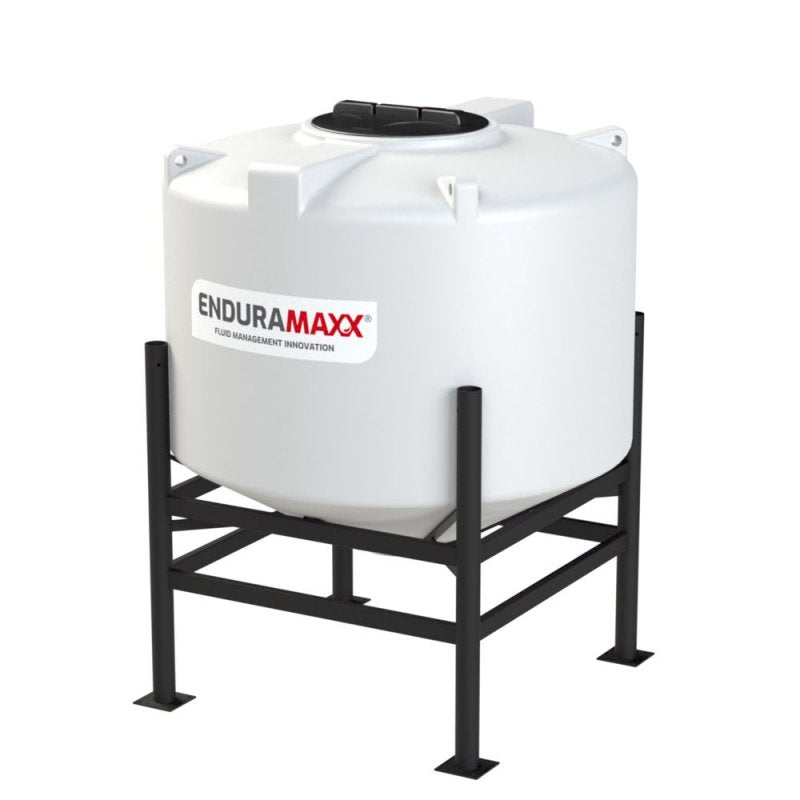

The tank is supplied with a nitrile rubber gasket on the outlet as standard. An optional support frame is available for installations requiring the tank to be raised above ground level.
When supplied with the frame, the overall height of the tank and frame is approximately 1,552 mm.
The support arrangement should be selected according to the intended application and must be capable of safely supporting the tank and its contents when full.

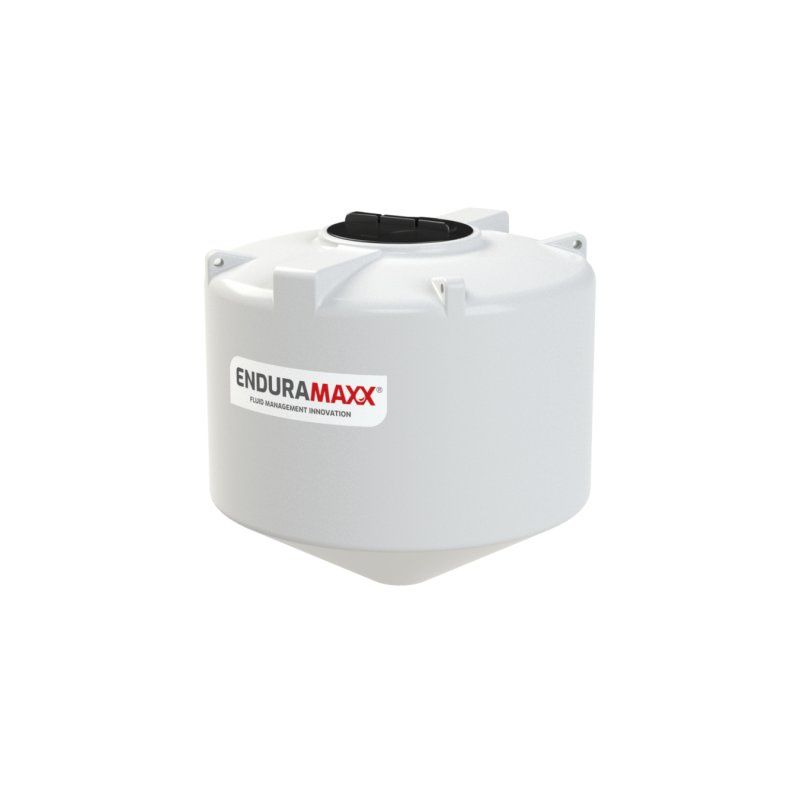

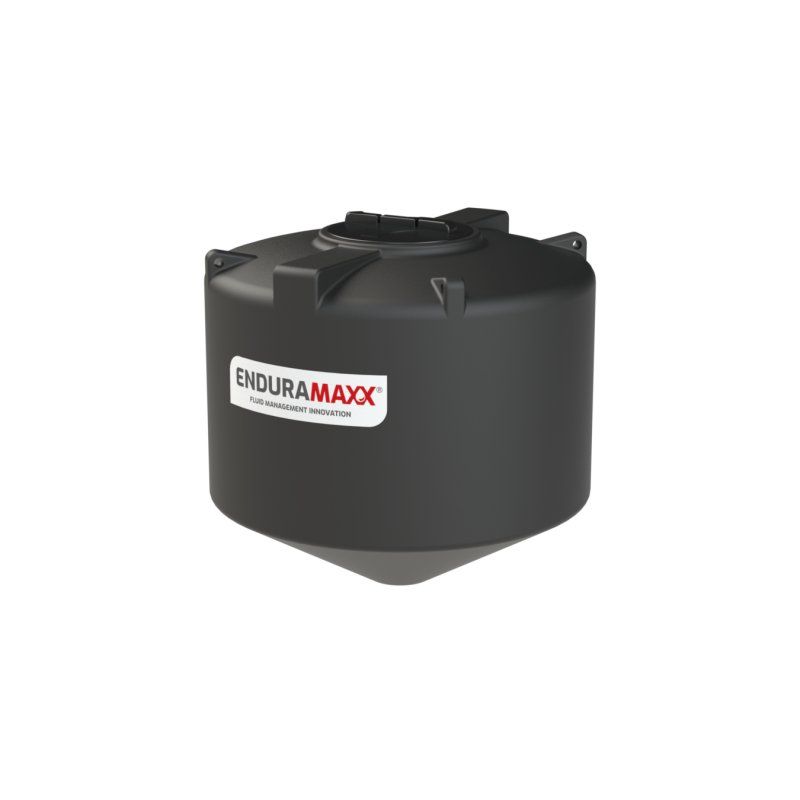

Natural and Black Options
The Enduramaxx 1000 Litre Cone Tank is available in different configurations, including natural and black.
The natural version is translucent, allowing the contents of the tank to be viewed without opening it. This can be useful for monitoring the approximate level and appearance of the stored liquid.
When supplied in black, the tank is WRAS approved. The natural version is food grade, making the choice of tank colour and configuration an important consideration when specifying the tank for a particular application.
Liquid Compatibility
The tank is manufactured from polyethylene and supplied with a standard nitrile rubber outlet gasket.
It is the customer's responsibility to confirm that the stored liquid is compatible with the tank material, outlet and gasket before purchase. Some chemicals and specialist liquids may require an alternative fitting or tank material.
Where an alternative specification is required, this should be discussed with Tanks Direct before ordering and may be subject to a price on application.
Typical Applications
The 1,000 litre cone tank can be used across a broad range of agricultural, food and industrial applications, including:
- Beer, cider and wine production
- Microbrewery applications
- Molasses storage
- Liquid feed storage
- Liquid fertiliser storage
- Chemical holding and mixing
- Industrial liquid storage
- Chemical supply
- Industrial mixing and inductor systems
- Biodiesel processing
- Biodiesel reactor applications
- Water storage
- Settlement and sludge applications
- Holding tanks
- Surge tanks
- Balance tanks
- Process mixing
The conical base makes the tank particularly useful where drainage and liquid transfer form an important part of the process.
Delivery
We recommend not to book any installation or machinery until the tank has been delivered. We will not be responsible for any additional cost occurred with delayed deliveries.
Failed deliveries may result in additional charges.
Collection may be available ex works (Please contact us in regards to this option).
| Capacity | 1000 litres |
|---|---|
| Diameter | Ø 1200 mm |
| Height | 1174 mm |
| Material | MDPE |
| Application | Agricultural |
