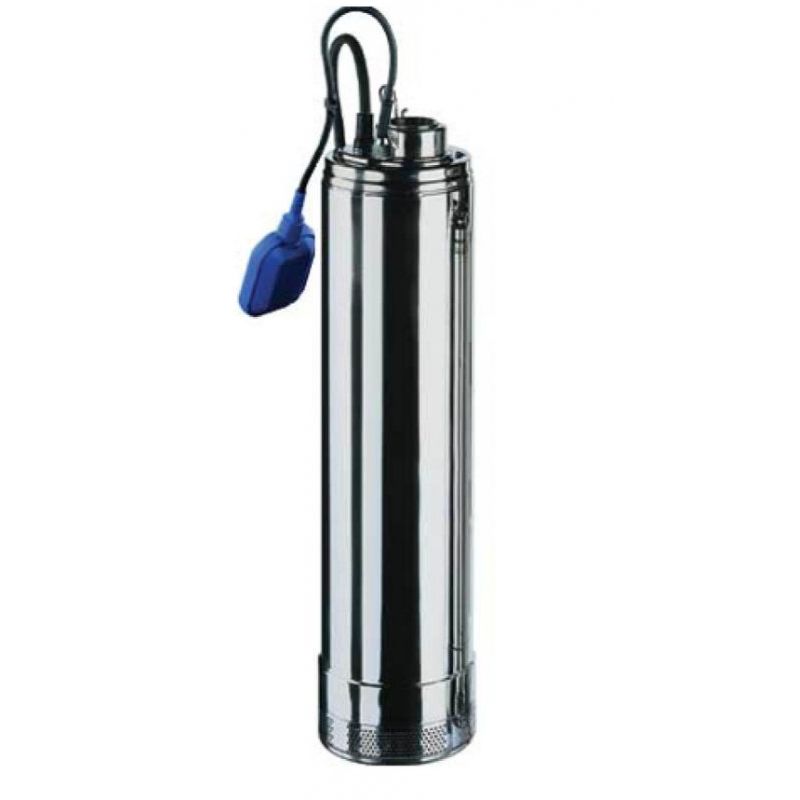

Ebara Idrogo AUTO pump
The IDROGO M 40/08 is a 5" submersible centrifugal multistage pump made of stainless steel AISI 304.
APPLICATIONS
- Moving clear water from wells & cisterns.
- Pressure boosting domestic plants
- Small-sale irrigation
- Rainwater Harvesting
- Washing vehicles
- General pressure increases
TECHNICAL DETAILS
- Equipped with twin mechanical seal with interposed oil chamber
- Supplied with 20 m of H07RN-F power supply cable (5m for IDROGO 40/06 M model)
- Single phase version with float on request (version "A")
- Available in the 230V ±10% 50Hz three-phase version
- Installation: in horizontal and vertical position
PUMP TECHNICAL DATA
- Maximum working pressure: 10 bar
- Maximum temperature of the liquid: 40°C
- Maximum immersion for pumps with 20m cable (version with floatswitch): 10 m
- Maximum immersion for pumps with 20m cable: 17 m
- Maximum immersion for pumps with 5m cable: 2 m
- Maximum solid size passage: 2.5 mm
- G1¼ discharge connection
MOTOR TECHNICAL DATA
- 2 poles self-ventilated asynchronous motor cooled via the moving liquid
- Class of insulation F
- IP68 Protection degree
- 230V ±10%, 50Hz single-phase voltage
- 400 ±10%, 50Hz three-phase voltage
- Permanent capacitor inserted and thermo-amperometric protection with automatic reset incorporated for the single phase motor
- Protection under user's responsibility for the three-phase version
MATERIALS
- External casing, motor cover, casing cover, filter and closing ring in AISI 304
- Impeller, diffuser and spacer in PPE+PS reinforced with fibreglass
- Shaft in AISI 431
- Upper mechanical seal (motor side) in Carbon/Ceramic/NBR and lower (pump side) in SiC/Carbon/NBR
