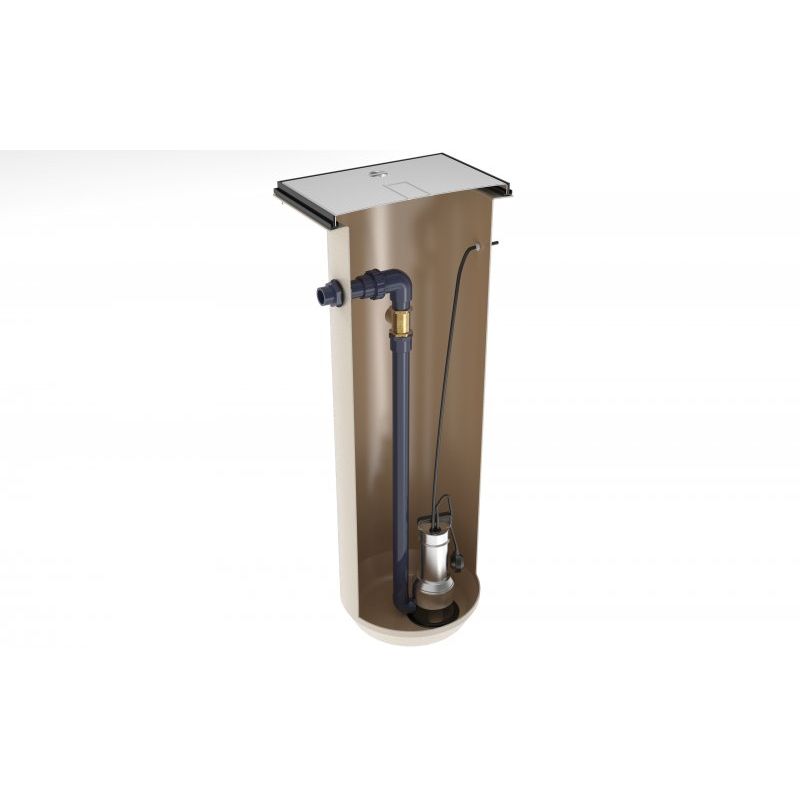

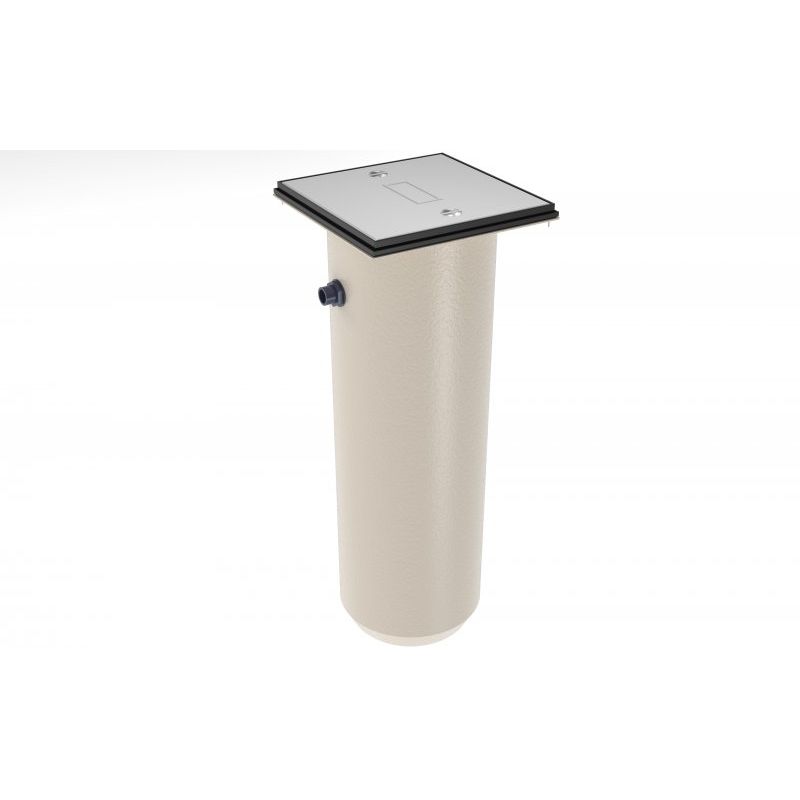

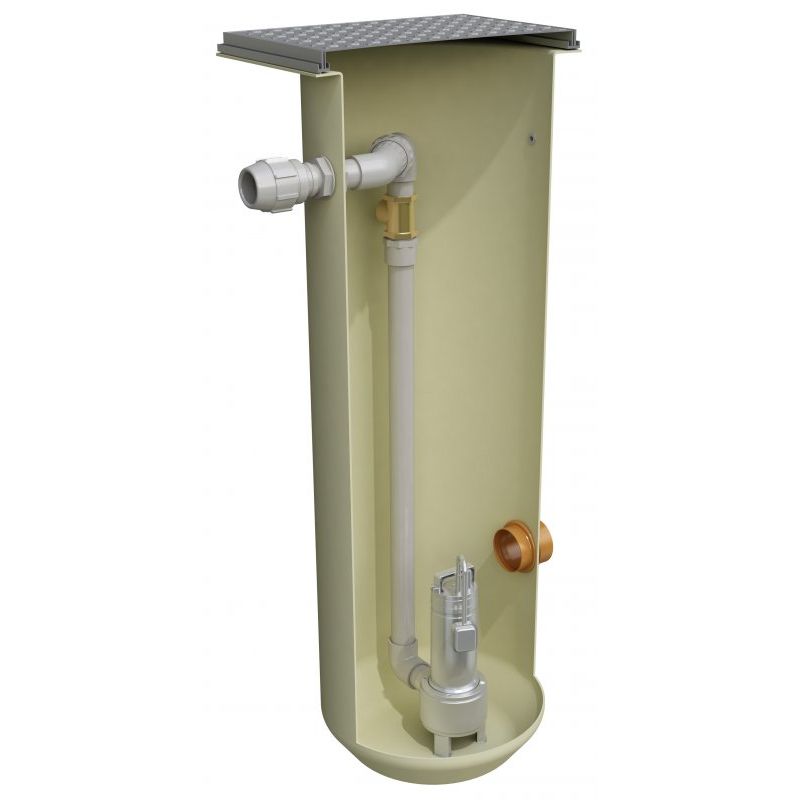

Clearwater 400L Compact Sewage Pumping Station - CWP2
Clearwater pump stations are available in various sizes and can be used to pump effluent, sewage or rainwater (please check suitability before ordering), depending on the distance from the mains and height required to pump.
Manufactured from super-tough, low-maintenance GRP, this compact pump station is engineered with the highest quality parts and fittings and quick and easy to install.
Designed for small scale applications that are built below the level of the mains sewage system, typical applications would include home extensions, outbuildings, pool houses and garden rooms.
Product Benefits
- Robust, durable and corrosion free, stainless steel submersible pumps
- Comes without inlet so you can drill on site, inlet kit available as an optional extra
- Non-return valves as standard
- Complete pre-fabricated solution ready for installation
- Vortex pump as standard
- Comes with a 10-metre cable
- Suitable to pump sewage in accordance with BS 756-2
- Fully automatic
- Tapered base to help avoid dead zones where sedimentation can build up
- Low Cost Commissioning
- Service and maintenance plans available to prolong the life of the pump systems.
| Chamber Size (mm) | Capacity (L) | Tank Material | Control Panel | Alarm | Pump Type |
| 560 x 1650 | 400 | GRP | N/A | Optional | Single |
Delivery
All our Clearwater tanks are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.
If you require assistance with offloading, we may be able to offer a tail lift (lowers the tank to the ground) or HIAB (lorry with a mounted crane to winch the tank off the delivery vehicle). Please contact us if this is required for delivery.
| Dimensions (W×L×H) | — × — × 1650 mm |
|---|---|
| Empty Weight | 50 kg |
| Material | HDPE / Polyethylene |
To size your pump stations, the key factors to take into consideration are below
- Application: domestic, residential or commercial.
- Material application: sewage, effluent or surface water.
- Inlet depth (below ground level).
- Pumping distance and lift.
- Electrical supply.
If you require assistance with sizing your Pump station, please give our sales team a ring on 01643 703358.
Low Cost Commissioning
Benefits:
- Reassurance that your system's mechanical and electrical components are in good working order
- A warranty period that only starts when your water system is commissioned, not when it leaves the factory (terms and conditions apply)
- Trouble-free operation of your system from the start
Find out more about what's included in the Commissioning of your Clearwater pump station and arrange Commissioning, read Kingspan's dedicated guide to Commissioning today.
The checks below will be carried out by a Kingspan Service Engineer and will only be checked if the unit has been installed in line with the provided installation guidelines.
- Unit is installed flat and level with safe working area around the perimeter
- All incoming and outgoing pipework has been connected
- The control panel has been mounted
- Permanent electrical supply has been fitted to the panel (extension leads or generator supplies will not be acceptable)
- The following will then be carried out by an Authorised Service Engineer:
- Check the system is installed to manufacturer's instruction
- Fit floats in tank and set the levels
- Pull float and pump cables through the ducts using drawstring provided
- Connect pump and float cables to the control panel using appropriate glands (the panel must be within 2 m of the chamber or select “enhanced commissioning”)
- Check float cable operation and terminate (stop, start, standby, alarm)
- Check pump rotation
- Run the pumps via the float switches to ensure correct operation and discharge
- Test high level alarm and beacon (if applicable)
- Leave on Auto for future use
Please note, Kingspan Commissioning covers UK mainland and certain postcode areas only. Please speak to our Team for expert advice on Commissioning.
Service and maintenance
Your pump station should be serviced bi-annually to prevent blockages or obstructions in the inlet or outlet pipes from occurring. Any service and maintenance works need to be carried out by a properly trained professional, with appropriate experience, especially with mechanical and electrical parts. For more information on service and maintenance plans, please give our team a call on 01643 703358.
