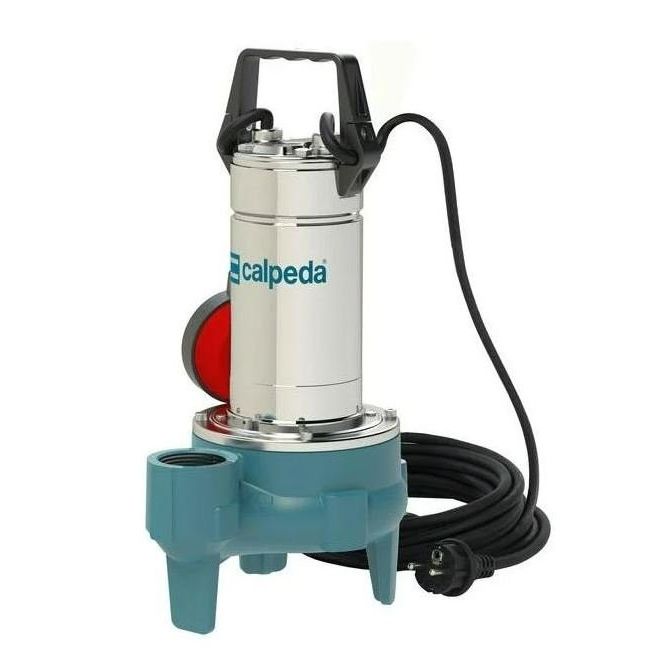

Calpeda GQS 50-15 Submersible Drainage Pump (2' Vertical Port)
Estimate delivery costs
Your postcode helps us show you accurate delivery costs before you add to basket. We use it only to calculate shipping rates — it is not stored or shared.
Calpeda GQS 50-15 Submersible Drainage Pump
The Calpeda GQS submersible drainage pump is a single-impeller submersible pump with a free-flow (vortex) impeller and with a vertical threaded delivery G2" port. This submersible sewage pump has a maximum head height of 15m and a maximum pump rating of 600 l/min.
Applications
- For domestic or industrial waste water, dirty water with solids up to 50 mm grain size, for liquids which are compatible with the pump materials
- For draining rooms or emptying tanks
- Extraction of water from ponds, streams or pits and for rainwater collection
Operating conditions
- Liquid temperature up to 35° C
- pH value: 6-11
- Maximum immersion depth: 5 m
- Minimum immersion depth: 200 mm
- Continuous duty (with submerged motor)
Features
- G 2" vertical, upward delivery port for installation in small pits, without the need for an elbow on the pump
- Cable length 10 m, pump single-phase with plug
- Easy inspection of the capacitor area
- Ring against accidental extraction of the cable
- Relief valve: the pump is fitted to a relief valve for air release around the impeller, granting a proper pump priming also after long standstill periods
- Pump casing with epoxy cataphoresis treatment joined to the external paint for a greater protection against the rust
- Handle in polypropylene, with frame in stainless steel
- Easy adjustment of the float switch: to allow the adjustment of start/stop pump levels
- The double shaft seal with oil chamber separates the motor from the water and provides further protection against accidental operation when dry
- Chamber with food/pharmaceutical machinery oil
- Impeller with epoxy cataphoresis treatment for a greater protection against the rust
- Shaft in chrome-nickel stainless steel.
- The free-form impeller (vortex) construction is particularly suitable for liquids containing solids up to 40mm
Motor
- 2-pole induction motor, 50 Hz (n ≈ 2900 rpm)
- GQV, GQS:three-phase 230 V ± 10%; three-phase 400 V ± 10%;. Cable:H07RN-F, 4G1 mm2, length10 m, without plug
- GQVM, GQSM:single-phase 230 V ± 10%, with float switch and thermal protector. Incorporated capacitor. Cable:H07RN-F, 3G1 mm2, length10 m, with plug CEI-UNEL 47166
- Insulation class F
- Protection IP X8 (for continuous immersion) Triple impregnation humidity-proof dry winding
- Constructed in accordance with:EN 60034-1; EN 60335-1, EN 60335-2-41
| Capacity | 15 litres |
|---|---|
| Dimensions (W×L×H) | 264 × — × 505 mm |
| Empty Weight | 15 kg |
