AirBREAK VQ -03-007M
Estimate delivery costs
Your postcode helps us show you accurate delivery costs before you add to basket. We use it only to calculate shipping rates — it is not stored or shared.

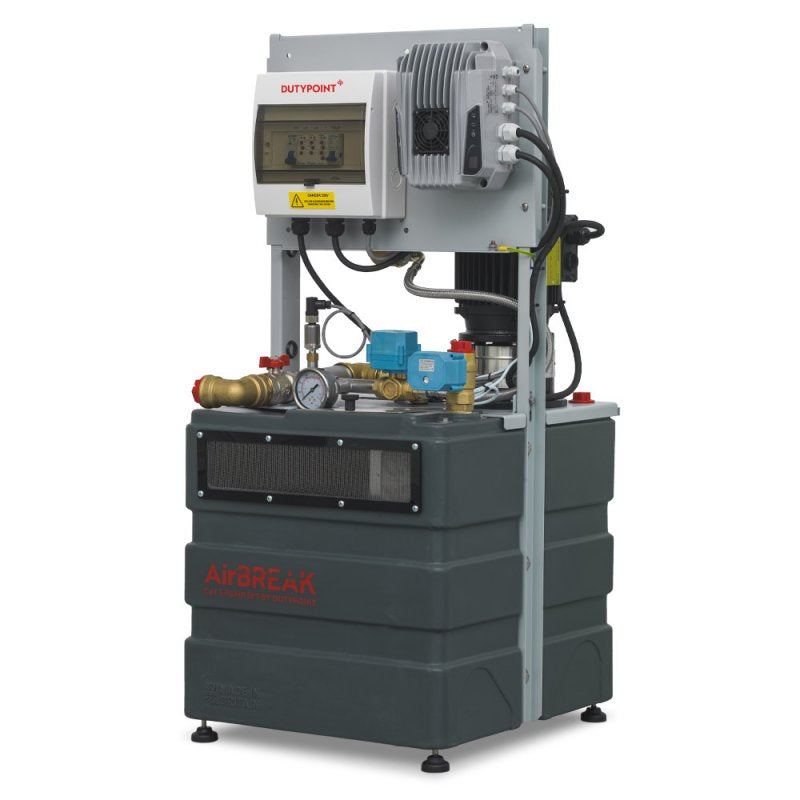

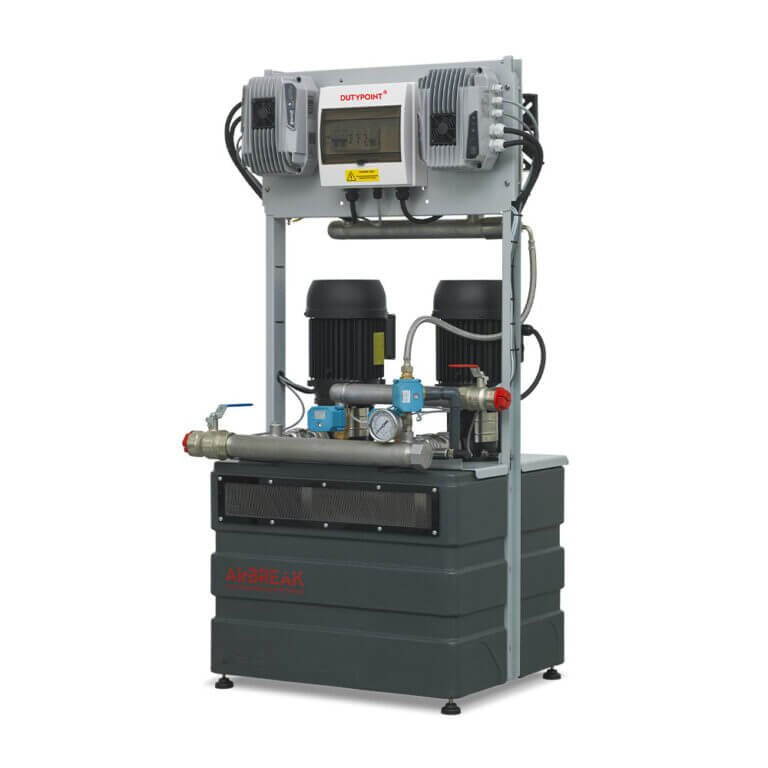

The DutyPoint AirBREAK Single VQ1-03-007M 10-005633-000 / Twin VQ2-03-007M 10-005619-000
The WRAS-approved DutyPoint AirBREAK single pump VQ1-03-007M and twin pump VQ2-03-007M are a compact, high-performance booster sets that combines a break tank with a variable speed single pump, designed specifically for Category 5 backflow protection applications. Available in both single and twin pump configurations, it delivers exceptional output while minimising footprint. Featuring a unique immersible pump design, the VQ offers unrivalled performance for its size, making it ideal where space is at a premium.
The advanced variable speed control system incorporates intelligent pump management to ensure maximum efficiency across a wide range of duty requirements and in a twin configuration offer a Duty / Standby functionality for when a backup pump is needed.

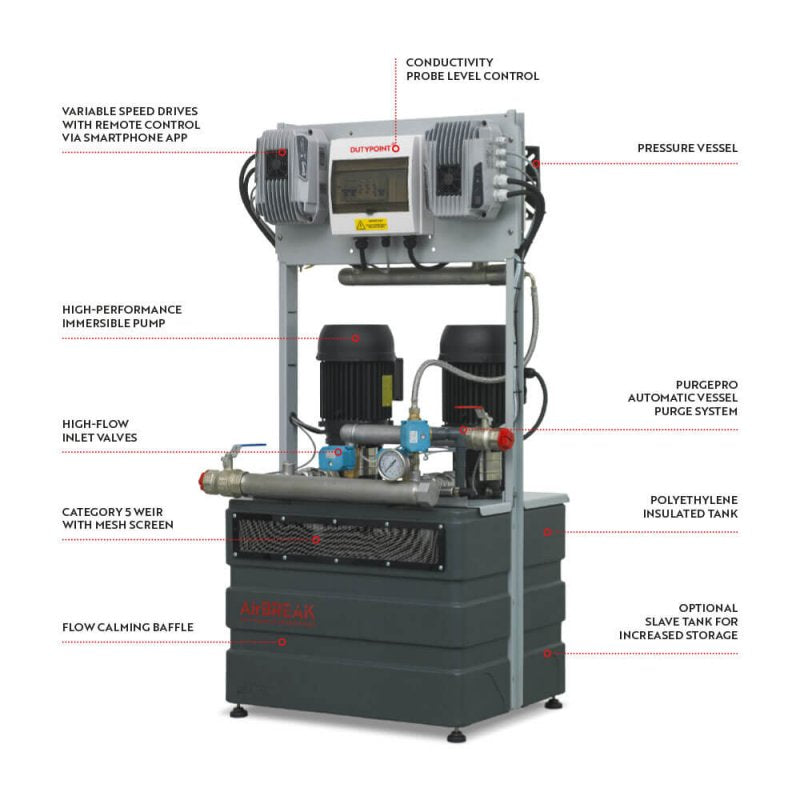

Product overview:
- Industry-leading performance for its footprint
- WRAS Approved
- Single or twin pump options
- Dual full-bore motorised inlet valves for reliable ultra-high top-up flow rate
- Integrated flow calming system to reduce turbulence
- 90-litre (single pump) or 120-litre (twin pump) nominal tank capacity
- 1no or 2no 8-litre pressure vessels
- Common fault volt-free contact
- Anti-seize technology
- PurgePRO automatic pressure vessel purge function
- Motorised inlet valve for accurate, high-flow tank fill
- Advanced EMC compatibility and power factor
correction (PFC) - BMS connectable
- Low-water protection device / dry run protection
- Anti-seize technology
- Smartphone app control
- Insulated tank
Applications:
- Wash down in bin stores
- Dentist’s rinsing equipment
- Laboratory water supplies
- Single hosepipe supplies
Plus any application where category 5 protection is required - mortuaries, abattoirs, zoos, healthcare premises, etc...
Single specifications
| SKU | 10-005635-000 |
| In Stock | YES |
| Brand | Dutypoint |
| Manufacturer's Part Number | 10-005635-000 |
| Model | AirBREAK VQ1-03-007M |
| Power Supply | 240 Volts - 50hz |
| kW Rating | 0.45 |
| Flow range (Model Dependant) | 0.2 - 4.0 L/s |
| Pressure Range (Model Dependant) | 1 bar to 16 bar |
| Minimum Liquid Temperature | 2°C |
| Maximum Liquid Temperature | 23°C |
| Inlet Connection | 1.25" BSP |
| Outlet Connection | 1.5" BSP |
| Dimensions | L 450 x W 450 x H 1025 |
| Capacity | 90 Litres |
Twin Specifications:
| SKU | 10-005619-000 |
| In Stock | YES |
| Brand | Dutypoint |
| Manufacturer's Part Number | 10-005619-000 |
| Model | AirBREAK VQ2-03-007M |
| Power Supply | 240 Volts - 50hz |
| kW Rating | 0.45 |
| Flow range (Model Dependant) | 0.2 - 4.0 L/s |
| Pressure Range (Model Dependant) | 1 bar to 16 bar |
| Minimum Liquid Temperature | 2°C |
| Maximum Liquid Temperature | 23°C |
| Inlet Connection | 1.25" BSP |
| Outlet Connection | 1.5" BSP |
| Dimensions | L 600 x W 542 x H 1316 |
| Capacity | 120 Litres |
