AirBREAK FC1-03-011M
Estimate delivery costs
Your postcode helps us show you accurate delivery costs before you add to basket. We use it only to calculate shipping rates — it is not stored or shared.
The DutyPoint AirBREAK FC1-03-0011 10-005610-000

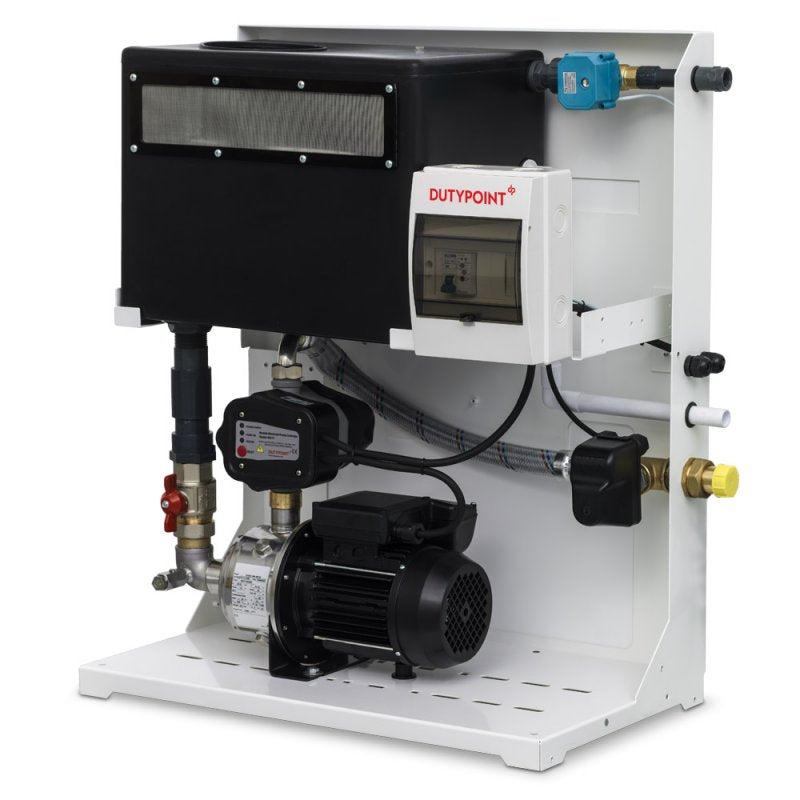

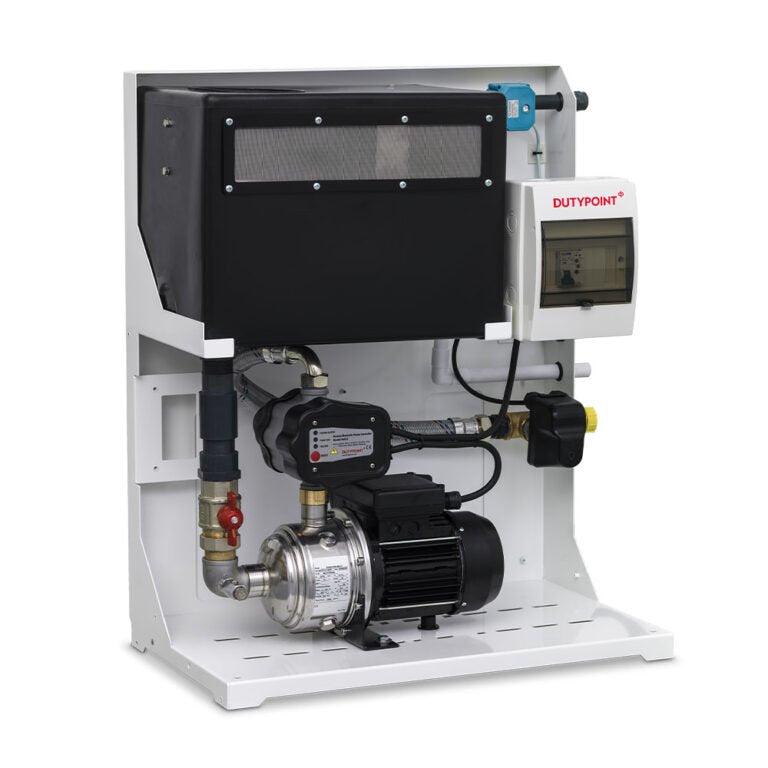

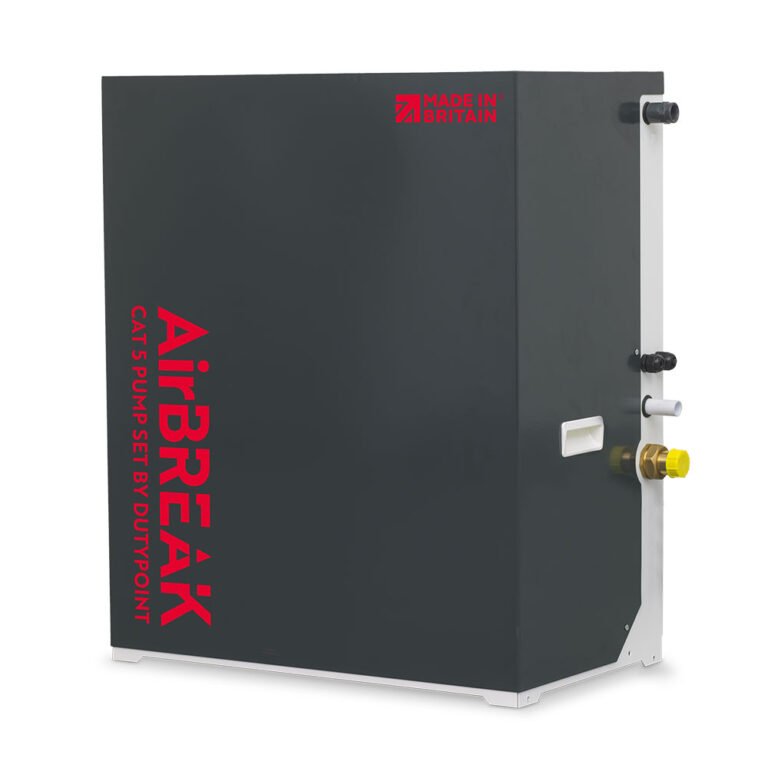

The WRAS-approved DutyPoint AirBREAK FC1-03-011M is a compact combined single pump break tank and end-suction booster pump designed for Category 5 backflow protection applications. The set can be freestanding or wall mounted and is a quiet running system with an integrated electronic pressure controller, all housed within a robust powder-coated mild steel enclosure.

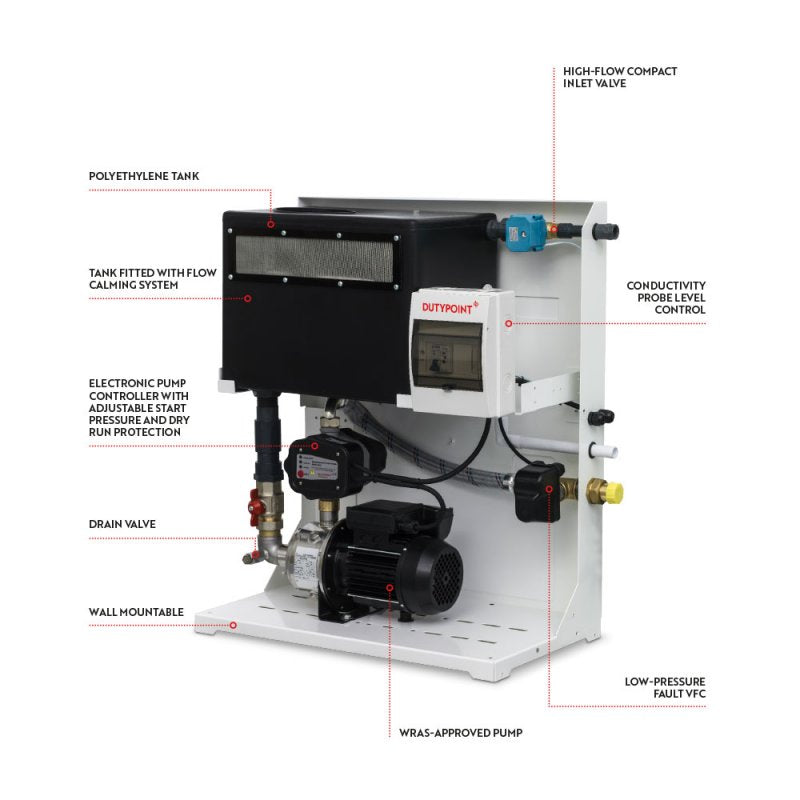

Product overview:
- WRAS Approved
- Durable steel enclosure design
- High-level alarm VFC
- Common fault volt-free contact
- Motorised inlet valve for accurate, high-flow tank fill
- BMS connectable
- Low-water protection device / dry run protection
- Anti-seize technology
- Single phase
- 36 Litre Nominal Tank Capacity
- Compact design
Options upon request: :
- Weatherproof version with insulated enclosure, frost stat and heater
- High-level alarm VFC
- Weir overflow catch tray with a piped outlet to waste
- Drip tray
- Wall mounting bracket
Applications:
- Wash down in bin stores
- Dentist’s rinsing equipment
- Laboratory water supplies
- Single hosepipe supplies
Plus any application where cat 5 protection is required - mortuaries, abattoirs, zoos, healthcare premises, etc...
| SKU | 10-005609-0000 |
| In Stock | YES |
| Brand | Dutpoint |
| Manufacturer's Part Number | 10-005609-000 |
| Model | AirBREAK FC1-03-007M |
| Power Supply | 240 Volts - 50hz |
| kW Rating | 0.45 |
| Flow range (Model Dependant) | 0.2 - 1,8 L/s |
| Pressure Range (Model Dependant) | 1 - 8 Bar |
| Minimum Liquid Temperature | 2°C |
| Maximum Liquid Temperature | 23°C |
| Inlet Connection | 1/2" BSP |
| Outlet Connection | 1"BSP |
| Capacity | 36 litres |
|---|---|
| Dimensions (W×L×H) | 650 × 389 × 798 mm |
| Empty Weight | 35 kg |
