ABS Sulzer Sanimax R202C - Aggressive Liquids

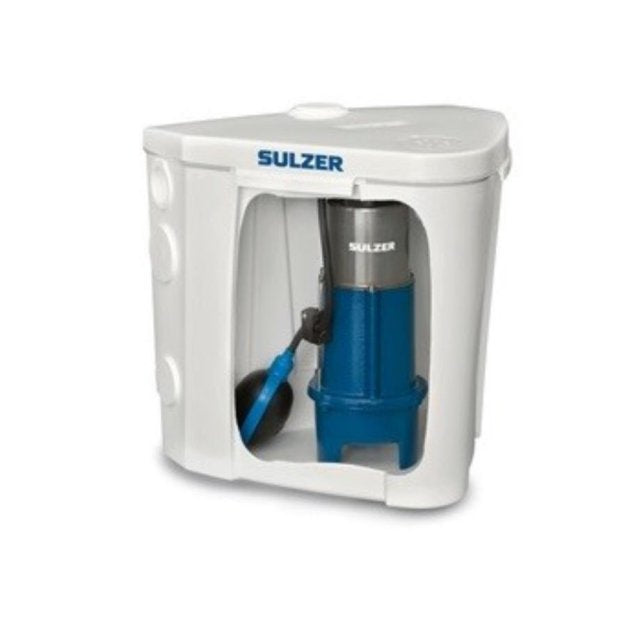

Complete wastewater pumping unit for installation at floor level and fitted with a submersible pump from the Robusta or MF ranges. Suitable for the removal of liquids containing solid particles up to 30 mm from wash-hand basins, domestic washing machines, or showers, from areas below the sewer level in accordance with EN 12050-2.
Features
- Ready-for-use, plug-in unit with Schuko plug.
- Compact triangular design optimises space beneath a hand-wash basin.
- Can be fitted with Robusta 202 TS or MF 154 & 324 pumps, complete with non-return valve and level control. A separate check valve should be used at heads over 5 m.
- Solids handling up to 10 mm for Robusta, 20 mm for MF 154, and 30 mm for MF 324.
- Seven ports (5 x 40 mm, 2 x 50 mm), ready-prepared with seals, which can be used for inflow, discharge, power cable, or flexible hose connection to a washing machine (¾'' adaptor supplied).
- Odour-tight lid with odour lock and venting, including charcoal odour filter and overflow protection.
- Alarm float switch available as accessory.
- Sanimax R 202C for aggressive liquids. It is the duty of the user to check the suitability of the materials for the particular application.
Delivery
All our Waste water pumps are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.
| Dimensions (W×L×H) | 400 × 345 × 390 mm |
|---|---|
| Material | HDPE / Polyethylene |
| Tank Use | Sewage |
| Category | Above ground |
Pump Station Commissioning
Full system inspection
Levels inspection
Manway check for obstruction
Mount control panel (if not in place)
Check correct load to panel
Check correct cable size
Check correct power supply
Set the overloads
Lower pumps via guiderail onto stools using an A-frame if required
Pull pump cables through ducting
Pull float cables through ducting
Set floats to correct operating position
Wire cables into control panel
Fill system with water
Full test of pump station
Sign-off and certification
Warranty and documentation provided
