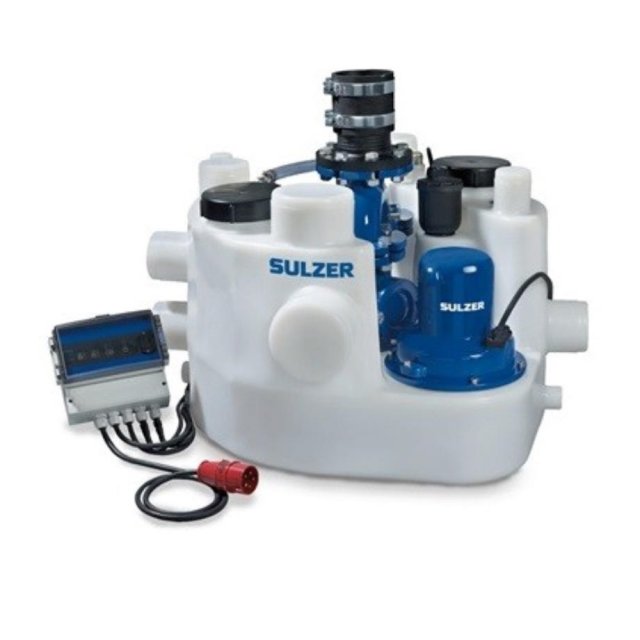

ABS Sulzer Sanimat 1002-D01*4-X
Flood-proof, double lifting station, for automatic sewage pumping from areas below the backwash level in accordance with EN 12050-1. Ideal for effective dewatering of domestic residences or commercial developments. Suitable for new installations or for renovation of old buildings.
Features
- Plug-in unit with CEE plug and phase sequence changeover facility.
- Easily transported and fitted. Compact dimensions allow passage through a standard door opening.
- Dynamic pressure level sensor on the tank, with separate sensors for inflow level and high-water alarm.
- Trouble-free maintenance thanks to simple removal of the motor housing.
- Five horizontal inlet ports (4 x DN 100, 1 x DN 150) and three vertical (2 x DN 100, 1 x DN 150). Vertical vent line DN 70.
- Two small diameter ports (DN 40/50) suitable only for wastewater.
- DN 40 is suitable for connection of a hand membrane pump.
- Discharge flange DN 80, plus flanged socket with 4" sleeve and clips (for discharge pipe DN 80/100).
- Direct toilet connection possible in the case of wall-mounted WC units.
- Integrated valve system consisting of two ball-type, non-return valves.
- Two pumps; very quiet thanks to 4-pole, slow-running motors.
- Vortex impeller with large free passage and rear blade mounting, for reliable pumping of both faecal and faecal-free sewage.
- Sloping container floor prevents deposits.
- Built-in mains alarm (visual and acoustic), can be converted to mains-independent by inserting battery.
- Maximum allowable temperature of medium is 40 °C, or up to 60 °C intermittent (max. 5 minutes).
Delivery
All our Waste water pumps are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.
| Dimensions (W×L×H) | 790 × 965 × 561 mm |
|---|---|
| Material | HDPE / Polyethylene |
| Tank Use | Sewage |
| Category | Above ground |
Pump Station Commissioning
Full system inspection
Levels inspection
Manway check for obstruction
Mount control panel (if not in place)
Check correct load to panel
Check correct cable size
Check correct power supply
Set the overloads
Lower pumps via guiderail onto stools using an A-frame if required
Pull pump cables through ducting
Pull float cables through ducting
Set floats to correct operating position
Wire cables into control panel
Fill system with water
Full test of pump station
Sign-off and certification
Warranty and documentation provided
