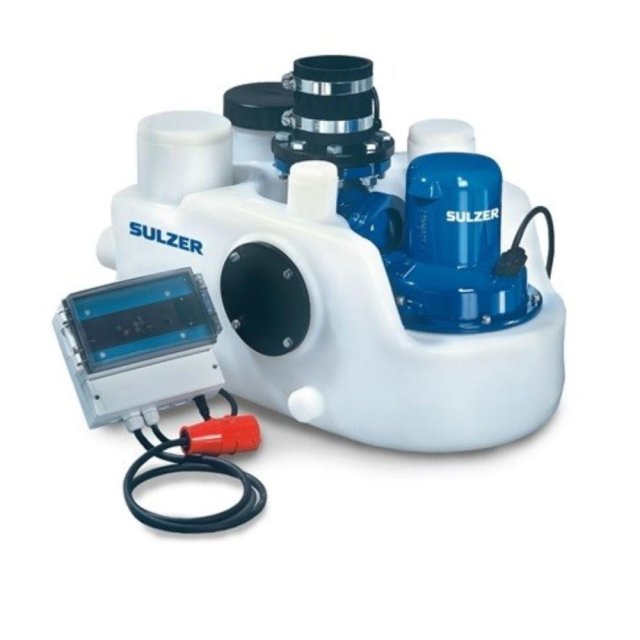

ABS Sulzer Sanimat 1000-W01*4-X
Flood-proof, single lifting station, for the removal of wastewater and sewage from areas below the sewer level in accordance with EN 12050-1. Ideal for effective dewatering of houses with one or
Two living units and for new buildings or renovations
Features
- Plug-in unit with earthed plug (230 V) or CEE plug (400 V) and phase sequence changeover facility.
- Easily transported and fitted. Compact dimensions allow passage through a standard door opening.
- Dynamic pressure level sensor on the tank, with separate sensors for inflow level and high-water alarm.
- Trouble-free maintenance thanks to simple removal of the motor housing.
- Four horizontal inlet ports (2 x DN 100, 2 x DN 70) and two vertical (1 x DN 100, 1 x DN 150). Vertical vent line DN 70. DN 40 port is suitable for the connection of a hand membrane pump.
- DN 100 horizontal inlet ports are at different levels (180 and 220 mm) allowing for flexible installation connection.
- Direct toilet connection possible in the case of wall-mounted WC units.
- Discharge flange DN 80, plus flanged socket with 4" sleeve and clips (for discharge pipe DN 80/100).
- Integrated valve system consisting of ball-type, non-return valve.
- Very quiet running thanks to 4-pole, slow-running motor.
- Vortex impeller with large free passage and rear blade mounting, for reliable pumping of both faecal and faecal-free sewage.
- Sloping container floor prevents deposits.
- Built-in mains alarm (visual and acoustic), can be converted to mains-independent by inserting battery.
- Maximum allowable temperature of medium 40 °C, or up to 60 °C
- intermittent (max. 5 minutes).
Delivery
All our Waste water pumps are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.
| Dimensions (W×L×H) | 500 × 800 × 423 mm |
|---|---|
| Material | HDPE / Polyethylene |
| Tank Use | Sewage |
| Category | Above ground |
