800 Litres POLY above ground Grey water pump station
Estimate delivery costs
Your postcode helps us show you accurate delivery costs before you add to basket. We use it only to calculate shipping rates — it is not stored or shared.

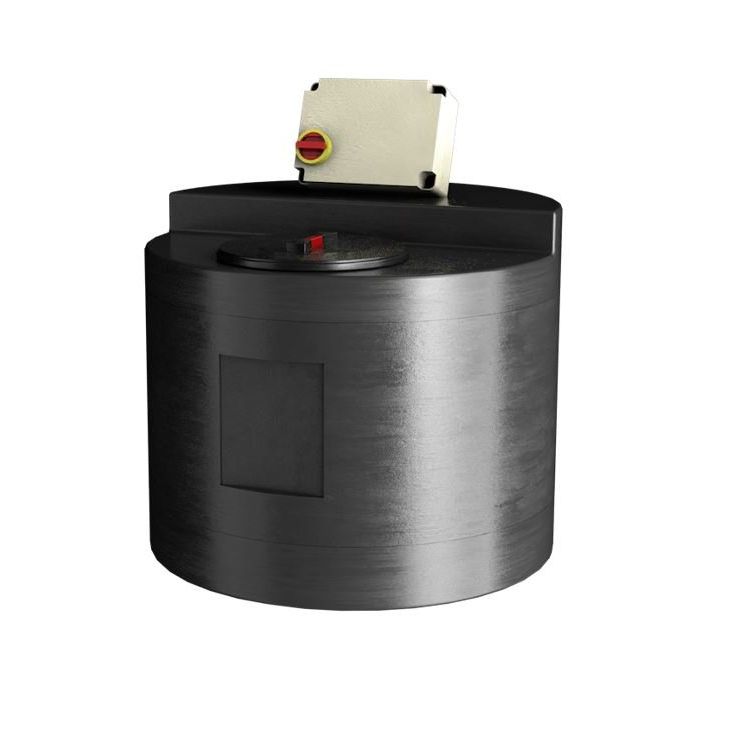

800 Litres POLY Above ground Single Grey Water Pump station
The complete kit for collection of grey water, however, not suitable for foul or sewage waste from toilets. This system is delivered to site as a complete package, including all the internal pipework and the drainage pump. Designed for easy installation, in mind. Delivered as a complete package, including all internal pipework and the drainage pump.
A small, compact water pumping station, suitable for residential, commercial, industrial and office/professional spaces.

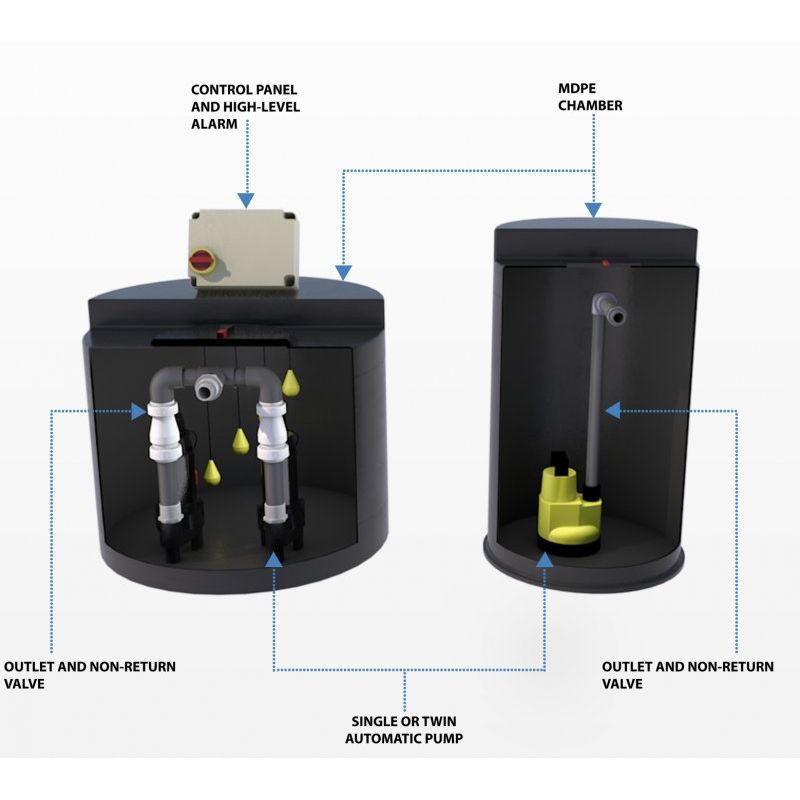

Grey Water Pumping Station includes:
- MDPE chamber
- Soft close Non-Return Valve
- Internal 2'' PVC (class C) discharge pipe work kit
- Seal for incoming and outgoing pipework (4" & 2")
- 12 months warranty
| Model Ref | 6VX | 10VX | MC |
|---|---|---|---|
| Impeller Type | Vortex | Vortex | Macerator |
| Power Supply | 230
~1ph~50hz |
230
~1ph~50hz |
230
~1ph~50hz |
| Rated Power | 0.37kW | 0.75kW | 1.2kW |
| Rated Current | 1.9A | 4.0A | 9.2A |
| Max Head | 6 m | 10 m | 16 m |
| Max Flow Rate | 5.5l/s | 7.9l/s | 1.8l/s |
| Cable Length | 10 m | 10 m | 10 m |
| Free Passage | 50 mm | 50 mm | Macerator |
Optional extras
- High Level Alarm
- Telemetry Alerts
- Battery Backup
Optional extras explained
High Level Alarm - Recommended to prevent the unit becoming too full. Installed to alert high fluid levels in the unit when connected to a float switch.
Telemetry Alerts - Designed to alert you of any issues within the system
Battery backup - Ensure the pump(s) would operate in the event of a mains power outage.

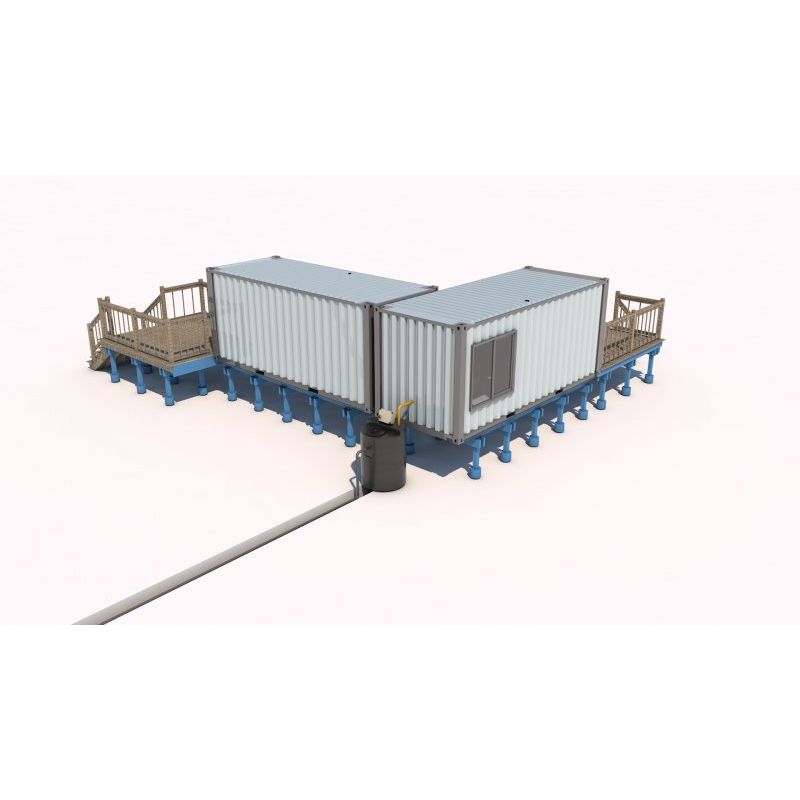

As the system is being installed above ground, you will need to check the levels to ensure you can achieve a gravity fall into the chamber.
Delivery
All our Above ground units are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.
If you require any specific requirements regarding delivery, please call us before order is placed, where we will try and accommodate this facility for you.
| Dimensions (W×L×H) | 1000 × 1000 × — mm |
|---|---|
| Material | HDPE / Polyethylene |
| Tank Use | Above Ground |
| Category | Above ground |
