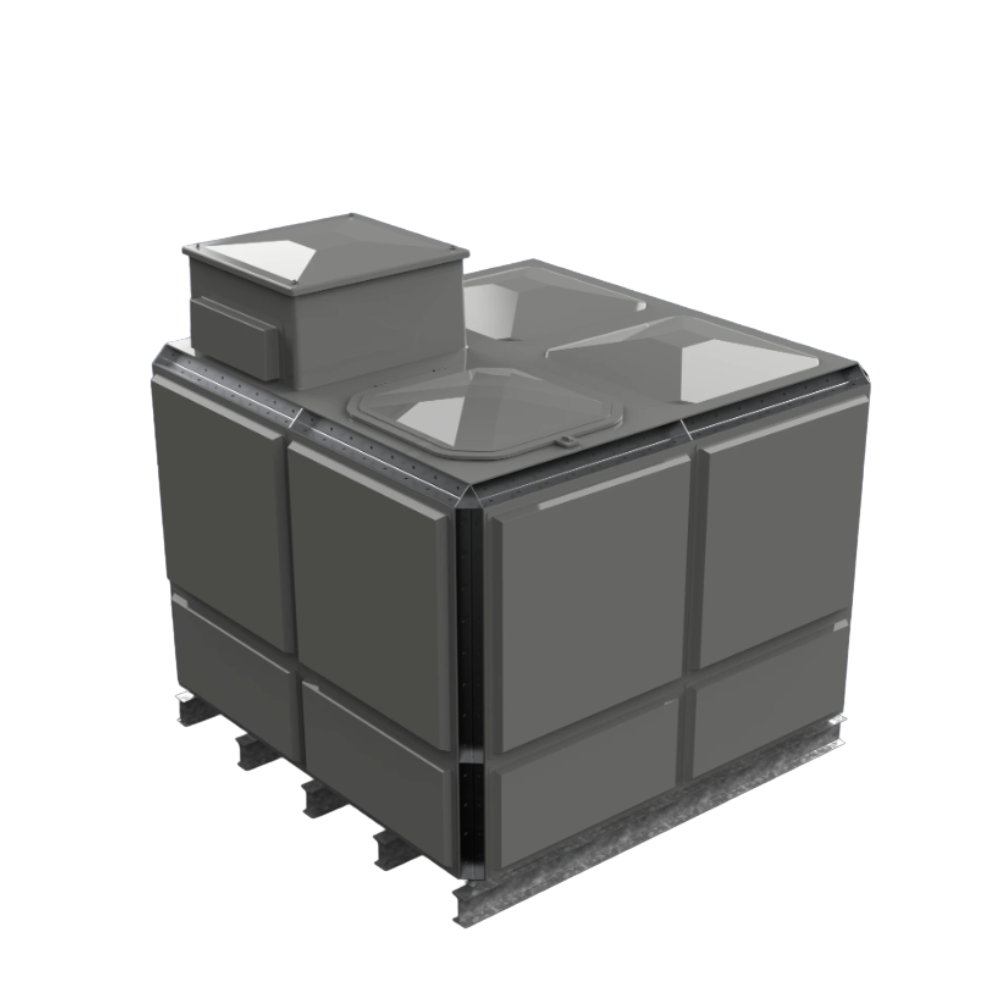

7627 Litre GRP Sectional Water Tank, Totally Internally Flanged, AB Airgap (TIF)
Estimate delivery costs
Your postcode helps us show you accurate delivery costs before you add to basket. We use it only to calculate shipping rates — it is not stored or shared.
7627 Litre Sectional Water Tank, Totally Internally Flanged (TIF)
7627 Litre GRP Sectional Water Tank, a sectional tank with an internally flanged base and internally flanged sides. Modular construction utilising bolt together panels suitable for on-site assembly.
Insulated and WRAS approved for use with potable water. Suitable for a variety of applications including process cooling, rainwater harvesting and many other systems and processes where containment of water is necessary. All gaskets, seals and fixings for assembly are included. Available for self-assembly, or on site assembly is available by qualified engineers for an additional cost.
TIF tanks are suitable for positioning onto a flat, level and continuous foundation, normally a structural concrete slab.
TIF tanks require a minimum of 500 mm working clearance all around the tank, a minimum of 500 mm above the man-way height and/or 350 mm above any raised float valve housing.
Optional Extras:
- Screened lid vent
- Screened overflow ¾'' (22 mm) up to 4"
- Screened warning pipe ¾'' (22 mm)
- BSP female tank connector 1" up to 4"
- Lid mounted level switch to suit high or low warning Temperature sensor
Important: All water storage tanks supplying water to a potable system require pre-commission cleaning and sterilisation, we can also carry out this work and issue the appropriate certificates.
A Totally Internally Flanged Tank (TIF) is one of the most cost-effective sectional tank format and is suitable for: Positioning onto a flat, solid, level and continuous foundation.
Applications where there is sufficient working room all around the tank.
Comprising: Internally flanged base, internally flanged sides, internally flanged roof.
Insulated to the sides and cover only.
Specification:
- Insulation: 38 mm Fully Encapsulated to Sides
- Panel Size: 1000 x 1000 mm
- Side Panels: Internally Flanged
- Base Panels: Internally Flanged
- Heavy Duty Lid: Internally Flanged
- Fixings: Stainless Steel
- Man way: Included, providing 800 x 800 mm access opening
- Foundation Levelling Steels: Included (To suit flat structural foundation pad)
| Airgap | AB |
| Nominal Capacity | 7627 Litres |
| Single or twin compartment (Divided) | Single |
| External Dimensions | 2250 x 2250 x 1900 mm high |
| Assembly area required | 50 mm to 3 sides, 600 mm to one face - Height Required 2575 mm |
Does your water tank need a clean?
Water can pose a number of risks if not maintained correctly, with this in mind we can offer the below service for your GRP tanks.
Annual Disinfection Information and Options
- Designed for easy installation, saving time and money
- We can offer monthly, yearly and fixed priced packages ranging from 1-3 years
- All work is carried out by CSCS qualified engineers
- Tank upgrade works available, bringing the old tanks up to current regulations
- Full tank replacement works available
- Legionella risk assessments including schematic drawings if required
- Microbiology analysis - water sampling via UKAS approved laboratories
- Building flush and mains injection
- Commissioning of booster sets
- Servicing of water softeners and booster sets
- Replacement of hollow roof struts.
- Insulating of existing cold water storage tanks
Delivery
All our GRP Sectional tanks are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.
If you require assistance with offloading, we may be able to offer a tail lift (lowers the tank to the ground) or HIAB (lorry with a mounted crane to winch the tank off the delivery vehicle). Please contact us if this is required for delivery.
| Capacity | 7627 litres |
|---|---|
| Dimensions (L×W×H) | 2250 × 2250 × 2225 mm |
| Approval | WRAS Approved |
