70 Litre ATV Sprayer Tank
Estimate delivery costs
Your postcode helps us show you accurate delivery costs before you add to basket. We use it only to calculate shipping rates — it is not stored or shared.
70 Litre ATV Sprayer Tank
Product Overview

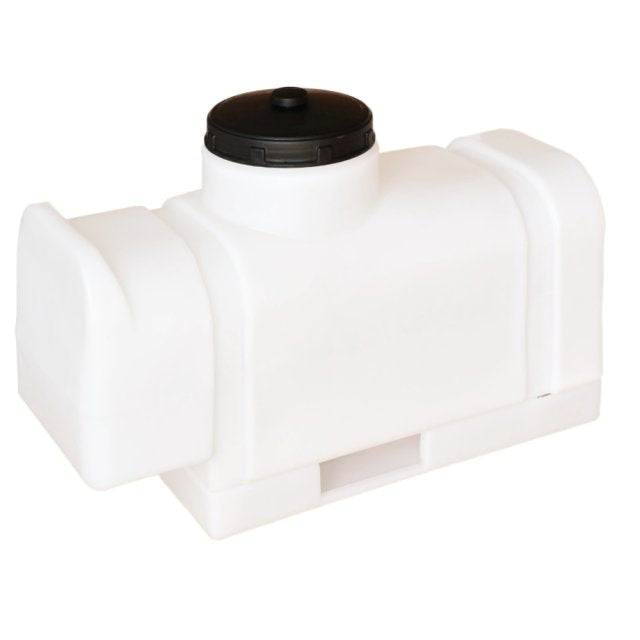

The 70 Litre ATV Sprayer Tank is a compact and practical liquid storage solution specifically designed for use with ATVs, quad bikes and other mobile agricultural and outdoor equipment.
Manufactured from durable MDPE / polyethylene, this specialist D-shaped tank provides a nominal capacity of 70 litres, equivalent to approximately 15 gallons. Its compact shape and relatively low weight make it well suited to ATV-mounted spraying and liquid transportation applications where space is limited and mobility is important.

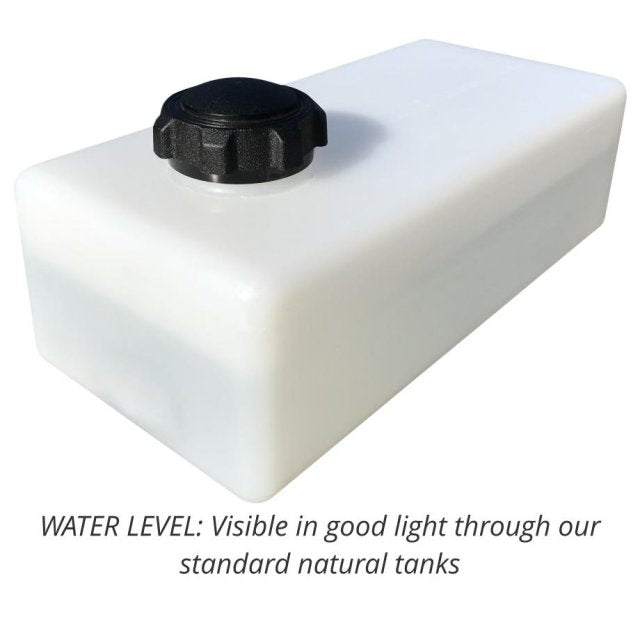

The tank is manufactured as standard from natural translucent medium-density polyethylene, allowing the approximate liquid level to be viewed through the tank wall. This makes it easy to monitor the remaining contents while working in the field.
The tank features a 1/2" BSP female outlet positioned at the bottom of the tank and is supplied with a black 8" vented screw cap. Because the outlet is located on the underside of the tank, a suitable base may be required to support the tank and provide clearance around the outlet.
Two base options are available: a short base and an extended base, providing additional flexibility depending on the intended ATV installation.
With dimensions of approximately 320 × 835 × 590 mm and an empty weight of approximately 6 kg, this tank provides a useful combination of compact construction, low weight and practical liquid capacity.
Key Features
- 70 litre nominal capacity
- Approx. 15 gallons
- Specialist ATV sprayer tank
- Designed for ATV and quad bike applications
- D-shaped design
- Manufactured from MDPE / polyethylene
- Natural translucent finish as standard
- Approximate liquid level can be viewed through the tank
- Approx. 6 kg empty weight
- Dimensions of approximately 320 × 835 × 590 mm
- 1/2" BSP female outlet
- Bottom-mounted outlet
- Black 8" vented screw cap
- Two optional base sizes available
- Suitable for agricultural and outdoor applications
- Suitable for spraying and liquid transportation
- Coloured tanks available to order
- Short and extended base options
- 8 mm bolts required to attach the base, not supplied
Specialist ATV Design

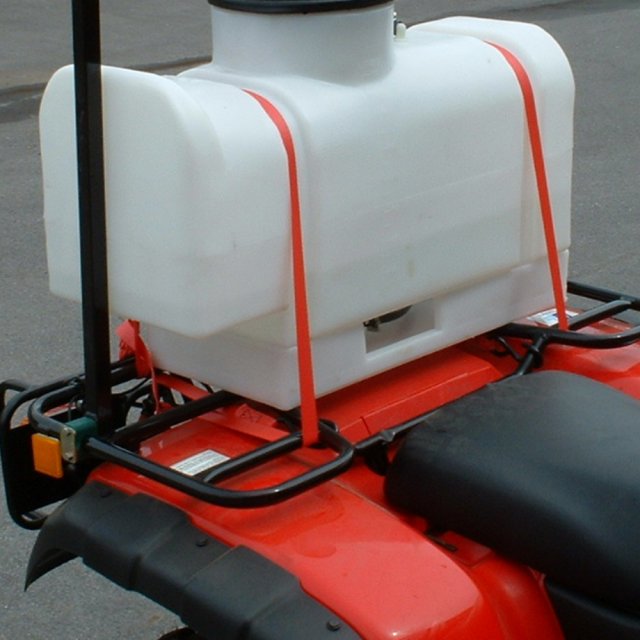

The 70 Litre ATV Sprayer Tank has been designed specifically around the requirements of ATV and quad bike users.
Its D-shaped configuration provides a practical form for mounting to suitable ATV equipment, while the 70 litre capacity offers a useful supply of liquid without the bulk of a larger agricultural tank.
The tank is particularly suitable for applications where liquid needs to be transported over fields, tracks, gardens, estates and other areas that may not be accessible to conventional vehicles.
Potential applications include:
- Agricultural spraying
- ATV spraying
- Weed control
- Fertiliser application
- Pesticide spraying, where the liquid is compatible with the tank material
- Grounds maintenance
- Estate management
- Horticultural applications
- Irrigation
- General liquid transportation
- Outdoor maintenance
The tank should only be used with liquids that are confirmed as compatible with the MDPE / polyethylene construction and associated fittings.
D-Shaped Construction
The D-shaped design provides a compact profile that is well suited to ATV-based installations.
The overall tank dimensions are approximately 320 mm wide, 835 mm long and 590 mm high.
Its relatively narrow width makes it suitable for applications where available mounting space is restricted, while the 835 mm length provides useful storage capacity within the compact overall footprint.
The tank should be mounted to a suitable support structure designed specifically for the application.

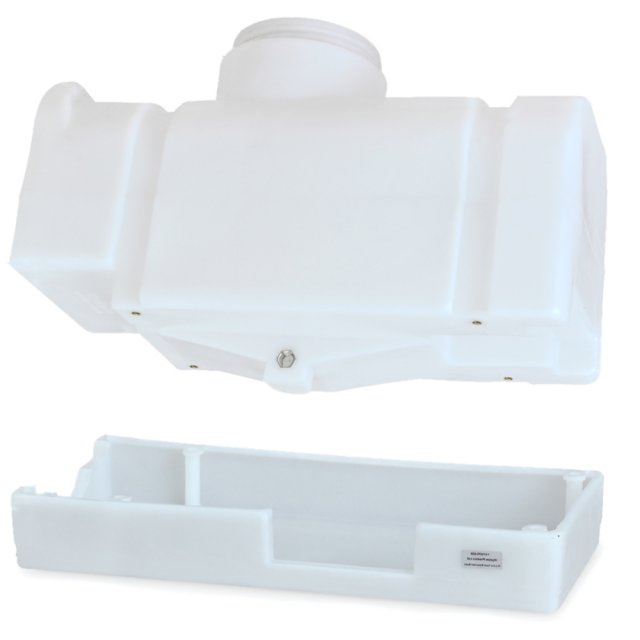

Optional Tank Bases
Two base options are available for the 70 Litre ATV Sprayer Tank.
The short base measures approximately:
Length: 640 mmv
Width: 280 mm
Height: 65 mm
The extended base measures approximately:
Length: 640 mm
Width: 280 mm
Height: 85 mm
The appropriate base should be selected according to the intended installation and the amount of clearance required beneath the tank.
Agricultural & Spraying Applications
The 70 litre capacity makes this tank particularly useful for smaller-scale spraying and agricultural applications where an ATV or quad bike is being used.
Typical applications can include:
- Weed spraying
- Agricultural spraying
- Grounds maintenance
- Estate maintenance
- Horticulture
- Agricultural liquid storage
- Fertiliser application
- Irrigation
- Pest control applications
- Outdoor cleaning
- General-purpose liquid transportation
When used for chemicals, pesticides, fertilisers or other specialist liquids, the user must confirm that the liquid is compatible with the tank material, outlet, hoses and associated equipment before use
Compact Capacity
With a nominal capacity of 70 litres, the tank provides a useful liquid supply while remaining considerably smaller and lighter than many conventional agricultural spray tanks.
The tank weighs approximately 6 kg when empty.
When filled with 70 litres of water, the water itself will weigh approximately 70 kg. The combined weight of the tank and water will therefore be approximately 76 kg before accounting for the base, fittings, hoses, pump or spraying equipment.
ATV Transportation
A full 70 litre tank contains approximately 70 kg of liquid, in addition to the tank itself and any base, pump, hoses and spraying equipment.
This additional weight can affect the handling, stability and braking characteristics of an ATV.
The tank must therefore be securely mounted and the total loaded weight must be considered alongside the ATV manufacturer's permitted payload and mounting requirements.
The tank should not be transported unless it has been correctly supported and securely restrained.
| Capacity | 70 litres |
|---|---|
| Dimensions (W×L×H) | 320 × 835 × 590 mm |
| Empty Weight | 6 kg |
| Material | MDPE |
