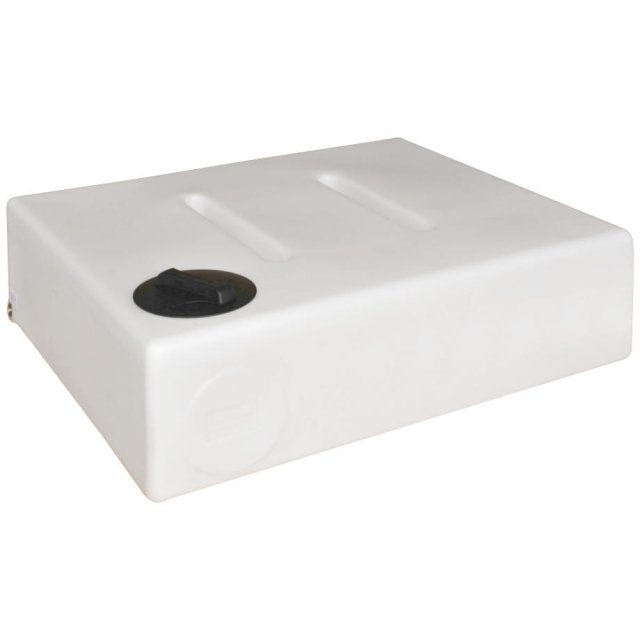

400 Litre Baffled Flat Water Tank
Product Overview
The 400 Litre Baffled Flat Water Tank is a robust and practical solution for the storage and transportation of potable water and a wide range of other compatible liquids.
Manufactured from durable MDPE / polyethylene, this low-profile rectangular tank provides a nominal capacity of 400 litres, equivalent to approximately 88 imperial gallons. Its flat design makes it particularly useful for applications where available height is restricted or where a large volume of water needs to be stored within a relatively compact footprint.
The tank incorporates an integrated baffling system designed to reduce the movement of water during transportation. The baffles are formed through grooves and openings that pass through the tank, helping to disrupt the movement of liquid and reduce side-to-side sloshing.
This makes the tank particularly suitable for mobile applications such as car valeting, window cleaning, mobile vehicle cleaning and other situations where water needs to be transported safely and efficiently.

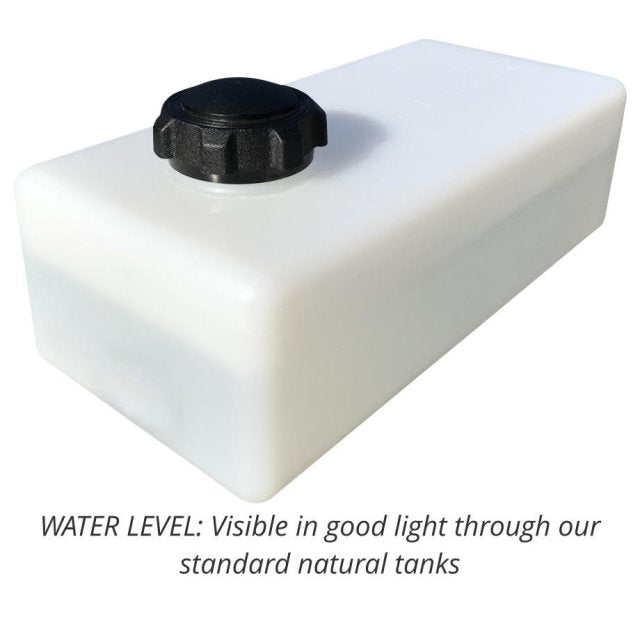

The tank is manufactured in natural translucent medium-density polyethylene, allowing the approximate water level to be viewed through the tank wall.
With an empty weight of approximately 30 kg and dimensions of 1010 × 1250 × 360 mm, the tank provides substantial water storage capacity while maintaining a low overall height.
Key Features
- 400 litre nominal capacity
- Approx. 88 imperial gallons
- Low-profile flat rectangular design
- Integrated internal baffling system
- Manufactured from MDPE / polyethylene
- Suitable for potable water storage
- Suitable for a wide range of compatible liquids
- Natural translucent finish
- Approximate water level can be viewed through the tank
- Approx. 30 kg empty weight
- Dimensions of approximately 1010 × 1250 × 360 mm
- Standard 1" BSP outlet
- Large 8" lid
- Approx. 184 mm lid opening
- Baffles help reduce water movement during transportation
- Ideal for car valeting
- Suitable for window cleaning
- Suitable for mobile vehicle cleaning
- Suitable for liquid transportation

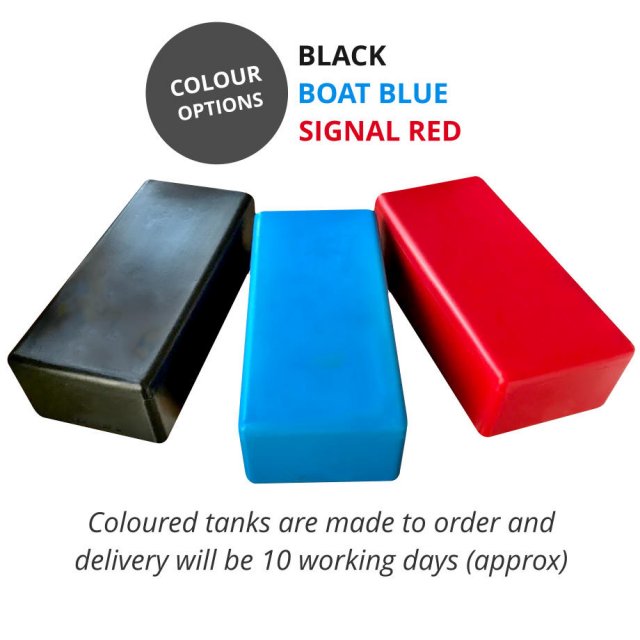

- Other colours available
- Suitable for above-ground applications
- Capacity subject to approximately ±3% manufacturing variation
Low-Profile, High-Capacity Design
The 400 Litre Baffled Flat Water Tank has been designed to provide a substantial water storage capacity while keeping the overall height relatively low.
Measuring approximately 1010 × 1250 mm across the base and 360 mm high, the tank provides 400 litres of nominal storage without requiring the height of a conventional upright tank.
This makes it particularly useful for vehicle-based installations, trailers, mobile equipment and other applications where vertical clearance may be limited.
The low-profile configuration can be particularly advantageous when installing a water tank beneath or alongside existing equipment.
Typical applications include:
- Car valeting
- Window cleaning
- Mobile vehicle cleaning
- Commercial cleaning
- Mobile pressure washing
- Potable water storage
- Agricultural applications
- Horticultural applications
- Irrigation
- Vehicle-based water systems
- Temporary water storage
- General-purpose liquid storage
The available installation space should be checked carefully before ordering to ensure that the tank dimensions and access requirements are suitable.
Integrated Baffle System
The tank incorporates an internal baffling system specifically designed to reduce water movement during transportation.
The baffles are formed by grooves and openings that run through the tank. These interrupt the movement of the liquid and help reduce side-to-side sloshing when the tank is transported with water inside.
This makes the tank particularly well suited to mobile applications where the tank may contain a substantial volume of water while a vehicle is in motion.
The baffled construction is particularly useful for:
- Car valeting
- Window cleaning
- Mobile vehicle cleaning
- Commercial cleaning
- Mobile pressure washing
- Vehicle-based water systems
- Liquid transportation
The baffles reduce water movement but do not eliminate it completely.
A full 400 litre tank contains approximately 400 kg of water, in addition to the weight of the tank itself. It is therefore essential that the tank is correctly installed and securely restrained before transportation.
Ideal for Car Valeting
The 400 litre capacity makes this tank particularly useful for professional car valeting and vehicle cleaning businesses that require a mobile water supply.
The flat configuration allows the tank to be installed in areas where a taller upright tank may not be practical, while the integrated baffles help reduce water movement during transportation.
The tank can be incorporated into a wider mobile cleaning system and connected to suitable pumps, hoses and pressure washing equipment.
The natural translucent construction also allows the operator to monitor the approximate remaining water level, making it easier to plan refilling during busy working periods.
Ideal for Window Cleaning
The tank is also well suited to professional window cleaning applications.
Its combination of 400 litre capacity, low-profile construction and internal baffling provides a practical solution for transporting a substantial quantity of water in a mobile cleaning vehicle.
The relatively low height can make it easier to install in vehicles where available vertical space is limited.
The tank can be connected to suitable pumps, hoses and other window cleaning equipment using compatible fittings and accessories.
Applications
The 400 Litre Baffled Flat Water Tank is particularly suitable for mobile and commercial water storage applications.
Typical applications include:
- Professional car valeting
- Window cleaning
- Mobile vehicle cleaning
- Mobile pressure washing
- Commercial cleaning
- Potable water storage
- Agricultural water storage
- Horticultural applications
- Irrigation systems
- Vehicle-based water systems
- Temporary water storage
- General-purpose liquid storage
The low-profile design makes the tank particularly useful where height is restricted, while the integrated baffling makes it suitable for transporting water when correctly installed and secured.
| Capacity | 400 litres |
|---|---|
| Dimensions (W×L×H) | 1010 × 1250 × 360 mm |
| Empty Weight | 30 kg |
| Material | MDPE |
