3000 Litre GRP Pump Enclosure with built in Tank, AG air gap

3000 Litre GRP Pump Enclosure with built-in Tank, AG air gap

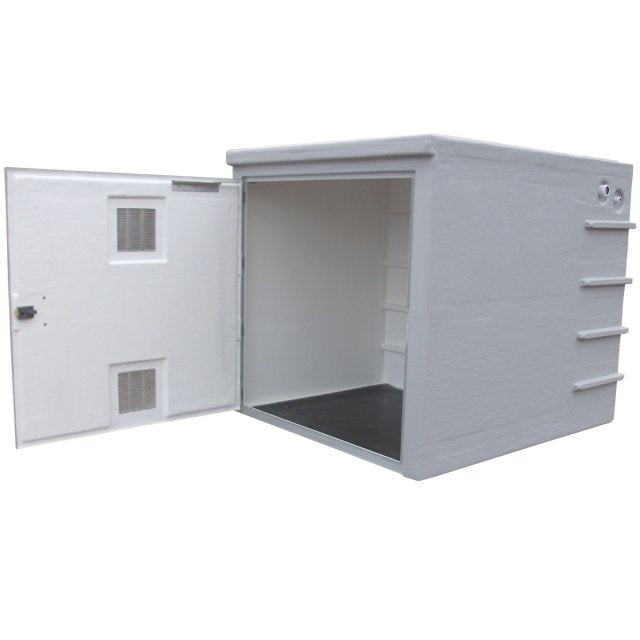

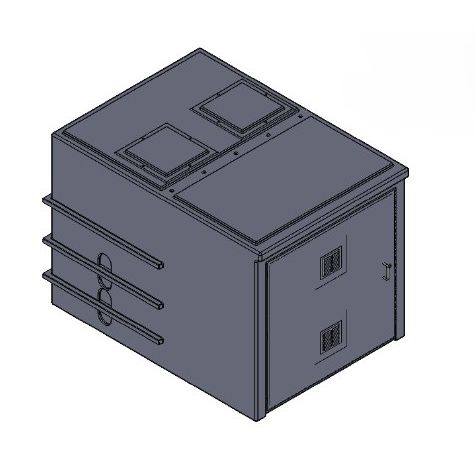

The unit is designed as a single piece item with an internal dividing wall at full height. One internal section being the wet compartment for the stored water, which is accessed via a lid mounted lockable man way. Beyond the internal dividing wall is the dry side where the booster set is to be positioned. The internal dividing wall has the inlet and outlet connection within it, the overflow, warning pipe and screened spill over weir terminate through the wet side wall to the outside and do not therefore normally require any additional pipework. The dry side is accessed by a large 1600 x 1600 mm hinged and lockable door, which is fitted with louvred vents to ensure adequate ventilation.

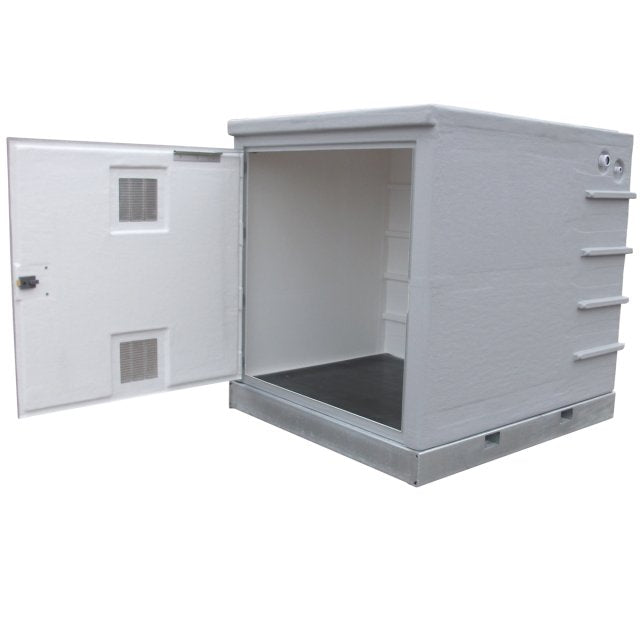

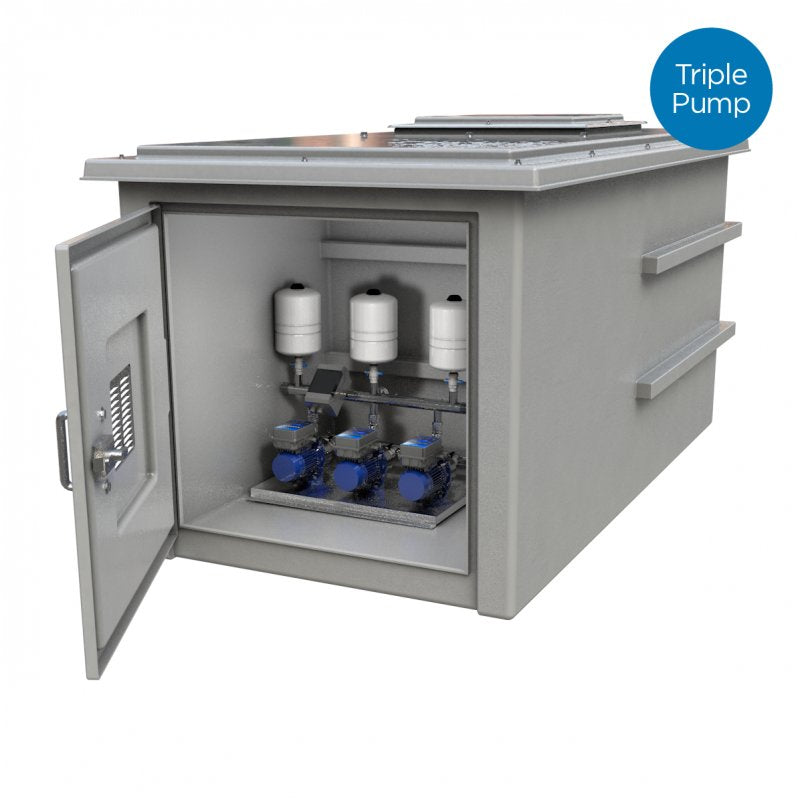

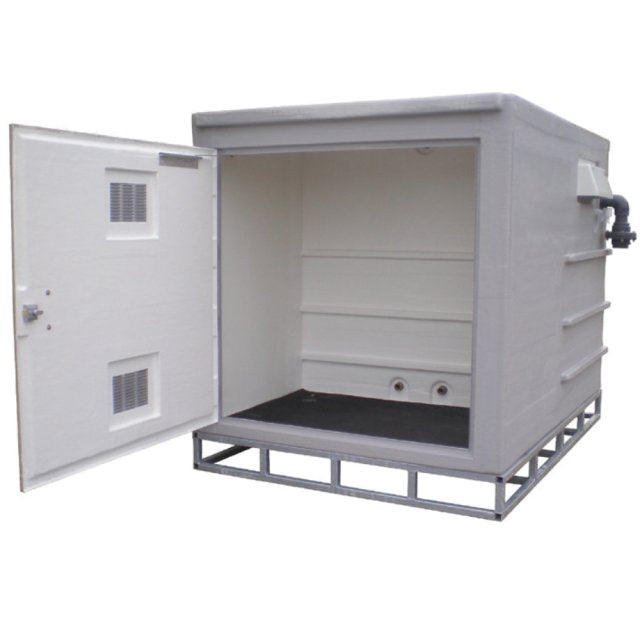

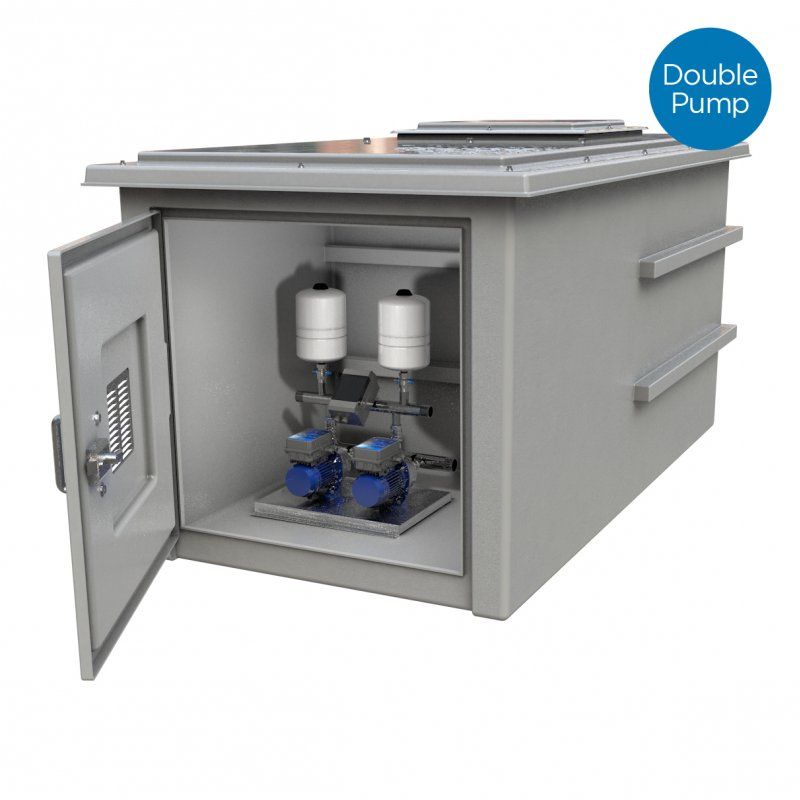

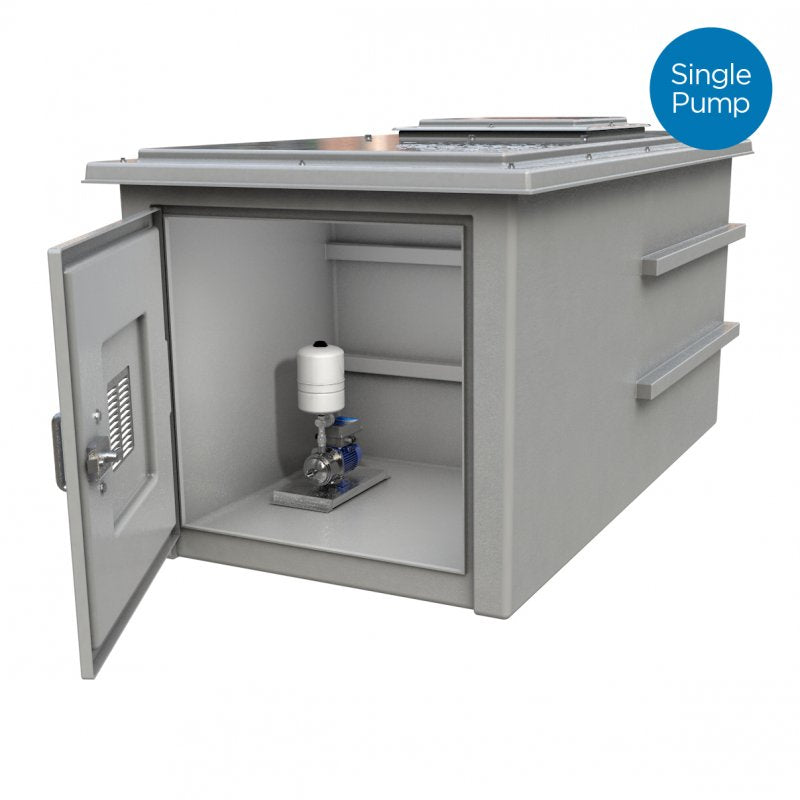

If chosen with the Foundation Skid, the whole unit is mounted and fixed to a fully welded galvanised steel skid, which allows offloading and movement on site by fork lift struck. The principle is to provide the unit to the booster set manufacturer, where the booster and associated electrical equipment can be fitted. The completed unit can then be delivered to site where once positioned it requires the simple connection of the mains pipework, outlet pipework to the services, and electrical supply, making it a 'plug and play' unit requiring minimal on-site installation.

All units are fitted with the following:

• 1 No single 1550 x 1550 mm door to the end face of the pump compartment
• 1 No lockable access man way fitted to the roof of the wet compartment where fitted.
• 1 No EPDM mat to the floor of the pump compartment
• A fully encapsulated ply base.

Units do not include electrical components, wiring, pump sets, control equipment, connections of any kind or internal pipework.

Units not fitted with a galvanised steel skid are suitable for positioning onto a structural pad only, which should be flat, level and continuous and be +/- 2 mm over the surface area.

Please note, when the galvanised skid option is added the external height increases by 210 mm.

AG Air gap Connection Packs - Supplied loose

IP22-AG-SL

• 22 mm (3/4") screened lid vent
• 22 mm equilibrium float valve c/w Float
• 35 mm (1 1/4") screened overflow
• 22 mm (3/4") screened warning pipe

IP28-AG-SL

• 42 mm (1 1/2") screened lid vent
• 28 mm equilibrium float valve
• 42 mm (1 1/2") screened overflow
• 22 mm (3/4") screened warning pipe

IP35-AG-SL

• 42 mm (1 1/2") screened lid vent
• 35 mm equilibrium float valve
• 50 mm (2") screened overflow
• 22 mm (3/4") screened warning pipe

IP42-AG-SL

• 42 mm (1 1/2") screened lid vent
• 42 mm equilibrium float valve
• 67 mm (2 1/2") screened overflow
• 22 mm (3/4") screened warning pipe

IP50-AG-SL

• 42 mm (1 1/2") screened lid vent
• 50 mm equilibrium float valve
• 80 mm (3") screened overflow
• 22 mm (3/4") screened warning pipe

Delivery

All our GRP tanks are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.

If you require assistance with offloading, we may be able to offer a tail lift (lowers the tank to the ground) or HIAB (lorry with a mounted crane to winch the tank off the delivery vehicle). Please contact us if this is required for delivery.

**Images are for illustration purposes only
