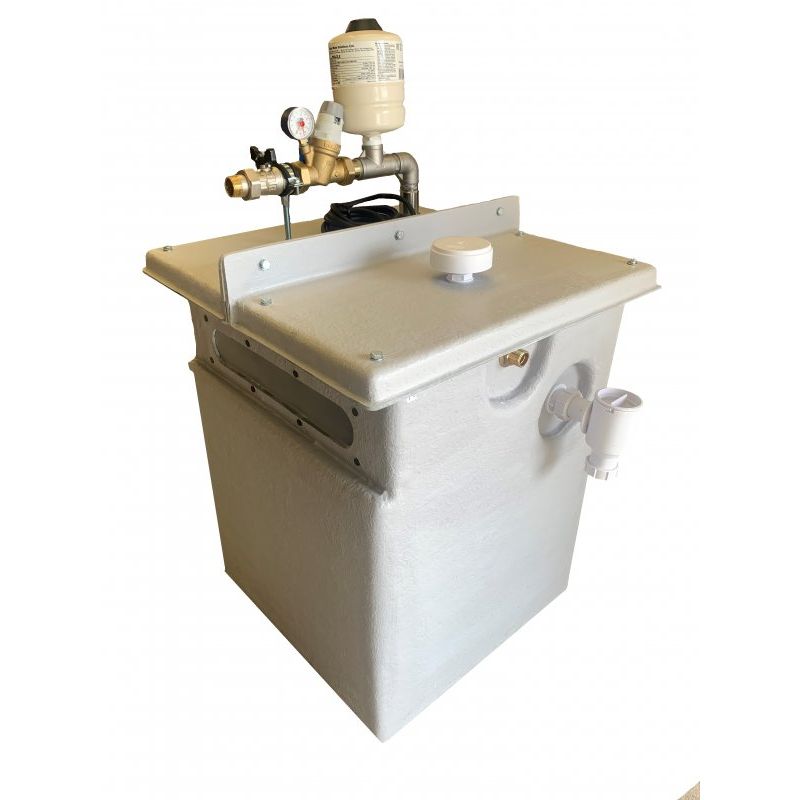

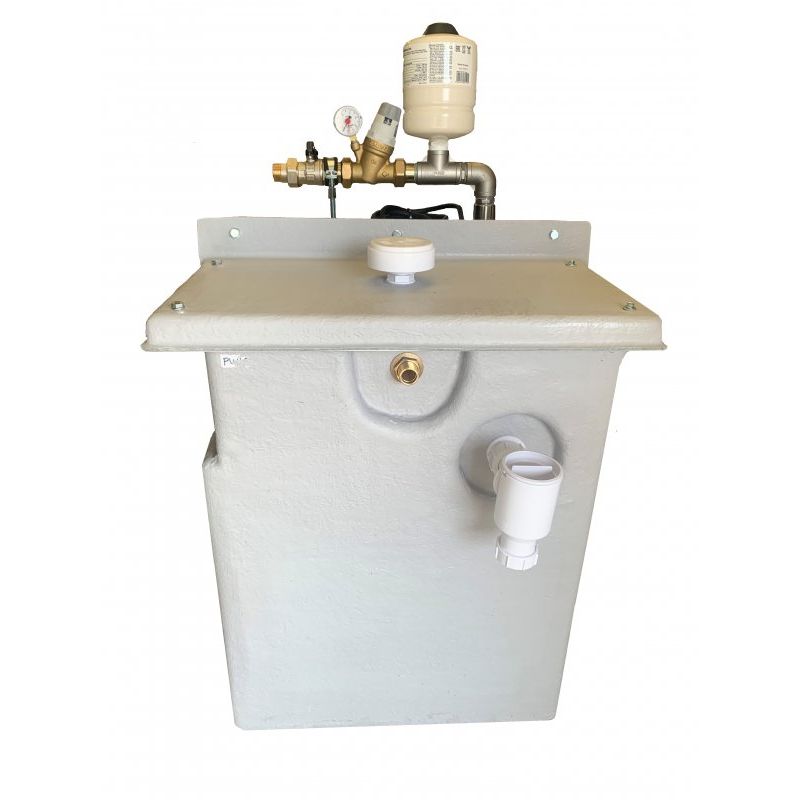

251 Litre Single Pump CAT5 Booster Set
Estimate delivery costs
Your postcode helps us show you accurate delivery costs before you add to basket. We use it only to calculate shipping rates — it is not stored or shared.
251 Litre Single Pump CAT5 Booster Set
The CAT 5 booster set also know as Backflow prevention booster set incorporates a 251 Litre GRP WRAS approved break tank complete with a raised ball valve chamber with an AB air gap to WRAS approved regulations.
Applications include:
- Laboratories
- Veterinary Surgeries
- Bin Washdown
- Mortuaries
- Abattoirs
- Bib Tap
Operation
The CAT 5 Booster set is designed to monitor the system pressure. As the demand increases the pressure will fall and the pump will start to run until the demand has stopped and the pressure increases.
Pump Specification
Multistage pump complete built in pressure switch, 230 volt single phase supply.
Technical Specifications
- Single Pump Packaged Booster Set and CAT5 Break Tank.
- Fixed Speed Pressure Pump - Variable speed optional upon request.
- Pre-assembled for easy installation.
- Wet/Pressure tested prior to despatch.
- Quiet operation, less than 50 decibels.
- Compact design, narrow wiIXO-DTh ideal for access through doorways.
- WRAS Approved water storage tank manufactured from GRP with 25mm insulation.
- WRAS Approved 3
- 4" High flow ball valve fitted.
- 1 Phase 230 Volt supply.
- Low Water Level Protection.
- WRAS Approved fully adjustable system pressure reducing valve fitted.
- Maximum allowable static head 12 metres.
Tanks Direct also supply variable domestic & commercial twin and triple pumps, please contact us on 01643 703358.
Delivery
All our Booster sets are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.
If you require any specific requirements regarding delivery, please call us before order is placed, where we will try and accommodate this facility for you.
Image is for display purposes only, tank could differ in size, please check the data sheet re dimensions.
| Capacity | 251 litres |
|---|---|
| Dimensions (W×L×H) | 610 × 670 × 1340 mm |
The Water Supply (Water Fitting) Regulations 1999 provides five backflow prevention categories dependent on the risk level of the water use.
The regulations require back-flow prevention devices to prevent the water on the premises being drawn backward into the public drinking water supply. Backflow may occur in a number of situations, including burst pipes in the street or cross connection of the mains water supply with pressurised supplies on the premises. An assessment needs to be made of the potential dangers to health of the backflow – if the backflow water comes from a butcher’s shop it is more likely to be contaminated than a newsagent.
In the legislation, fluid risk category 5 covers the following areas:
Fluid which represents a serious health hazard because of the concentration of pathogenic organisms, radioactive or very toxic substances, including any fluid which contains –
faecal material or other human waste:
butchery or other animal waste: or
pathogens from any other source.
To provide category 5 compliance, a break tank has a category ‘AB’ air-gap fitted and a pump which re-pressurises the water.
