2000 Litre GRP Water Tank with a Twin Pump Booster Set
Estimate delivery costs
Your postcode helps us show you accurate delivery costs before you add to basket. We use it only to calculate shipping rates — it is not stored or shared.
2000 Litre GRP Water Tank - FlyVar Compact Twin Booster Set
The space saving solution and almost silent running. The Tanks Direct Home Booster is designed to supply potable water to a single or multiple dwelling where mains pressure is insufficient. The Tanks Direct Home Booster comes complete with a variable speed drive(s) and submersible or surface mounted pump(s). The break-tank is insulated to keep the noise level to a minimum. Controls can be mounted on the top of the tank, allowing for easy maintenance. The Tanks Direct Home Booster is available in two standard sizes 500L and 1000L with single and twin pump options.
Standard Features
- GRP insulated water storage tank (WRAS Approved)
- 500L or 1000L (other sizes on request)
- Variable speed stainless steel submersible pump(s)
- Low water level pump protection (as standard)
- Common alarm volt free contactors
- Digital system display
- Max head Up to 6.5Bar
- Max Flow Up to 120L/Min
Applications
- Holiday Homes / Static Caravans
- Off the grid / Rural Properties
- High Rise Apartments / Flats
- Light Industrial use
- Washdown Stations (CAT5)
- Feed to Bib Taps (CAT5)
Supplied with
- 1 No 22mm screened lid vent
- 1 No 28mm Equilbrium float valve
- 1 No 18mm baseboard
- 1 No 42mm screened overflow
- 1 No 22mm screened warning pipe (tanks of 1000 litre and above only)
Please note this tank and pump set are not CAT5, if this is required, please contact us for more information
| Capacity (L) | 2000 |
| Pump Configuration | Twin |
| Inlet Size (mm) | 28 |
| Length (mm) | 2202 |
| WiIXO-DTh (mm) | 1202 |
| Height (mm) | 1606 |
| Model Number | Mid Curve Flow | Mid Curve Pressure | kW Rating | Running Current (amp) | Supply Voltage | Inlet | Outlet | Overflow Size | Dry Weight |
| FV40/10T | 80 l/min | 4.5 Bar | 2 x 0.75 | 2 x 3.8 | 1ph 230v 50hz | 3/4" | 1 1/4" | 40mm | 94kg |
| FV40/15T | 80 l/min | 6.5 Bar | 2 x 1.1 | 2 x 5.2 | 1ph 230v 50hz | 3/4" | 1 1/4" | 40mm | 96kg |
| FV80/15T | 120 l/min | 4.5 Bar | 2 x 1.1 | 2 x 5.4 | 1ph 230v 50hz | 3/4" | 1 1/4" | 40mm | 98kg |
| FV80/20T | 120 l/min | 5.8 Bar | 2 x 1.5 | 2 x 6.1 | 1ph 230v 50hz | 3/4" | 1 1/4" | 40mm | 100kg |
If access is an issue, please contact us, as we can offer a solution of a 2 piece GRP tank, which allows you to separate the 2 sections and carry them through a doorway or tight corridor for assembly in situ.
Each pump comes complete with an independent inverter, fixed to the vessel with Bluetooth connectivity to pair the inverts for duty assist functionality. No need for interconnecting wiring, making it easy for installation and testing. This versatile booster set can also pair with multiple FlyVar compacts, allowing for even more flow when space for situating the system is at even more of a premium.
Delivery
All our Compact booster sets are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.
If you require assistance with offloading, we may be able to offer a tail lift (lowers the tank to the ground) or HIAB (lorry with a mounted crane to winch the tank off the delivery vehicle). Please contact us if this is required for delivery.

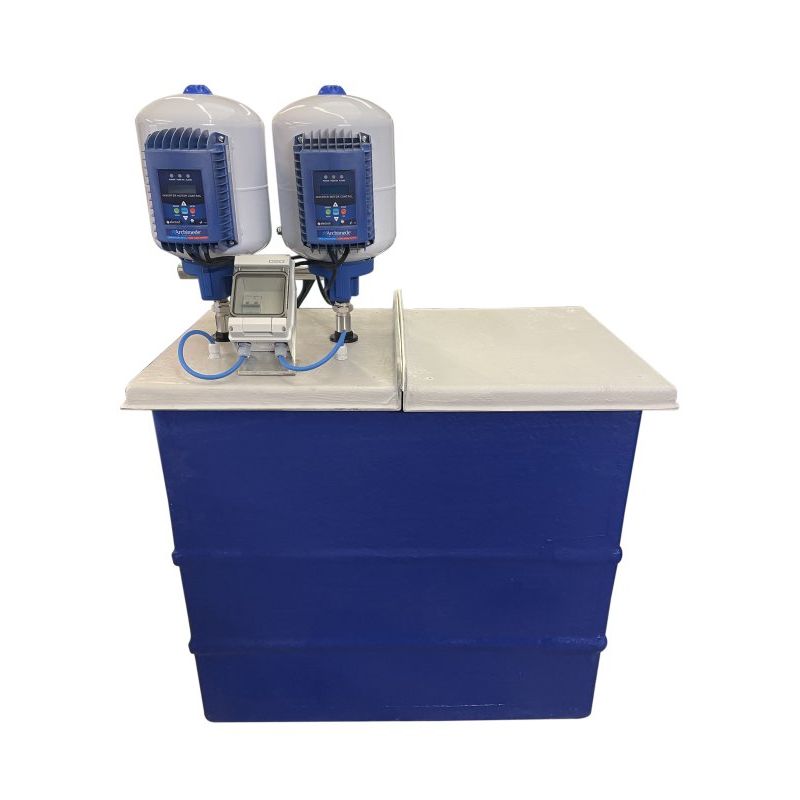

Images are for illustration purposes only, the GRP tank would be Grey and not Blue as advertised
| Capacity | 2000 litres |
|---|---|
| Dimensions (W×L×H) | 1202 × 2202 × 1606 mm |
| Empty Weight | 10 kg |
Standard commissioning process
- Mount panel into the kiosk or suitable housing location supplied / identified by others.
- Drop draw cords down the 110mm cable duct already installed by others.
- Lower the pumps down the guide rails onto the pedestals and ensure correct position.
- Pull through the float and pump cables, if a cable extension is needed, this is extended within the chamber via a junction box and pulled through with a multicore cable.
- Take a electricity supply from a type C32 rotary isolator at the location of the panel.
- Connect the power to the control panel along with the 2 pump cables and the 4 control float cables.
- Set floats are the required heights to correspond with the inlet level.
- Fill the pump station if not already full.
- Power up the control panel and turn each pump into manual using the dials to amp test each pump and set the Lmax overload setting.
- Set the dials to auto and continue to fill to test standard operation
- Remove air locks if necessary
- Check duty assist and high level alarm function
- Leave the system in full working order
