2000 - 11000 litre Klargester Grease Separators
This product is specified and quoted to your requirements. Send us the details and our team will come back to you with a full price, including delivery.
Request a quote- Response within one working day
- No obligation
- Speak to a specialist on 01643 703358
Klargester Grease Separator Range - 2,000 to 11,000 litre capacity
Klargester Grease Separators are an effective and hygienic method of separating fat and grease from wastewater flow.
Grease Separators are designed for catering applications and suitable for use in ....
- Restaurants
- Hotels
- Public houses
- Canteens
Key Features
- Range capacities from 500 - 11000 litres and flow rates of 1 - 24 litres/sec.
- Greatly reduces drain blockages.
- Improves performance of septic tanks and field drains
- Prevents contamination of small sewage treatment plants.
- Protects mains drainage system from grease blockages.
How it works
Grease separators allow fats and grease to naturally separate out from water, allowing their removal prior to the wastewater reaching the drainage system. The separator should be installed close to the source of contamination before any foul waste can enter the drainage flow and to suit the expected liquid temperature.
| Model | Capacity(Litres) | Flow (Litres/Sec) |

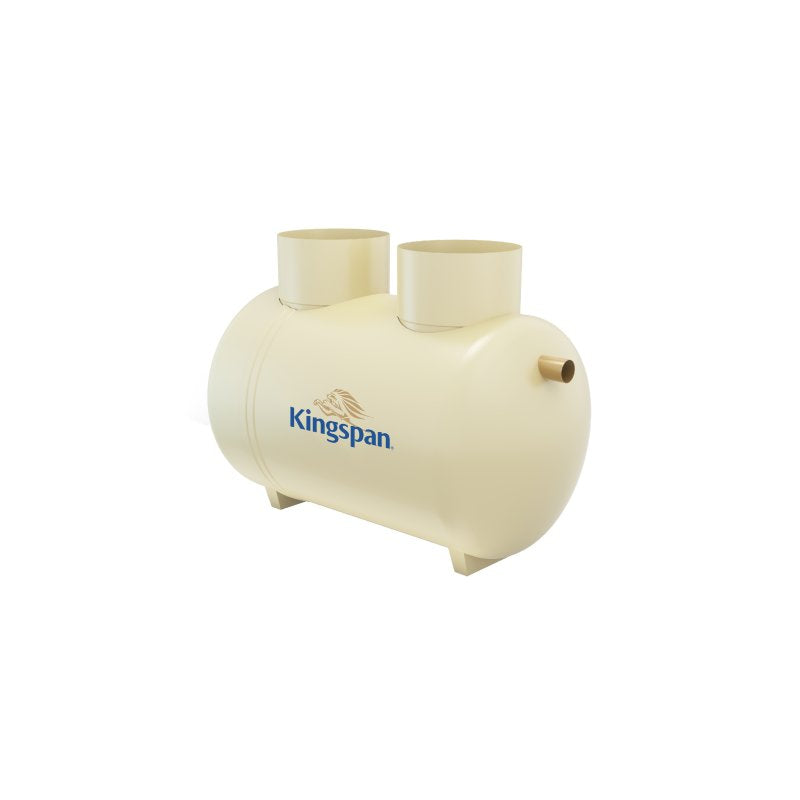

| NSG04 | 2,000 | 4.0 |
| NSG06 | 3,000 | 6.0 |
| NSG09 | 4,000 | 9.0 |
| NSG14 | 6,000 | 14.0 |
| NSG18 | 8,000 | 18.0 |

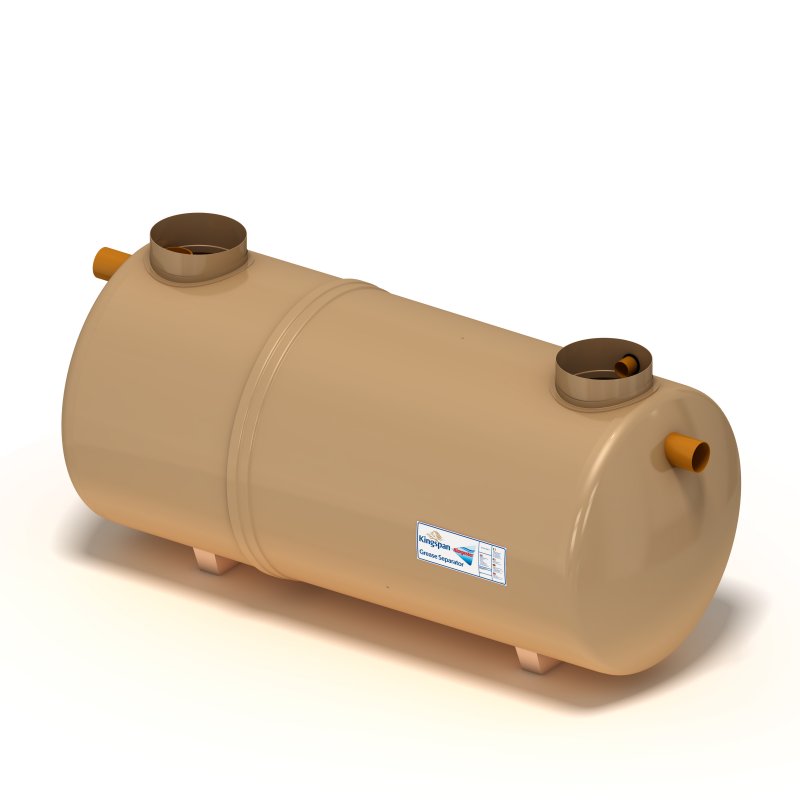

| NSG24 | 11,000 | 24.0 |
Grease Range Sizing Table
|
Meals Per Day |
Standard Meals |
Fast Food |
Fine Cuisine |
|
40 |
NSG01 |
NSG01 |
NSG02 |
|
60 |
NSG02 |
NSG02 |
NSG02 |
|
80 |
NSG02 |
NSG02 |
NSG04 |
|
100 |
NSG02 |
NSG04 |
NSG04 |
|
200 |
NSG04 |
NSG06 |
NSG09 |
|
300 |
NSG06 |
NSG09 |
NSG14 |
|
500 |
NSG09 |
NSG14 |
NSG18 |
|
700 |
NSG14 |
NSG18 |
NSG24 |
|
900 |
NSG18 |
NSG24 |
- |
|
1,300 |
NSG24 |
- |
- |
The optional GA-1 Grease Monitor Alarm measures the thickness of grease buildup within the separator.
Really easy to install, has remote monitoring features, supports all kind of grease separators.
Product contains a GA-1 Control Unit-GA-SG1 Sensor-Cable Joint
Complying: EN 1825 & DIN 4040 norms
| Material | GRP / Fibreglass |
|---|---|
| Tank Use | Below Ground |
