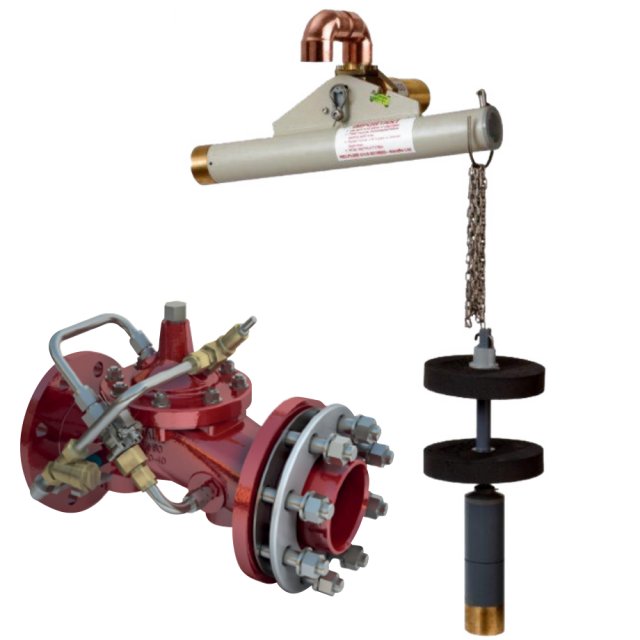

2' Keraflo KP Type, Inline and Variable Delayed Action Float Valve, 50mm
Estimate delivery costs
Your postcode helps us show you accurate delivery costs before you add to basket. We use it only to calculate shipping rates — it is not stored or shared.
2' Keraflo KP Type, Inline and Variable Delayed Action Float Valve, 50mm Description
Keraflo KP Type 2' - 50mm Inline and Variable Delayed Action Float Valve - Please note delivery on KP type valves is around 10-14 days
Aylesbury KP type float valve kits comprises an in-line control valve together with an Aylesbury KB type float valve acting as a pilot. The pilot valve offers fully variable delayed action opening and closing water level settings, making this ideal for mains or pumped systems.
Other standout features of our Aylesbury 'KP' type float valve kits include the following:
- High Kv Value
- The standard 'KP' Control Valve offers excellent flow rate performance.
- Raised Valve Chamber
- Can be small as it only has to accommodate a 3/4' KB valve and discharge assembly.
- Facilitates Air Gaps
- The Aylesbury 'KB' Valve is supplied with a 2m long adjustable chain as standard allowing the closing level to be set below any combination of Weir Slot, Overflow and/or Warning Device.
- Quiet Operation
- Aylesbury valves are quieter than conventional valves due to the elimination of Water Hammer, Valve Bounce, 'Hiss' and Dribble.
- Accessibility
- An externally mounted Control Valve can be easily - inspected, adjusted and if required serviced. Re-chlorination of the tank is not necessary provided the tank lid is not removed.
- Optional Extra
- Upstream Pressure Sustaining Regulator - the Control Valve regulates itself to leave the desired minimum upstream pressure (Adjustable 1 - 6 Bar). This can also be used to provide a constant flow rate.
Benefits
- No Water Hammer
- Full Flow During Fill
- Maximises Tank Capacity
- Maintenance Free
- No backing plate required
- Suitable for all types of Air Gap applications
- No Valve Bounce
- No Dribble
- Delayed Action
- Tank Wall Stress negligible
- Ideal for Fire Sprinkler Systems
- Flexibility and ease of Installation
Conventional Float Valves above 3' are heavy and cumbersome often necessitating a two person installation. When the 'KP' Control Valve is mounted outside the tank at floor level, no heavy lifting is required.
The Control Valve can be mounted in one of four positions:
- Vertically in the pipe work (preferred option)
- Outside the tank at floor level
- Outside the tank above the tank water level
- Inside the tank above the tank water level
- Multiple Discharges
To reduce the risk of stagnation, two or more discharges can be connected to the outlet of the control valve. Since the Filling Pipe is only subjected to low pressure, thin wall PVC pipe can be used. The 'KP' Valve can also be configured to service twin/partitioned tanks.
Shallow Tanks - 'KP' Valves can operate in tanks as shallow as 1 metre in depth.
Deep Tanks - The standard Aylesbury 'KB' Pilot valve enables an opening level 2m below the inlet level. A longer chain can be supplied if required.
