1500 Litre Bunded Diesel Dispensing Tank
Estimate delivery costs
Your postcode helps us show you accurate delivery costs before you add to basket. We use it only to calculate shipping rates — it is not stored or shared.
Deso 1500 Litre Bunded Diesel Dispensing Tank
Product Overview
The Deso H1550PDD is a compact 1500 litre bunded diesel dispensing tank designed for secure above-ground storage and controlled dispensing of diesel, gas oil and compatible HVO fuels. With a stated usable tank volume of 1,490 litres, the horizontal design provides substantial fuel capacity while maintaining a relatively compact footprint for sites where available space is limited.

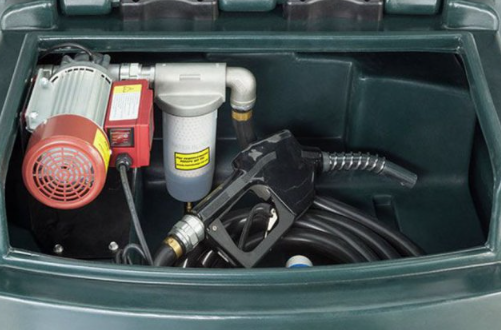

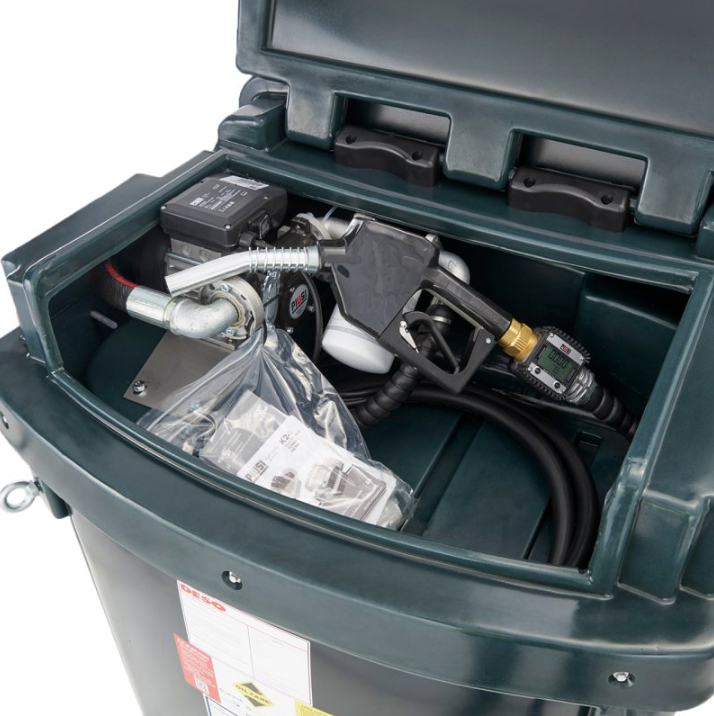

The tank is supplied as a complete dispensing package, including a 4 metre delivery hose, automatic shut-off nozzle, 10-micron water and particulate filter, overfill prevention valve, contents gauge, lockable lid and 72 lpm pump. Pump options include 240V, 12V and 110V configurations, while a digital flow meter is available as an optional upgrade.
Key Features
- 1500 litre nominal diesel storage capacity
- 1,490 litre stated tank volume
- Horizontal bunded tank design
- Plastic construction with external pre-galvanised steel support frame
- 110% bunded, tank-within-a-tank configuration
- 72 lpm dispensing pump
- 4 metre delivery hose
- 3/4" automatic shut-off nozzle
- 10-micron water and particulate filter
- Overfill prevention valve
- Clock-type contents gauge
- Lockable lid
- 240V or 12V pump options
- Optional digital flow meter
- Suitable for diesel, gas oil and HVO
- OFCERT No. 0668101701
- 10-year tank-only warranty
- Compact footprint of approximately 1740 × 860 mm
Bunded Tank Construction
The Deso H1550PDD uses a bunded tank-within-a-tank design. The inner tank provides the primary fuel storage vessel, while the outer tank provides secondary containment in the event of a leak or spill.
The tank's compact footprint is achieved using an external pre-galvanised steel frame that supports the inner and outer skins, reducing the need for extensive internal ribbing. The steel framework can also accommodate grapple hooks, providing additional mounting points where required.
Diesel, Gas Oil and HVO Compatibility
The H1550PDD is suitable for fuel oil (A2) and gas oil/diesel, including biofuel such as HVO, as defined by BS EN 2869, BS EN 590 and BS EN 15940.
It is not suitable for storing kerosene. Fuel compatibility should always be confirmed before filling the tank with any fuel or alternative fuel product.
Choice of Pump Options
The tank is available with a choice of pump configurations to suit different power requirements.
The 240V pump is the standard configuration currently offered on the product page. It is supplied with a 3-pin "caravan style" plug and 1.8 metre power cable.
A 12V pump option is available for applications where low-voltage power is preferred. The 12V configuration is supplied with crocodile clips for connection to a suitable power source.
The 12V option may have a different lead time from the standard configuration.
Suitable Applications
The Deso H1550PDD can be used for a range of applications requiring on-site storage and dispensing of diesel or compatible fuels, including:
- Agricultural machinery refuelling
- Commercial vehicle fleets
- Construction equipment
- Plant and machinery
- Groundcare equipment
- Farms and agricultural businesses
- Workshops and industrial sites
- Contractors requiring an on-site diesel supply
- HVO-compatible vehicle and machinery applications
The tank is intended for above-ground storage and dispensing of compatible fuels. Kerosene must not be stored in this tank.
Delivery and Offloading
Standard tank deliveries are kerbside deliveries, meaning the tank is delivered to the kerb and is not positioned at its final installation point. The customer is responsible for arranging suitable manoeuvring and positioning of the tank.
HIAB delivery is available by request at additional cost where a suitable lifting solution is required.
| Capacity | 1500 litres |
|---|---|
| Dimensions (L×W×H) | 2000 × 950 × 1500 mm |
| Empty Weight | 135 kg |
| Material | MDPE |
| Category | Bunded |
This Oil Tank must be installed and maintained in accordance to the current OFTEC guidelines, by an OFTEC Registered Technician or similarly competent person.
Fuel Tank Shop and the manufacturer will not be responsible for oil tank installations which do not comply with these requirements.
OFTEC Base Construction Guidelines (in brief):
- Adequate for the weight of the tank when full
- Non-combustible, imperforate and level
- Constructed of concrete, paving stones or stonework
- Any non-Standard Uk plug to be removed and hard-wired
- Large enough to extend 300mm beyond ALL sides of the tanks
