1230 Litre Bunded Diesel Dispensing Tank - Deso V1230PDD
Estimate delivery costs
Your postcode helps us show you accurate delivery costs before you add to basket. We use it only to calculate shipping rates — it is not stored or shared.
V1230PDD Bunded Diesel Dispensing Tank
Product Overview

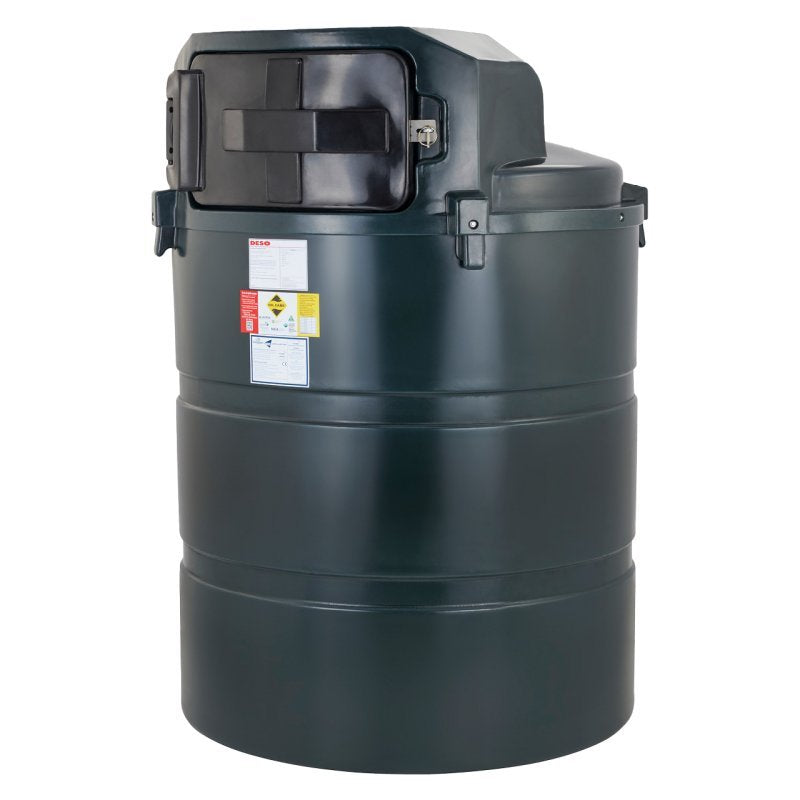

The Deso V1230PDD is a 1230 litre plastic bunded diesel dispensing tank designed for secure above-ground storage and convenient on-site dispensing of diesel and compatible HVO fuels. Its vertical configuration and compact footprint make it a practical option for farms, commercial premises, construction sites, workshops and other applications requiring a dedicated fuel storage and dispensing point.

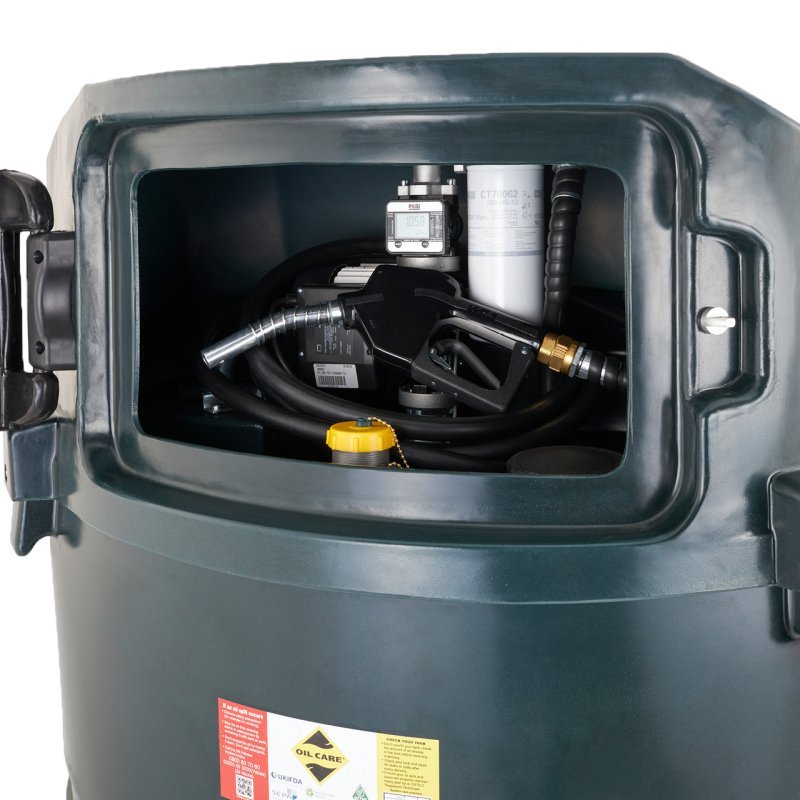

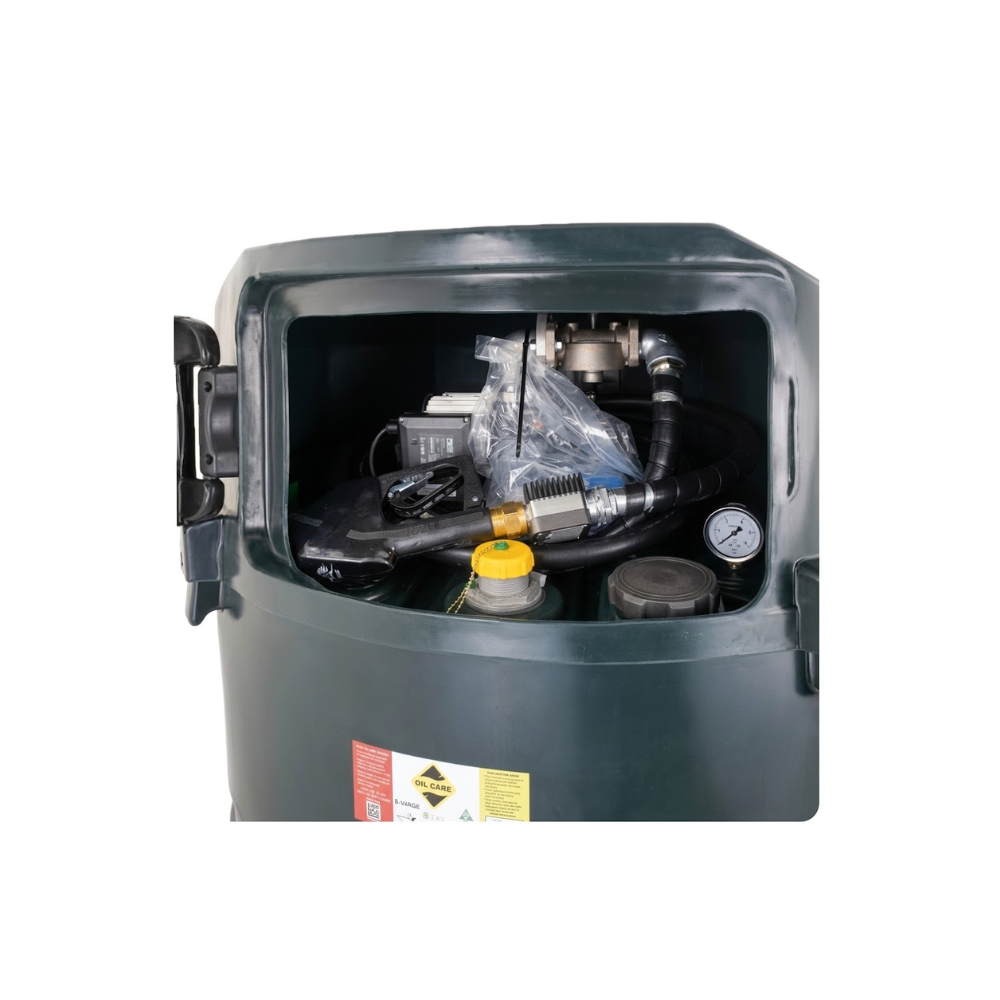

The tank is supplied as a complete dispensing package with a 6 metre delivery hose, automatic shut-off nozzle, 10-micron water and particulate filter, overfill prevention valve, clock-type contents gauge and lockable cabinet door. The standard 230V pump delivers up to 72 lpm, while a 12V 56 lpm pump is also available. A digital flow meter can be selected as an optional upgrade.
Key Features
- 1230 litre nominal fuel capacity
- Approx. 270 gallon capacity
- Plastic vertical bunded tank
- Tank-within-a-tank secondary containment
- 6 metre delivery hose
- 3/4" automatic shut-off nozzle
- 10-micron water and particulate filter
- Overfill prevention valve
- Clock-type contents gauge

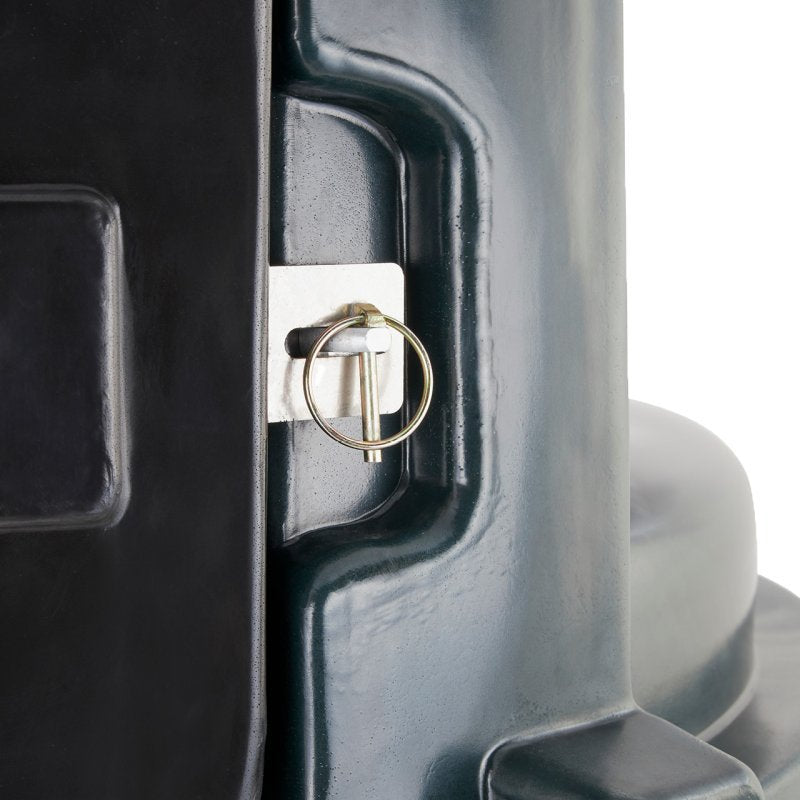

- Lockable cabinet door
- Crane lifting lugs for lifting when empty
- 230V 72 lpm pump option
- 12V 56 lpm pump option
- 230V pump supplied with 3-pin "caravan style" plug and 1.8 metre power cable
- 12V pump supplied with crocodile clips
- Optional digital flow meter
- Compact 1230 × 1230 mm footprint
- Suitable for diesel and HVO
- 10-year tank warranty
- OFTEC installation requirements apply
Bunded Tank Construction
The Deso V1230PDD is a plastic bunded tank using a "tank within a tank" arrangement. The inner tank acts as the primary storage vessel, while the outer tank provides secondary containment.
In the event of a spill or failure of the inner tank, the outer bund is designed to contain the surplus fuel, helping to reduce the risk of an environmental pollution incident.
Diesel and HVO Compatibility
The V1230PDD is listed for diesel and HVO applications. It is intended for above-ground storage and dispensing of compatible diesel-type fuels.
Fuel compatibility should be confirmed before using the tank with any fuel outside the manufacturer's published specification.
Choice of Pump Options
The V1230PDD can be configured with either a 230V or 12V dispensing pump.
The 230V pump provides a dispensing rate of up to 72 lpm. It is supplied with a 3-pin "caravan style" plug and 1.8 metre power cable, allowing connection to a suitable electrical supply
The 12V pump provides a dispensing rate of up to 56 lpm and is supplied with crocodile clips for connection to a suitable 12V power source.
Suitable Applications
The Deso V1230PDD is suitable for a range of applications requiring on-site diesel or HVO storage and dispensing, including:
- Agricultural machinery
- Farms and agricultural businesses
- Construction plant
- Commercial vehicles
- Groundcare equipment
- Workshops
- Industrial sites
- Contractors and plant operators
- Small commercial vehicle fleets
- Diesel-powered machinery
- HVO-compatible vehicles and equipment
The tank provides a dedicated above-ground fuel storage and dispensing point without requiring a separate mobile dispensing unit.
Delivery and Offloading
Standard tank delivery is kerbside, meaning the tank is delivered to the kerb and is not positioned at the final installation point. The customer is responsible for arranging suitable movement and positioning of the tank after delivery.
HIAB delivery is also available by request at an additional cost.
| Diameter | Ø 1250 mm |
|---|---|
| Height | 1600 mm |
| Empty Weight | 96 kg |
| Material | MDPE |
| Category | Bunded |
This Oil Tank must be installed and maintained in accordance to the current OFTEC guidelines, by an OFTEC Registered Technician or similarly competent person.
Fuel Tank Shop and the manufacturer will not be responsible for oil tank installations which do not comply with these requirements.
OFTEC Base Construction Guidelines (in brief):
- Adequate for the weight of the tank when full
- Non-combustible, imperforate and level
- Constructed of concrete, paving stones or stonework
- Any non-Standard Uk plug to be removed and hard-wired
- Large enough to extend 300mm beyond ALL sides of the tanks
