100 Litre Conical Water Tank
Estimate delivery costs
Your postcode helps us show you accurate delivery costs before you add to basket. We use it only to calculate shipping rates — it is not stored or shared.

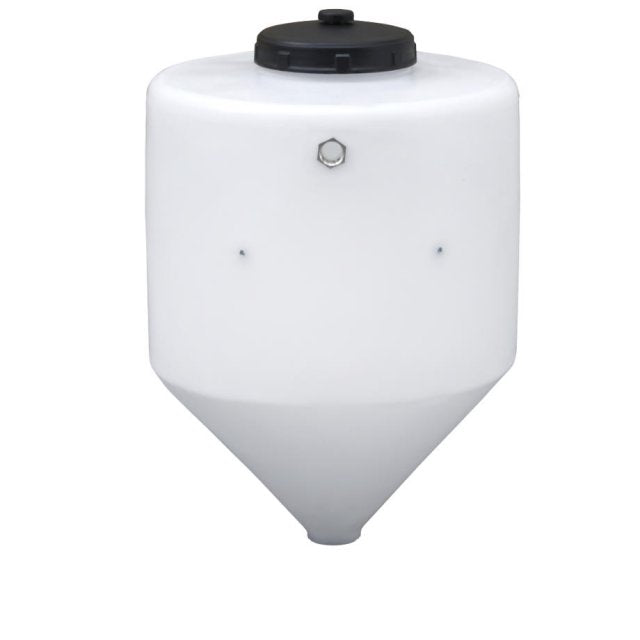

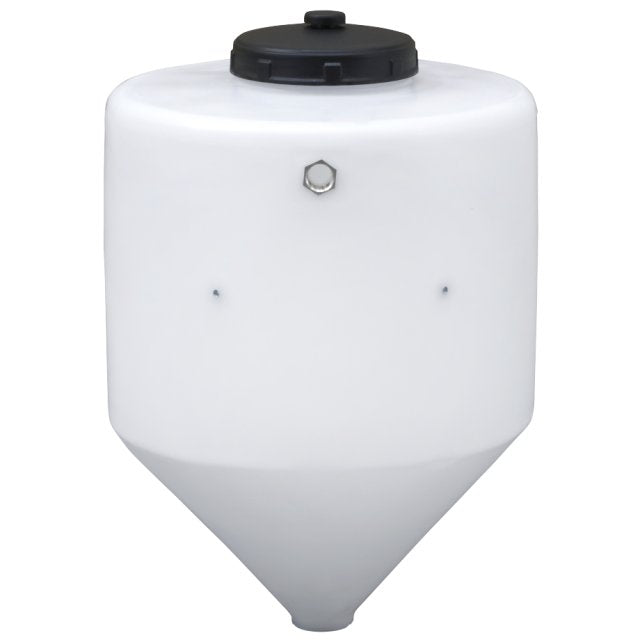

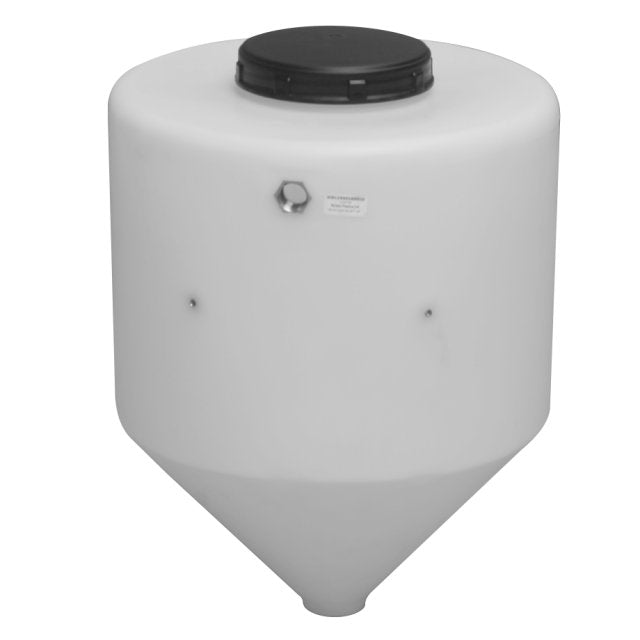

100 Litre Conical Water Tank
Product Overview
The 100 Litre Conical Water Tank is a compact, robust and versatile solution for the storage and transportation of potable water and a wide range of other compatible liquids.
Manufactured from durable MDPE / polyethylene, this conical tank provides a practical 100 litre storage capacity in a compact footprint. Its conical base makes it particularly useful for applications where efficient drainage and easy emptying are important.
The tank is manufactured in a natural translucent finish as standard, allowing the level of water inside the tank to be viewed through the tank wall. This provides a convenient way to monitor the contents without having to remove the lid.
The conical design allows liquid to naturally collect towards the bottom outlet, helping to maximise drainage and minimise residual liquid within the tank. This makes the tank particularly suitable for applications involving water storage, agricultural use, dosing, processing and general-purpose liquid storage.
The tank features 1" BSP female outlets on both the side and bottom, providing flexibility when connecting taps, hoses, pumps or other equipment. Six M8 inserts are also incorporated around the middle of the tank for suitable mounting or installation requirements
Key Features
- 100 litre nominal capacity
- Approx. 27 imperial gallons
- Compact conical tank design
- Manufactured from durable MDPE / polyethylene
- Suitable for potable water storage and transportation
- Conical base promotes efficient drainage
- Natural translucent finish allows the water level to be viewed
- Approx. 568 mm diameter
- Approx. 725 mm overall height
- Large 200 mm lid

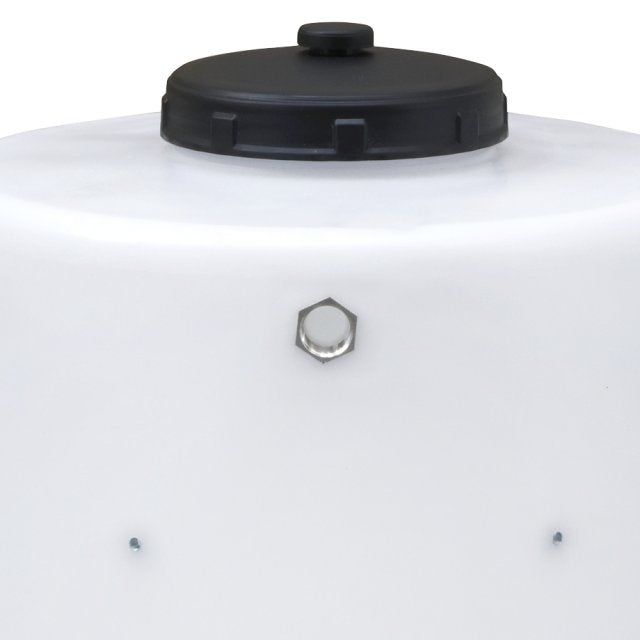

- 1" BSP female side outlet
- 1" BSP female bottom outlet
- Six M8 inserts around the middle of the tank
- Suitable for above-ground applications
- Suitable for agricultural applications
- Other colours available
- No support frame available for this tank
- Tank capacity subject to approximately ±3% manufacturing tolerance
Conical Design for Efficient Drainage
One of the key advantages of this tank is its conical base design.
Unlike a flat-bottomed tank, the sloping base directs liquid towards the lower outlet, helping the contents drain efficiently when the tank is emptied.
This design can be particularly beneficial where it is important to minimise residual liquid or make the tank easier to drain and clean.
The conical configuration can also be useful for applications involving mixing, dosing, processing or settling, depending on the liquid being stored and the overall system design.
The bottom outlet provides a direct drainage point at the lowest part of the tank, while the additional side outlet provides an alternative connection point for water distribution or associated equipment.
Potable Water Storage
The 100 Litre Conical Water Tank is specified as suitable for the storage and transportation of potable water, as well as a wide range of other compatible liquids.
The natural version is manufactured from translucent MDPE, allowing the water level to be seen through the tank.
This can be particularly useful for applications where the tank needs to be regularly checked and refilled.
Only liquids that are compatible with the tank material and selected fittings should be stored inside the tank.
For applications involving chemicals or liquids other than water, compatibility should be confirmed before use.
Mounting Inserts
The tank incorporates six M8 inserts positioned around the middle of the tank.
These inserts provide additional options for suitable mounting, securing or installation arrangements.
Where the tank is incorporated into a larger system, suitable fixings should be selected according to the installation requirements.
Any mounting system must take into account the weight of the tank when full, as well as the forces that may be generated by the stored liquid.
Applications
The 100 Litre Conical Water Tank is suitable for a variety of applications, including:
- Potable water storage
- Potable water transportation
- Agricultural applications
- Horticultural applications
- Water dosing
- Liquid processing
- General-purpose liquid storage
- Equipment reservoirs
- Water supply systems
- Temporary water storage
- Commercial applications
- Industrial applications
- Applications requiring efficient drainage
The conical design makes the tank particularly useful where efficient emptying and drainage are important.
The tank should only be used with liquids that are compatible with the MDPE / polyethylene construction and selected fittings.
| Diameter | Ø 568 mm |
|---|---|
| Height | 725 mm |
| Material | HDPE / Polyethylene |
| Application | Agricultural |
