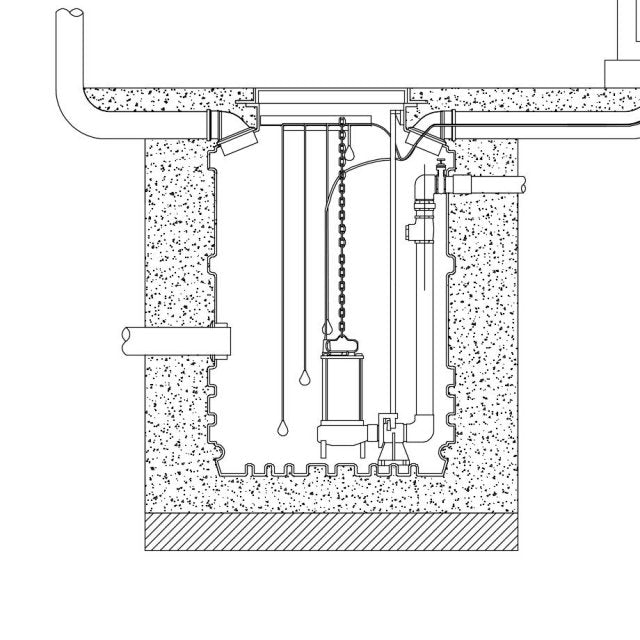

Sewage Pumping Station, Twin Pumps, 1200 litre

MINIT50VP6H1200

Install Guidance for AquaTank, Micro, Mini & Maxi Pump Stations

Sewage Pumping Station Twin Rigged - Dual Rigged - Package Sewage Pumping Station

A packaged pump station is used when gravity drainage on site cannot be achieved. The waste from the site flows into an underground storage chamber, where it is then pumped to the main sewer. Packaged pump stations can be used for both foul water (sewage) and surface water applications. Our packaged pump station systems are designed to have a 24 hour storage capacity and are manufactured to BSEN752-6 standards. The Dual Rigged  Pump Station is suitable for a domestic sewage pumping station for use in areas where gravity flow is not available. It can be used for various drainage applications, with the system also used for the transfer of sewage or waste water, all specially designed for easy installation. The Dual Rigged  is a compact sewage pump station suitable for small to large houses and also commercial applications.

The Dual Rigged is particularly suitable when water or sewage is collected lower than the main sewer or a septic tank system. All you need is supplied to you within the package, so you will just need to supply the pipework to and from the station, plus any fittings. A high water alarm is supplied as standard. The Pumping Station comes with a submersible pump with 50mm solid handling for peace of mind. Our range of pumping stations is of a superior design and quality, to meet with BSEN75.6 requirements.

Pump:

• Cast iron/stainless steel construction
• 50 mm (2") solids handling capacity
• Coolant filled motor
• Mechanical seal
• 10 M cable
• Max 6 M lift
• Max flow 5 L/sec
• Float switch as standard

Controls

• Twin control panel, c/w auto change over and high level alarm
• 4 x 10 M float controls
• 1 x float bracket

Tank:

• Polyethylene tank.
• Dim: 1.0 M2 x 1.5 M D
• Capacity 1200 L
• 1 x 110 mm / 160 mm inlet seal to allow inlet to be drilled on site.
• 40 mm cable duct.
• 2" internal pipe work
• 2" non-return valve
• 2" quick release coupling
• 2" cable duct
• Special audible/visual high level alarm control box available

Delivery

All our Sewage Pumping Station tanks are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.

If you require assistance with offloading, we may be able to offer a tail lift (lowers the tank to the ground) or HIAB (lorry with a mounted crane to winch the tank off the delivery vehicle). Please contact us if this is required for delivery.

• Product Code: DPT
• Colour: Black
• Diameter: 1000mm
• Material: MDPE
• Tank Use: Sewage

Pump Station Commissioning

Full system inspection

Levels inspection

Manway check for obstruction

Mount control panel (if not in place)

Check correct load to panel

Check correct cable size

Check correct power supply

Set the overloads

Lower pumps via guiderail onto stools using an A-frame if required

Pull pump cables through ducting

Pull float cables through ducting

Set floats to correct operating position

Wire cables into control panel

Fill system with water

Full test of pump station

Sign-off and certification

Warranty and documentation provided
