Klargester Sewage Pumping Station from 2,400 - 4,800 litres - PU12 Range

To size your pump stations they key factors to take into consideration are below

• Application: domestic, residential or commercial.
• Material application: sewage, effluent or surface water.
• Inlet depth (below ground level).
• Pumping distance and lift.
• Electrical supply.

If you require assistance with sizing your Pump station, please give our sales team a ring on 01643 703358.

Klargester Pumping Station UK Enquiry Sizing Sheet

Klargester Pumping Station GB Product Guide

Klargester Single Pumping Station Drawing - PU12 Range

Klargester Twin Pumping Station Drawing - PU12 Range

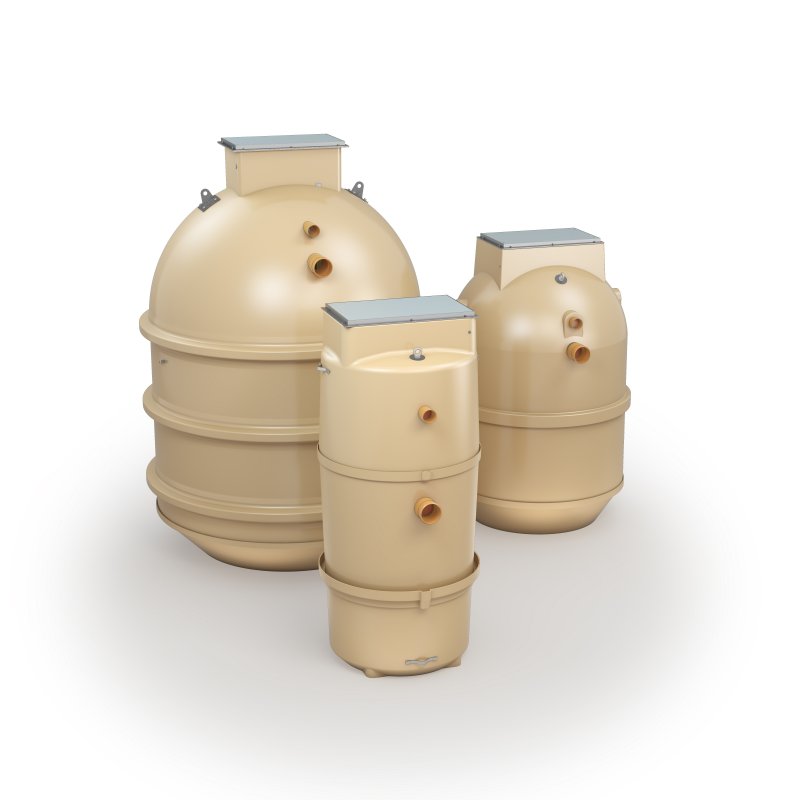

Klargester Sewage Pumping Station - PU12 Vertical Pump Station Range

Single or Twin Pump Options from 2,400 - 4,800 litres

Klargester vertical pumping stations are ideal for developments and premises where drainage by gravity is not an option.

Manufactured from robust GRP, Klargester vertical pumping stations are designed as a single piece chamber engineered with the highest quality parts and fittings.

Available in a range of sizes, suitable for commercial applications from small roof run offs, to large SUDS schemes, Klargester vertical pumping stations deliver up to 70 litres/second and have 24-hour storage capacity for foul waste to comply with Building Regulations. .

All of our pump stations can be fitted, or retrofitted, with Kingspan's SmartServ Pro remote asset monitoring software to provide you with total visibility over the wastewater system across your estate

Product Benefits

• Internal lifting chains and guide rails (as specified).
• High-level alarm.
• Wide range of single or twin pump options including macerators/vortex.
• Range of emergency overflow tanks, if required.
• Inlet connection sizes to suit site.
• Wide range of invert depths and positions to suit applications.
• GRP chambers with internal pipework in plastic, galvanised or cast iron.
• Optional single door kiosk with warning beacons and optional telemetry systems.
• Service and maintenance plans available to prolong the life of the pump systems.
• Grundfos pumps for submerged installation.

• Product Code: KLA
• Customer Offloading: Customer Offloading
• Delivery: Free Delivery
• Material: GRP
• Tank Use: Below Ground, Sewage
• Twin or Single: Single, Twin

Low Cost Commissioning

Benefits:

• Reassurance that your system's mechanical and electrical components are in good working order
• A warranty period that only starts when your water system is commissioned, not when it leaves the factory (terms and conditions apply)
• Trouble-free operation of your system from the start

To find out more about what's included in the Commissioning of your Kingspan Klargester pump station, or to arrange Commissioning, please click here for more information

Smart Commissioning – Standard commissioning as scope of works, inc supplied and fitted (at point of commissioning) Kingspan Smartserv Pro GSM telemetry alarm for complete peace of mind. Smartserv alerts both Kingspan and designated contacts.  Includes 3 years Kingspan monitoring free of charge. (T&Cs apply).

Standard Commissioning

The checks below will be carried out by a Kingspan Service Engineer and will only be checked if the unit has been installed in line with the provided installation guidelines.

• Unit is installed flat and level with safe working area around the perimeter
• All incoming and outgoing pipework has been connected
• Permanent electrical supply has been fitted to the panel (extension leads or generator supplies will not be acceptable)
• The following will then be carried out by an Authorised Service Engineer:
• Check the system is installed to manufacturer's instruction
• Fit floats in tank and set the levels
• Pull float and pump cables through the ducts using drawstring provided
• Connect pump and float cables to the control panel using appropriate glands (the panel must be within 2 m of the chamber or select “enhanced commissioning”)
• Check float cable operation and terminate (stop, start, standby, alarm)
• Check pump rotation
• Run the pumps via the float switches to ensure correct operation and discharge
• Test high level alarm and beacon (if applicable)
• Leave on Auto for future use

Please note, Kingspan Commissioning covers UK mainland and certain postcode areas only. Please speak to our Team for expert advice on Commissioning.

Service and maintenance

Your pump station should be serviced bi-annually to prevent blockages or obstructions in the inlet or outlet pipes from occurring. Any service and maintenance works need to be carried out by a properly trained professional, with appropriate experience, especially with mechanical and electrical parts. For more information on service and maintenance plans, please give our team a call on 01643 703358.
