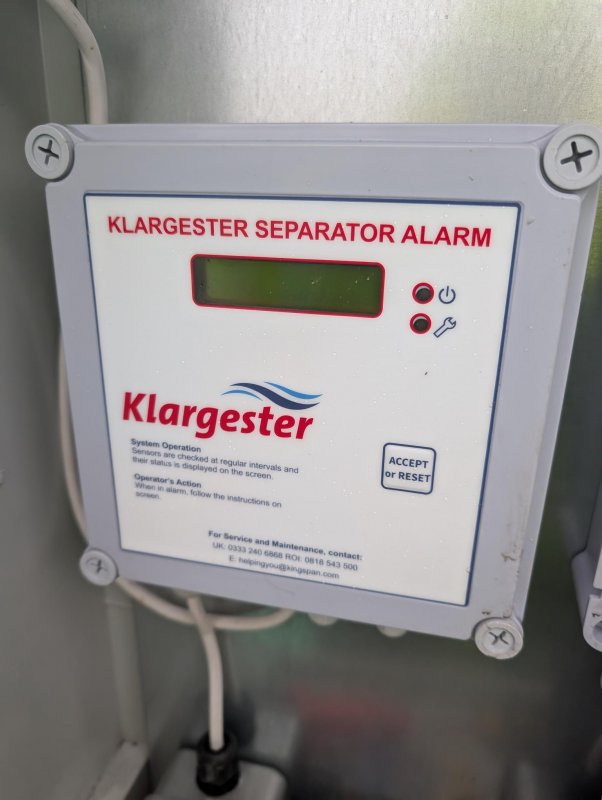

Klargester - High Oil Outdoor Alarm

Mains Powered Interceptor Alarm Manual

Kingspan - High Oil Outdoor Alarm

The Kingspan separator Oil alarm is powered by mains & is supplied with a control unit and a Conductivity probe.

You can monitor up to 3 probe units, and the outlet relay enables the status of each unit to be signalled to a remote location of your choosing. The alarm can be installed up to 300m from the control panel (Cabling will need to be purchased separately)

WHAT'S IN THE BOX:

• Control Panel (230v)
• Probe with 5m fly lead

FEATURES AND BENEFITS:

• Receive warnings of Oil within the separator
• Reduces site waste-management costs and ongoing servicing costs
• Complies with EN858-1&2 and PPG3
• Can be fitted to separators from all manufacturers

SPECIFICATION:

• Mains Powered: 230AC
• IP65 ABS Enclosure: 180 x 180 x 60mm
• Output: Clean Contact Relay
• Display: Liquid Crystal
• Alarm: Audible (Local)
• Probe Range: 200 metres max. (Dependent on cable style)
• Atex approved: Baseefa 08ATEX0110/1
• Specific Marking of Explosion Protection: EX II (1) G [Ex ia Ga] IIC (-2°C ≤ Ta ≤ +50°C)

       Compatible probe types:

• High Oil: Conductivity or specific gravity
• High Liquid: Optical or float switch
• Silt: Optical
