500 litre - Klargester Grease Separator NSG01



Product Ref: NSG01

Free Delivery HIAB Available GRP Below Ground
  • Volume: 500ltr
  • Weight: 70.000kg
  • Dimensions: L:1300mm W:700mm
  • Home Delivery

    UK mainland delivery from FREE ex VAT

    check delivery cost

    Choose option:

    updown

    Product Description

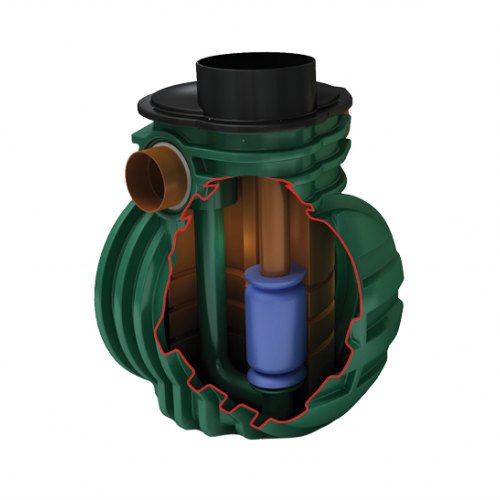

    Klargester Grease Separator - NSG01 500 litre capacity

    Klargester Grease Separators are an effective and hygienic method of separating fat and grease from wastewater flow.

    Grease Separators are designed for catering applications and suitable for use in:

    • Restaurants
    • Hotels
    • Public houses
    • Canteens

    Key Features

    • Range capacities from 500 - 11000 litres and flow rates of 1 - 24 litres/sec.
    • Greatly reduces drain blockages.
    • Improves performance of septic tanks and field drains
    • Prevents contamination of small sewage treatment plants.
    • Protects mains drainage system from grease blockages.

    Technical Specification

    Separator Model

    Flow rate (l/s)

    Tank length (mm)

    Capacity (L)

    Shipping Height (mm)

    Fall Across The Unit (mm)

    NSG01

    1

    1320

    500

    1100

    75



    How it works

    Grease separators allow fats and grease to naturally separate out from water, allowing their removal prior to the wastewater reaching the drainage system. The separator should be installed close to the source of contamination before any foul waste can enter the drainage flow and to suit the expected liquid temperature.

    Grease Range Sizing Table

    Meals Per Day

    Standard Meals

    Fast Food

    Fine Cuisine

    40

    NSG01

    NSG01

    NSG02

    60

    NSG02

    NSG02

    NSG02

    80

    NSG02

    NSG02

    NSG04

    100

    NSG02

    NSG04

    NSG04

    200

    NSG04

    NSG06

    NSG09

    300

    NSG06

    NSG09

    NSG14

    500

    NSG09

    NSG14

    NSG18

    700

    NSG14

    NSG18

    NSG24

    900

    NSG18

    NSG24

    -

    1,300

    NSG24

    -

    -



    The optional GA-1 Grease Monitor Alarm measures the thickness of grease buildup within the separator.

    Really easy to install, has remote monitoring features, supports all kind of grease separators.

    Product contains a GA-1 Control Unit-GA-SG1 Sensor-Cable Joint

    Complying: EN 1825 & DIN 4040 norms



    Product Details

    • Product Code: KLA
    • Delivery: Free Delivery
    • HIAB Available: HIAB Available
    • Material: GRP
    • Tank Use: Below Ground
