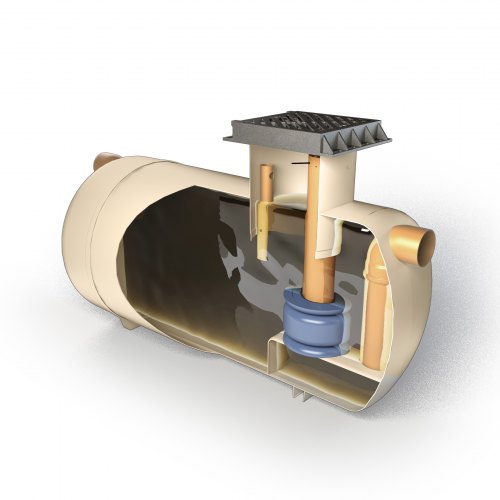

2350 Litre Klargester AquaHarvest - Direct System

Klargester AquaHarvest Domestic Direct RWH Systems Installation Guidelines

Klargester AquaHarvest Domestic GRW080 - Drawing - 2350L

Klargester AquaHarvest Domestic RWH Direct Pictorial

Klargester AquaHarvest Data Sheet

Klargester Benefits of Commissioning Services

Klargester AquaHarvest Domestic Rainwater Harvesting Solution - Roof Area <80m2.

The AquaHarvest rainwater solution is a Direct System suitable for domestic applications.

This system is used where it is impractical to have a header tank, for example in homes that have converted attic spaces and less room.

Therefore, filtered rainwater is pumped direct from the holding tank to the various appliances.

Why choose a Klargester AquaHarvest Domestic Rainwater Harvesting solution?

• Suitable for shallow dig applications

• Fully compliant against EN 16941-1:2018 standard (supersedes EN 8515) for peace of mind

• Easy to read display panel included as standard, with early fault warnings and water supply status built in

• Features intelligent pump for total reliability

• Smart design featuring a calmed inlet at the bottom of the tank to prevent disturbance of any material at surface level.

AquaHarvest Domestic Rainwater Harvesting Range

How it works

Rainwater directed to the system is firstly filtered by an in line leaf filter, before further filtering on the pump inlet. Final fine filtration is catered for by the inline filter supplied as part of the kit. The ‘intelligent’ pump has the necessary sensors to allow automatic operation when demand is called for by drop of pressure in the system. If the storage tank has a low level of rainwater, there is a small automatic charge of mains water into the tank to ensure the system never runs dry. The main advantage of this system is that rainwater is delivered to the appliances at mains pressure or higher.

Typical Applications

• WC and Urinal Flushing
• Irrigation and Landscape Watering
• Garden Watering
• Vehicle Washing
• Domestic Laundry

DO YOU REQUIRE COMMISSIONING?

To ensure your system operates to maximum efficiency, we recommend tried and tested Commissioning by our own British Water and Safe Building trained engineers.
Our unrivalled knowledge means that we are best placed to carry out bespoke assessments to get your system up and running. The commissioning will also provide you with a unique checklist against your system, ensuring your complete peace of mind and reassurance that your system's mechanical and electrical components are in good working order.

Service/maintenance packages are available at separate cost on request.

To help you select the correct SuDS solution to meet your requirements, please get in touch directly to speak with our technical experts.

• Product Code: KLA
• Free Site Survey: Free Site Survey
• Material: MDPE
