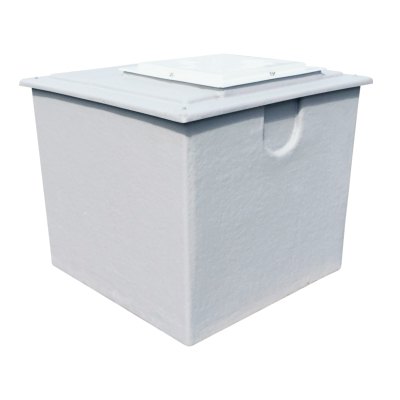

1220 Litre GRP Water Tank, Insulated, Stock tank

GRP Connection Fitting Instructions

1220 Ltr GRP Water Tank - Insulated (25mm) Full WRAS approval.

Please note this tank is supplied with the following -

- 25mm Insulation

- Standard position pads

If a baseboard, drip tray, or support stand is required, please use the following code - PW1220-1. The linked tank is a bespoke tank so will be made to order.

Manufactured to meet BS7491 Parts 1 and 2, using the highest quality GRP materials, ensuring a long service life with minimal maintenance requirements. Grey colour as standard (other RAL or BS colours are available at additional cost). Only materials of the highest quality are used along with a highly efficient manufacturing process. This combination ensures that these tanks are of the highest quality available.



All internal surfaces, including the lid, have an Isophthalic white gelcoat layer which provides a clinically smooth surface which will not support the growth of microbiological organisms. This gelcoat layer is reinforced by the main GRP laminate which provides the main structure of the tank body. The materials used are of the highest quality and applied with exacting production standards to assist in the prevention of osmotic blistering. After the CFC-free PU foam insulation is fitted, the GRP outer skin is then applied. This ensures that the insulation is fully encapsulated and protected from external conditions.



Where access is a limiting factor and our one-piece GRP tanks are unsuitable a two-piece tank could do the trick. These tanks are manufactured in two or more horizontally split sections which are then assembled once the restriction has passed. In a nutshell and a one-piece tank in two or more bolt-together sections. All of the components including sealant and fixings for the joint flange are supplied with the tank. The assembly of this range of products could not be easier and should not prove difficult for any competent mechanical services engineer.

Nominal capacity shown

Nominal capacity = full capacity to top of the tank

Actual capacity = float level

Please note: valves and fittings are supplied loose (items can be fitted to the tank for an additional fee).

The Encapsulated Baseboard will come moulded into the internal base of the tank to become part of the tank construction and overall strength of the base. This will benefit the tank if it's on uneven surfaces or positioned raise supports. It will not come supplied as a separate item

The tank is supplied with 2 low-level connection pads, on the opposite end of the inlet.

Delivery

All our GRP tanks are for delivery by customer offload. This entails the customer acquiring the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.

If you require assistance with offloading, we may be able to offer a tail lift (lowers the tank to the ground) or HIAB (lorry with a mounted crane to winch the tank off the delivery vehicle). Please contact us if this is required for delivery.

Does your water tank need a clean?

Water can pose a number of risks if not maintained correctly, with this in mind we can offer the below service for your GRP tanks.



Annual Disinfection Information and Options

• Designed for easy installation, saving time and money


• We can offer monthly, yearly and fixed-priced packages ranging from 1-3 years


• All work is carried out by CSCS-qualified engineers


• Tank upgrade works available, bringing the old tanks up to current regulations


• Full tank replacement works are available


• Legionella risk assessments including schematic drawings if required


• Microbiology analysis - water sampling via UKAS-approved laboratories


• Building flush and mains injection


• Commissioning of booster sets


• Servicing of water softeners and booster sets


• Replacement of hollow roof struts.


• Insulating of existing cold water storage tanks

For more information regarding the annual disinfection, visit our GRP commissioning page now

• Product Code: PW
• Customer Offloading: Customer Offloading
• Material: GRP
• Potable: Potable
• Shape: Square
• Stock tank: Non Returnable Product, Stock tank
• Tank Use: Above Ground
• WRAS: Yes
• WRAS Approved: Yes
