1190 Litre Foul Water - Packaged Single Pump Station - Mini 850 Series

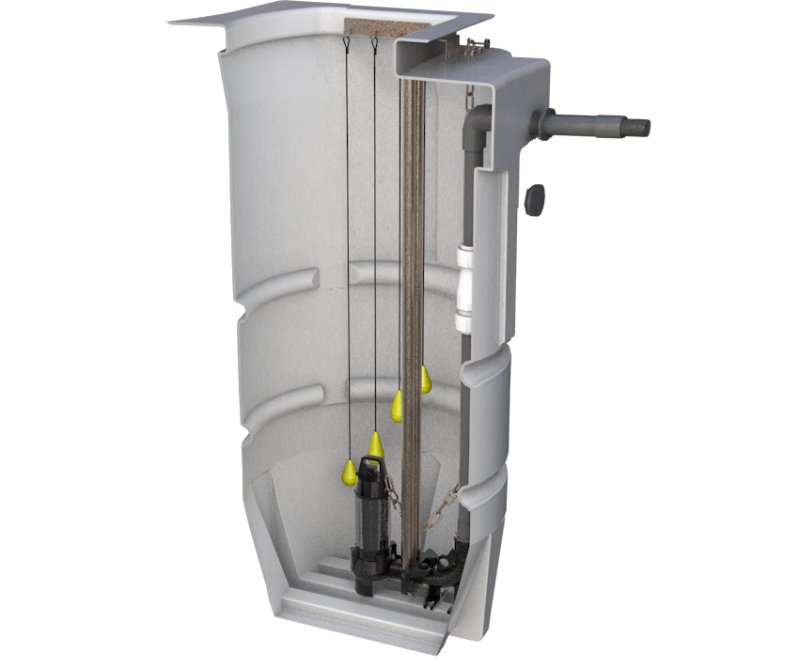

The Mini 850 Range of package pump stations are designed to collect foul water from an entire property or other buildings which houses multiple people, such as commercial offices and other light commercial applications.

The Mini 850 Range of pump stations have been designed to ensure an easy and trouble free installation and is manufactured in high-grade HDPE. The Mini Range of pump stations are delivered to site as a complete package, including all internal pipework and a sewage pump.

This system also comes with guide rail and pedestal kit for easy pump access. The station is designed to pump through a 63 mm pump main, as the chamber’s outlet terminates in a 2” male BSP thread.

The Mini 850 Range of package pump stations allow for one or two 110 mm inlet (to be drilled on-site) to enable a quick and easy installation.

The stations come in a single and twin pump arrangement.

Delivery

All our Sewage Pumping Stations are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.

If you require assistance with offloading, we may be able to offer a tail lift (lowers the tank to the ground) or HIAB (lorry with a mounted crane to winch the tank off the delivery vehicle). Please contact us if this is required for delivery.

• Product Code: DPT
• Colour: Black
• Delivery: Fast Delivery
• Diameter: 850mm
• Material: HDPE (High density polyethylene)
• Shape: Round
• Stock tank: Stock tank
• Tank Use: Below Ground
• Twin or Single: Single

Pump Station Commissioning

Full system inspection

Levels inspection

Manway check for obstruction

Mount control panel (if not in place)

Check correct load to panel

Check correct cable size

Check correct power supply

Set the overloads

Lower pumps via guiderail onto stools using an A-frame if required

Pull pump cables through ducting

Pull float cables through ducting

Set floats to correct operating position

Wire cables into control panel

Fill system with water

Full test of pump station

Sign-off and certification

Warranty and documentation provided
