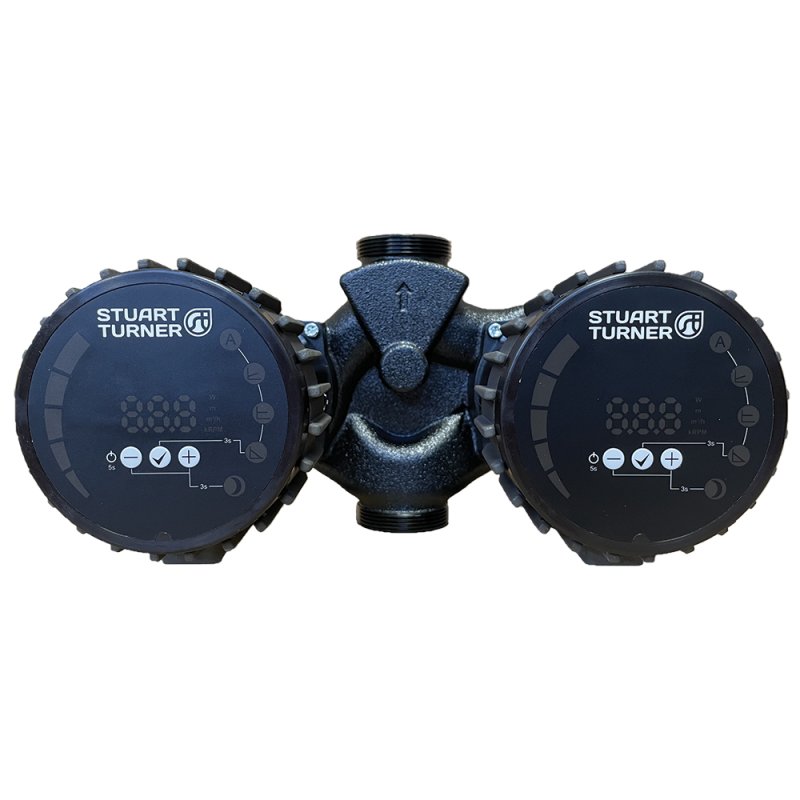

Stuart Turner Pulse Cast Iron Twin D 32/40-180

Stuart Pulse Twin Data Sheet

Stuart Pulse Installation Guide

Stuart Turner Pulse Cast Iron Twin D 32/40-180

Electronically controlled high-efficiency circulators for heating, air-conditioning, cooling and sanitary water.

Stuart Pulse Circulators are used for the transfer of liquid medium within systems for hot water heating, air-conditioning and ventilation.

These single head variable speed circulators are designed to constantly monitor and regulate pressure and flow and adjust according to the set operating mode.

Features:

• Automatic, proportional pressure, constant pressure and constant speed operating modes
• Automatic night operation mode
• ECM permanent magnet technology
• Automatic venting cycle
• Robust cast iron housing
• Continuously rated
• Carbon bearings
• 180 mm fitted length
• G2 union connections
• ErP compliant
• Built-in over-current, temperature and over-voltage protection
• LED display control panel
• 2-year warranty

Applicatiions

• Hot-water heating systems
• Air conditioning and ventilation systems

Digital operating modes

Automatic Mode

Pump automatically sets the operating pressure, depending on the hydraulic system. By doing so, the pump finds its optimal operating position

Proportional Pressure

Pump maintains the pressure with relation to the current flow. The pressure is equal to the set pressure. In between, the pressure changes linearly relative to the flow.

Constant Pressure

Pump maintains the set pressure, from 0 flow to maximum power, where the pressure begins to drop.

Constant Speed

The pump operates and maintains the chosen speed

Night Mode

When operating in night mode, the pump automatically switches between the current mode and night mode. Switching occurs based on the temperature of the medium. If the pump sense a drop in temperature of the medium (15-20° C - in a 2-hour time frame) the pump switches to night mode. When the temperature of the medium rises, it will revert to previous operating modes.
